FMZ1300 FM-Transmitter Schematics - FCC ID S6XFMZ1300

FCC ID S6XFMZ1300

Schematics

FM-Transmitter

by Zonoki Electronics Manufacturer Co., Ltd

Document preview loads when visible.

Document Details

FCC IDS6XFMZ1300
Document ID731981
Document TypeSchematics
DescriptionSchematics

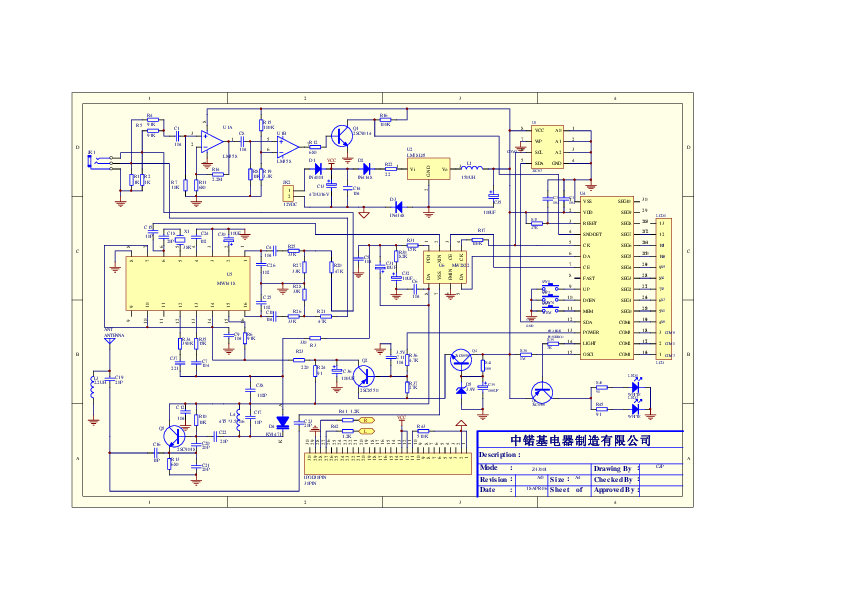

Document TitleZ-1300I SCHMATIC
ApplicantZonoki Electronics Manufacturer Co., Ltd
Equipment ClassFM-Transmitter
Product CodeFMZ1300
Application IDUtl/HrLyNjnmyecUfSDRgA==
Application PurposeOriginal Equipment
Application Date2006-12-01
Frequency Range88.1-107.9 MHz
FRN0013222971
Test FirmAccurate Technology Co., Ltd.
Certified BySean Liu Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-11-27
Available2006-12-01
Created2006-09-26
Modified2006-09-26
Pages1
File TypeAdobe Acrobat PDF
File Size56868
File SHA-2568c5bee4a81287d0d47de21d94772f2d2605a4e7d8da02bdd7c5a158712d73ff2
PDF Metadata Authorliuxiang
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows) liuxiang
FCC.gov SourcesFCC.gov 731981
