JS109HR2 RF Wireless Controller (Receiver... - FCC ID SGFJS109HR2

FCC ID SGFJS109HR2

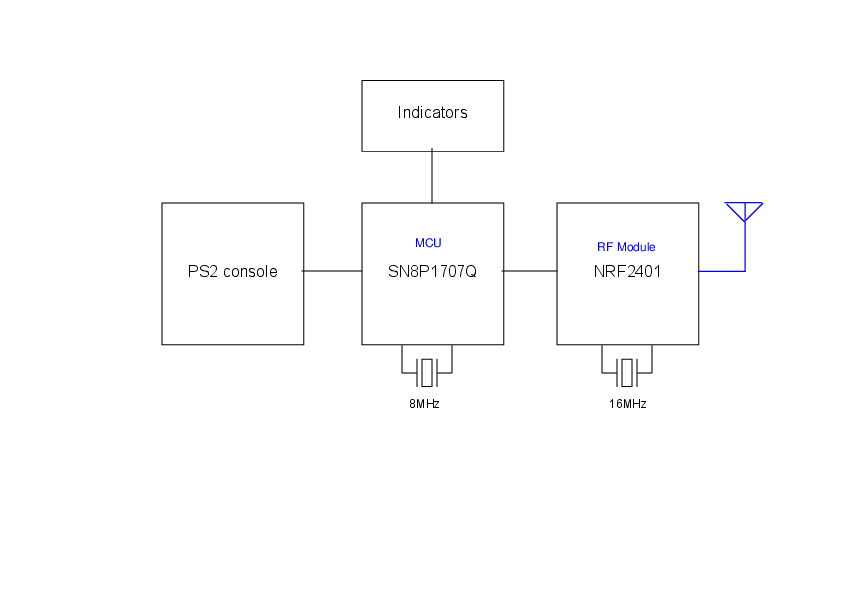

Block Diagram

RF Wireless Controller (Receiver Part)

by Techcorp Limited

Document preview loads when visible.

Document Details

FCC IDSGFJS109HR2
Document ID492766
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantTechcorp Limited
Equipment ClassRF Wireless Controller (Receiver Part)
Product CodeJS109HR2
Application IDI6Fq9HEEYHJTNzMOPlKFAQ==
Application PurposeOriginal Equipment
Application Date2004-11-30
Frequency Range2414-2474 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByDerek Leung Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2004-11-30
Available2004-11-30
Created2004-10-23
Modified2004-10-29
Pages1
File TypeAdobe Acrobat PDF
File Size45706
File SHA-256652e4d79b733cb407b67a7020ec8f91eafeeccb85f999ee21c64673bc85e9dec
PDF Metadata AuthorBen Ho x505
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows) Ben Ho x505
FCC.gov SourcesFCC.gov 492766
