JS109HR2 RF Wireless Controller (Receiver... - FCC ID SGFJS109HR2

FCC ID SGFJS109HR2

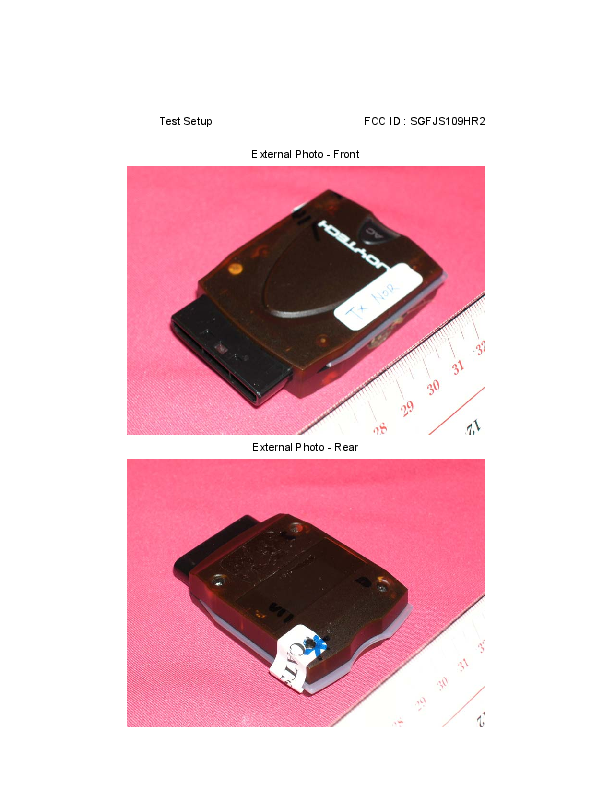

External Photos

RF Wireless Controller (Receiver Part)

by Techcorp Limited

Document preview loads when visible.

Document Details

FCC IDSGFJS109HR2
Document ID492763
Document TypeExternal Photos
DescriptionExternal Photos
Document Title492763.DOC
ApplicantTechcorp Limited
Equipment ClassRF Wireless Controller (Receiver Part)
Product CodeJS109HR2
Application IDI6Fq9HEEYHJTNzMOPlKFAQ==
Application PurposeOriginal Equipment
Application Date2004-11-30
Frequency Range2414-2474 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByDerek Leung Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2004-11-30
Available2004-11-30
Created2004-12-01
Modified2004-12-01
Pages1
File TypeMicrosoft Word
File Size856065
File SHA-256cfd7b6a22cfb266a4531cf9f0f6c75081cf98df8dc2eff7ee906b4486fe92244
PDF Metadata AuthorAdministrator
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows) Administrator
FCC.gov SourcesFCC.gov 492763
