FCC ID TK4WLM200NX
WIRELESS-N NETWORK MINI PCI ADAPTER
by Compex Systems Pte Ltd
Grantee Code: TK4 Product Code: WLM200NX
Latest application date: 2016-11-21
Device Images
FCC ID Device Details
| FCC ID | TK4WLM200NX |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | TK4 |
| Product Code | WLM200NX |
| Applicant Business | Compex Systems Pte Ltd 🇸🇬 |
| Related Domains |  compex.com.sg |
| Equipment Class | WIRELESS-N NETWORK MINI PCI ADAPTER |
| Test Firm | MRT Technology (Suzhou) Co., Ltd |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-11-21 |
| 2412-2462 MHz | Original Equipment | 2016-09-07 |
| 5745-5825 MHz | Original Equipment | 2016-09-07 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| WLM200NX_User Manual | Users Manual | 2016-09-07 | PDF 245.6 KB |
| 1608RSU011_Internal Photo | Internal Photos | 2016-09-07 | PDF 253 KB |
| 1608RSU011_External Photo | External Photos | 2016-09-07 | PDF 473.3 KB |
| WLM200NX_Label Location and Label | ID Label/Location Info | 2016-09-07 | PDF 309.1 KB |

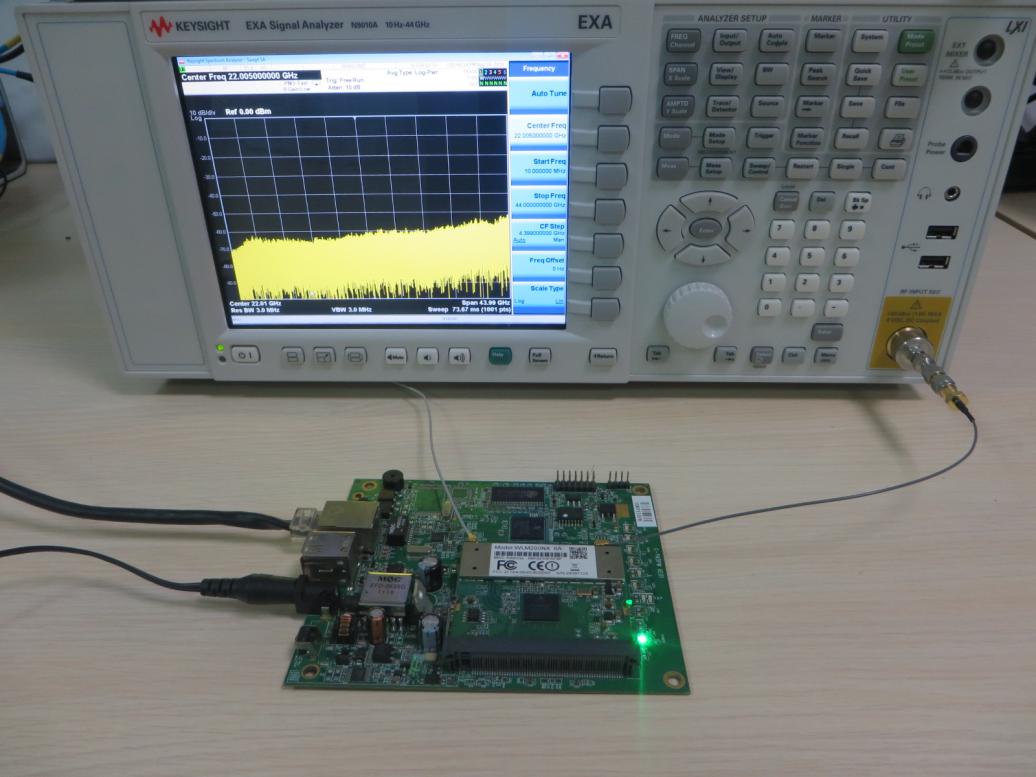

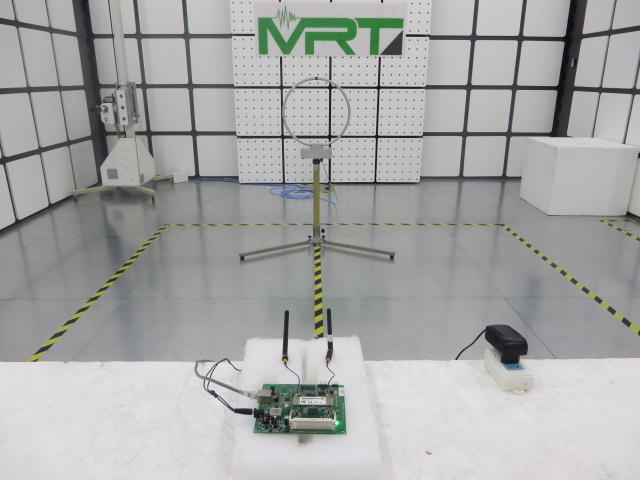

| Test Setup Photos | Test Setup Photos | 2016-11-21 | PDF 722.8 KB |
| 1608RSU011_Test Setup Photo | Test Setup Photos | 2016-09-07 | PDF 712.9 KB |
| Test Report | Test Report | 2016-11-21 | PDF 4.3 MB |
| 1608RSU01101-FCC DTS Test Report (WiFi) Part1 | Test Report | 2016-09-07 | PDF 5.3 MB |
| 1608RSU01101-FCC DTS Test Report (WiFi) Part2 | Test Report | 2016-09-07 | PDF 5.6 MB |
| 1608RSU01101-FCC DTS Test Report (WiFi) Part3 | Test Report | 2016-09-07 | PDF 4.6 MB |
| 1608RSU01102-FCC-UNII Test Report (WiFi) Part1 | Test Report | 2016-09-07 | PDF 5 MB |
| 1608RSU01102-FCC-UNII Test Report (WiFi) Part2 | Test Report | 2016-09-07 | PDF 2.7 MB |
| WLM200NX_FCC 15B Attestation | Cover Letter(s) | 2016-09-07 | PDF 13.6 KB |
| Authorization Letter | Cover Letter(s) | 2016-11-21 | PDF 13.7 KB |
| C2PC Letter | Cover Letter(s) | 2016-11-21 | PDF 20.8 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-11-21 | PDF 110.5 KB |
| WLM200NX_Declaration of authorization | Cover Letter(s) | 2016-09-07 | PDF 825 KB |
| WLM200NX_FCC Confidentiality Letter | Cover Letter(s) | 2016-09-07 | PDF 825 KB |
| WLM200NX_Module approval cover letter | Cover Letter(s) | 2016-09-07 | PDF 293.4 KB |
| RF Exposure | RF Exposure Info | 2016-11-21 | PDF 212.1 KB |
| 1608RSU01103-RF Exposure Report | RF Exposure Info | 2016-09-07 | PDF 211.4 KB |
| Confidential_WLM200NX_Block Diagram Metadata only | Block Diagram | PDF 22.2 KB | |
| Confidential_WLM200NX_Schematic Metadata only | Schematics | PDF 63.2 KB | |
| Confidential_WLM200NX_Operation Description Metadata only | Operational Description | PDF 500.2 KB | |
| Dipole Antenna Metadata only | Operational Description | PDF 4.6 MB | |
| PCB Antenna Metadata only | Operational Description | PDF 314.5 KB | |
| WLM200NX_Operation Description Metadata only | Operational Description | PDF 1 MB |
Application Information
| Application ID | R6qCQ4ijXc8jFW9Yw1VmXw== |
|---|---|
| Final Action Date | 2016-11-21 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0013908165 |
| Model | WLM200NX |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | WIRELESS-N NETWORK MINI PCI ADAPTER |
| Responsible Party | Yaw Thiam Teng, R&D; Software Manager, tt_yaw@compex.com.sg , (65)62862086 |
| Agent | Robin Robin Robin, MRT Technology, +86-512-6630835 |
| Test Firm | Wu Jian, MRT Technology (Suzhou) Co., Ltd, robinwu@mrt-cert.com  , 86-512-66308358 |
| TCB Email | c.schmidt@emcc.de  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power Output listed is conducted. Device is a 802.11 an device in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 MHz and 40 MHz bandwidth modes. |
