FMAPR4400 WIFI+BT Module Label Diagram - FCC ID XQW-FMAPR4400
FCC ID XQW-FMAPR4400

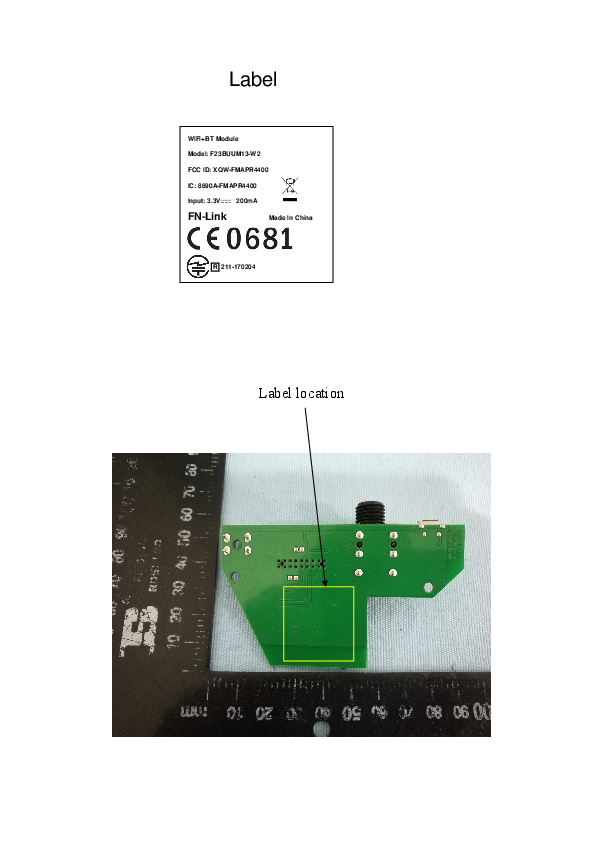

06-07_F23BUUM13-W2 LabelSmpl-Loc
WIFI+BT Module
Document preview loads when visible.
Document Details
| FCC ID | XQW-FMAPR4400 |
|---|---|
| Document ID | 3304721 |
| Document Type | ID Label/Location Info |
| Description | 06-07_F23BUUM13-W2 LabelSmpl-Loc |
| Document Title | 欧智通 |
| Applicant | Fender Musical Instruments |
| Equipment Class | WIFI+BT Module |
| Product Code | FMAPR4400 |
| Application ID | l0euzRDWH+sipwyhdO4MJQ== |
| Application Purpose | Original Equipment |
| Application Date | 2017-03-06 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0002963429 |
| Test Firm | Dongguan NTC Co.,Ltd., |
| Certified By | Joerg Kusig Head of Certification |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Limited Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2017-03-06 |
| Available | 2017-03-06 |
| Created | 2017-02-20 |
| Modified | 2017-03-03 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 963328 |
| File SHA-256 | 5126e8a3907339b45ea81df3e2453fe8ed87c61a0bbb07e6cc8c174d71b29aa0 |
| PDF Metadata Author | Administrator |
| PDF Metadata Producer | Administrator Acrobat Distiller 9.3.3 (Windows) |
| FCC.gov Sources | FCC.gov 3304721, FCC.gov 3304706 |
