EDF32 Active Monitor Speaker Schematics - FCC ID Z9G-EDF32
FCC ID Z9G-EDF32

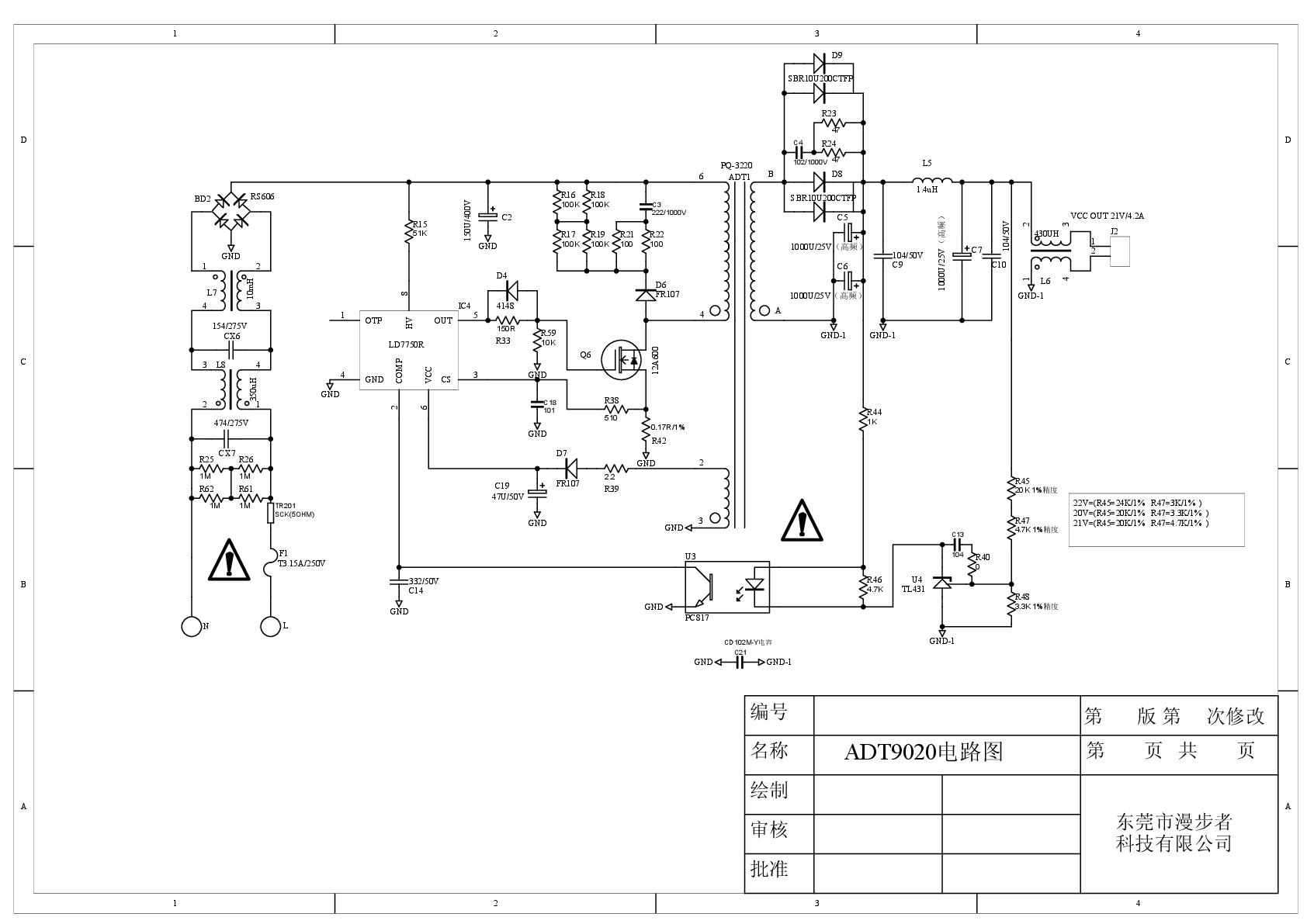

Schematics - power part
Active Monitor Speaker
Document preview loads when visible.
Document Details
| FCC ID | Z9G-EDF32 |
|---|---|
| Document ID | 3143089 |
| Document Type | Schematics |
| Description | Schematics - power part |
| Applicant | Edifier International Limited |
| Equipment Class | Active Monitor Speaker |
| Product Code | EDF32 |
| Application ID | 9TJZ/mqKTzH8dPJYUkQ+fQ== |
| Application Purpose | Original Equipment |
| Application Date | 2016-09-22 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0021277140 |
| Test Firm | Accurate Technology Co., Ltd. |
| Certified By | Dingkun Shen |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2016-09-22 |
| Available | 2016-09-22 |
| Created | 2016-04-25 |
| Modified | 2016-04-25 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 80911 |
| File SHA-256 | 75fe80ffcd481de73a34580eee45ab92b89a2b01957478c3d4dd26e2d99d4b7b |
| PDF Metadata Producer | Foxit Reader PDF Printer Version 7.1.0.112 |
| FCC.gov Sources | FCC.gov 3143089, FCC.gov 3143076 |
