Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20

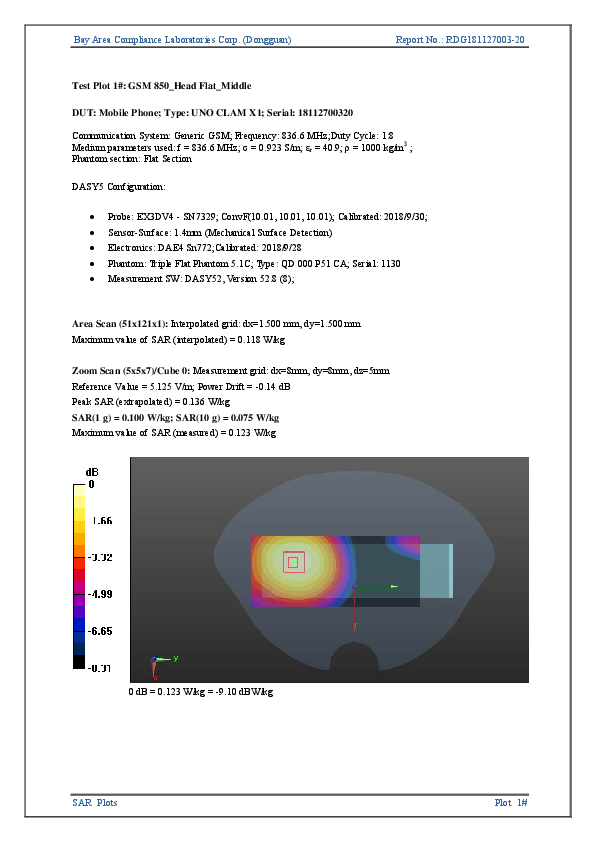

Test Plot 1#: GSM 850_Head Flat_Middle
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8
Medium parameters used: f = 836.6 MHz; σ = 0.923 S/m; εr = 40.9; ρ = 1000 kg/m3 ;
Phantom section: Flat Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(10.01, 10.01, 10.01); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (51x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.118 W/kg
Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 5.125 V/m; Power Drift = -0.14 dB
Peak SAR (extrapolated) = 0.136 W/kg
SAR(1 g) = 0.100 W/kg; SAR(10 g) = 0.075 W/kg
Maximum value of SAR (measured) = 0.123 W/kg
0 dB = 0.123 W/kg = -9.10 dBW/kg
SAR Plots
Plot 1#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 2#: GSM 850_Body Worn Back_Low
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8
Medium parameters used: f = 824.2 MHz; σ = 0.979 S/m; εr = 55.351; ρ = 1000 kg/m3 ;
Phantom section: Right Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(10.23, 10.23, 10.23); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (91x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.66 W/kg
Zoom Scan (8x7x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 32.95 V/m; Power Drift = 0.05 dB
Peak SAR (extrapolated) = 1.87 W/kg
SAR(1 g) = 1.03 W/kg; SAR(10 g) = 0.716 W/kg
Maximum value of SAR (measured) = 1.47 W/kg
0 dB = 1.47 W/kg = 1.67 dBW/kg
SAR Plots
Plot 2#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 3#: GSM 850_Body Worn Back_Middle
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8
Medium parameters used: f = 836.6 MHz; σ = 0.997 S/m; εr = 55.82; ρ = 1000 kg/m3 ;
Phantom section: Right Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(10.23, 10.23, 10.23); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (91x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.65 W/kg
Zoom Scan (8x7x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 30.88 V/m; Power Drift = 0.09 dB
Peak SAR (extrapolated) = 1.81 W/kg
SAR(1 g) = 0.924 W/kg; SAR(10 g) = 0.643 W/kg
Maximum value of SAR (measured) = 1.40 W/kg
0 dB = 1.40 W/kg = 1.46 dBW/kg
SAR Plots
Plot 3#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 4#: GSM 850_Body Worn Back_High
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8
Medium parameters used: f = 848.8 MHz; σ = 0.989 S/m; εr = 55.707; ρ = 1000 kg/m3 ;
Phantom section: Right Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(10.23, 10.23, 10.23); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (91x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.53 W/kg
Zoom Scan (8x7x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 29.40 V/m; Power Drift = 0.02 dB
Peak SAR (extrapolated) = 1.69 W/kg
SAR(1 g) = 0.836 W/kg; SAR(10 g) = 0.580 W/kg
Maximum value of SAR (measured) = 1.32 W/kg
0 dB = 1.32 W/kg = 1.21 dBW/kg
SAR Plots
Plot 4#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 5#: GSM 850_Body Back_Middle
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GPRS-3 slots; Frequency: 836.6 MHz;Duty Cycle: 1:2.66
Medium parameters used: f = 836.6 MHz; σ = 0.997 S/m; εr = 55.82; ρ = 1000 kg/m3 ;
Phantom section: Right Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(10.23, 10.23, 10.23); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (121x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.41 W/kg
Zoom Scan (8x7x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 9.338 V/m; Power Drift = -0.01 dB
Peak SAR (extrapolated) = 1.50 W/kg
SAR(1 g) = 0.728 W/kg; SAR(10 g) = 0.494 W/kg
Maximum value of SAR (measured) = 1.09 W/kg
0 dB = 1.09 W/kg = 0.37 dBW/kg
SAR Plots
Plot 5#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 6#: GSM 850_Body Bottom_Middle
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GPRS-3 slots; Frequency: 836.6 MHz;Duty Cycle: 1:2.66
Medium parameters used: f = 836.6 MHz; σ = 0.997 S/m; εr = 55.82; ρ = 1000 kg/m3 ;
Phantom section: Right Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(10.23, 10.23, 10.23); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (41x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.387 W/kg
Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 12.80 V/m; Power Drift = -0.18 dB
Peak SAR (extrapolated) = 0.572 W/kg
SAR(1 g) = 0.262 W/kg; SAR(10 g) = 0.140 W/kg
Maximum value of SAR (measured) = 0.453 W/kg
0 dB = 0.453 W/kg = -3.44 dBW/kg
SAR Plots
Plot 6#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 7#: GSM 1900_Head Flat_Middle
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GSM; Frequency: 1880 MHz;Duty Cycle: 1:8
Medium parameters used: f = 1880 MHz; σ = 1.395 S/m; εr = 38.996; ρ = 1000 kg/m3 ;
Phantom section: Flat Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(8.1, 8.1, 8.1); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (51x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.0711 W/kg
Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 3.741 V/m; Power Drift = 0.00 dB
Peak SAR (extrapolated) = 0.0830 W/kg
SAR(1 g) = 0.051 W/kg; SAR(10 g) = 0.033 W/kg
Maximum value of SAR (measured) = 0.0717 W/kg
0 dB = 0.0717 W/kg = -11.44 dBW/kg
SAR Plots
Plot 7#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 8#: GSM 1900_Body Worn Back_Low
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GSM; Frequency: 1850.2 MHz;Duty Cycle: 1:8
Medium parameters used: f = 1850.2 MHz; σ = 1.485 S/m; εr = 53.136; ρ = 1000 kg/m3 ;
Phantom section: Left Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(7.7, 7.7, 7.7); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (91x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.74 W/kg
Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 12.81 V/m; Power Drift = -0.14 dB
Peak SAR (extrapolated) = 2.18 W/kg
SAR(1 g) = 1.16 W/kg; SAR(10 g) = 0.629 W/kg
Maximum value of SAR (measured) = 1.81 W/kg
0 dB = 1.81 W/kg = 2.58 dBW/kg
SAR Plots
Plot 8#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 9#: GSM 1900_Body Worn Back_Middle
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GSM; Frequency: 1880 MHz;Duty Cycle: 1:8
Medium parameters used: f = 1880 MHz; σ = 1.511 S/m; εr = 52.624; ρ = 1000 kg/m3 ;
Phantom section: Left Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(7.7, 7.7, 7.7); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (91x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.76 W/kg
Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 12.27 V/m; Power Drift = 0.02 dB
Peak SAR (extrapolated) = 2.10 W/kg
SAR(1 g) = 1.13 W/kg; SAR(10 g) = 0.614 W/kg
Maximum value of SAR (measured) = 1.71 W/kg
0 dB = 1.71 W/kg = 2.33 dBW/kg
SAR Plots
Plot 9#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 10#: GSM 1900_Body Worn Back_High
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GSM; Frequency: 1909.8 MHz;Duty Cycle: 1:8
Medium parameters used: f = 1909.8 MHz; σ = 1.539 S/m; εr = 52.66; ρ = 1000 kg/m3 ;
Phantom section: Left Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(7.7, 7.7, 7.7); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (91x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.71 W/kg
Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 12.44 V/m; Power Drift = -0.09 dB
Peak SAR (extrapolated) = 2.17 W/kg
SAR(1 g) = 1.14 W/kg; SAR(10 g) = 0.623 W/kg
Maximum value of SAR (measured) = 1.80 W/kg
0 dB = 1.80 W/kg = 2.55 dBW/kg
SAR Plots
Plot 10#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 11#: GSM 1900_Body Back_Low
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GPRS-3 slots; Frequency: 1850.2 MHz;Duty Cycle: 1:2.66
Medium parameters used: f = 1850.2 MHz; σ = 1.485 S/m; εr = 53.136; ρ = 1000 kg/m3 ;
Phantom section: Left Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(7.7, 7.7, 7.7); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (121x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.82 W/kg
Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 9.112 V/m; Power Drift = 0.08 dB
Peak SAR (extrapolated) = 2.05 W/kg
SAR(1 g) = 1.13 W/kg; SAR(10 g) = 0.617 W/kg
Maximum value of SAR (measured) = 1.72 W/kg
0 dB = 1.72 W/kg = 2.36 dBW/kg
SAR Plots
Plot 11#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 12#: GSM 1900_Body Back_Middle
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GPRS-3 slots; Frequency: 1880 MHz;Duty Cycle: 1:2.66
Medium parameters used: f = 1880 MHz; σ = 1.511 S/m; εr = 52.624; ρ = 1000 kg/m3 ;
Phantom section: Left Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(7.7, 7.7, 7.7); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (121x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.88 W/kg
Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 10.13 V/m; Power Drift = -0.15 dB
Peak SAR (extrapolated) = 2.10 W/kg
SAR(1 g) = 1.15 W/kg; SAR(10 g) = 0.633 W/kg
Maximum value of SAR (measured) = 1.75 W/kg
0 dB = 1.75 W/kg = 2.43 dBW/kg
SAR Plots
Plot 12#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 13#: GSM 1900_Body Back_High
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GPRS-3 slots; Frequency: 1909.8 MHz;Duty Cycle: 1:2.66
Medium parameters used: f = 1909.8 MHz; σ = 1.539 S/m; εr = 52.66; ρ = 1000 kg/m3 ;
Phantom section: Left Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(7.7, 7.7, 7.7); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (121x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.47 W/kg
Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 8.715 V/m; Power Drift = 0.06 dB
Peak SAR (extrapolated) = 1.65 W/kg
SAR(1 g) = 0.896 W/kg; SAR(10 g) = 0.498 W/kg
Maximum value of SAR (measured) = 1.28 W/kg
0 dB = 1.28 W/kg = 1.07 dBW/kg
SAR Plots
Plot 13#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 14#: GSM 1900_Body Bottom_Low
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GPRS-3 slots; Frequency: 1850.2 MHz;Duty Cycle: 1:2.66
Medium parameters used: f = 1850.2 MHz; σ = 1.485 S/m; εr = 53.136; ρ = 1000 kg/m3 ;
Phantom section: Left Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(7.7, 7.7, 7.7); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (41x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.56 W/kg
Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 25.47 V/m; Power Drift = -0.16 dB
Peak SAR (extrapolated) = 1.72 W/kg
SAR(1 g) = 0.933 W/kg; SAR(10 g) = 0.489 W/kg
Maximum value of SAR (measured) = 1.41 W/kg
0 dB = 1.41 W/kg = 1.49 dBW/kg
SAR Plots
Plot 14#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 15#: GSM 1900_Body Bottom_Middle
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GPRS-3 slots; Frequency: 1880 MHz;Duty Cycle: 1:2.66
Medium parameters used: f = 1880 MHz; σ = 1.511 S/m; εr = 52.624; ρ = 1000 kg/m3 ;
Phantom section: Left Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(7.7, 7.7, 7.7); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (41x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.48 W/kg
Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 26.13 V/m; Power Drift = -0.18 dB
Peak SAR (extrapolated) = 1.63 W/kg
SAR(1 g) = 0.879 W/kg; SAR(10 g) = 0.460 W/kg
Maximum value of SAR (measured) = 1.34 W/kg
0 dB = 1.34 W/kg = 1.27 dBW/kg
SAR Plots
Plot 15#
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-20
Test Plot 16#: GSM 1900_Body Bottom_High
DUT: Mobile Phone; Type: UNO CLAM X1; Serial: 18112700320
Communication System: Generic GPRS-3 slots; Frequency: 1909.8 MHz;Duty Cycle: 1:2.66
Medium parameters used: f = 1909.8 MHz; σ = 1.539 S/m; εr = 52.66; ρ = 1000 kg/m3 ;
Phantom section: Left Section
DASY5 Configuration:

Probe: EX3DV4 - SN7329; ConvF(7.7, 7.7, 7.7); Calibrated: 2018/9/30;

Sensor-Surface: 1.4mm (Mechanical Surface Detection)

Electronics: DAE4 Sn772;Calibrated: 2018/9/28

Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1130

Measurement SW: DASY52, Version 52.8 (8);
Area Scan (41x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.75 W/kg
Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 26.93 V/m; Power Drift = -0.06 dB
Peak SAR (extrapolated) = 1.97 W/kg
SAR(1 g) = 1.05 W/kg; SAR(10 g) = 0.548 W/kg
Maximum value of SAR (measured) = 1.62 W/kg
0 dB = 1.62 W/kg = 2.10 dBW/kg
SAR Plots
Plot 16#
Download: UNOCLAMX1 Mobile Phone RF Exposure Info SAR Plotsx MAXWEST INTERNATIONAL LIMITED.
Mirror Download [FCC.gov]UNOCLAMX1 Mobile Phone RF Exposure Info SAR Plotsx MAXWEST INTERNATIONAL LIMITED.
Document ID4124800
Application IDCGfQHvu8CwmBXqKnZ/zNsQ==
Document DescriptionSAR Scan Plots
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeRF Exposure Info
Display FormatAdobe Acrobat PDF - pdf
Filesize25.88kB (323456 bits)
Date Submitted2018-12-31 00:00:00
Date Available2018-12-31 00:00:00
Creation Date2018-12-24 18:30:18
Producing SoftwareAcrobat Distiller 11.0 (Windows)
Document Lastmod2018-12-24 18:30:37
Document TitleSAR Plotsx
Document CreatorPScript5.dll Version 5.2.2
Document Author: DG06103

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          : DG06103
Create Date                     : 2018:12:24 18:30:18+08:00
Modify Date                     : 2018:12:24 18:30:37+08:00
XMP Toolkit                     : Adobe XMP Core 5.4-c006 80.159825, 2016/09/16-03:31:08
Creator Tool                    : PScript5.dll Version 5.2.2
Metadata Date                   : 2018:12:24 18:30:37+08:00
Format                          : application/pdf
Title                           : Microsoft Word - SAR Plots.docx
Creator                         : DG06103
Producer                        : Acrobat Distiller 11.0 (Windows)
Document ID                     : uuid:5a519757-2e8c-4109-8b6a-2d2b1d5a9961
Instance ID                     : uuid:9ee8c465-82f4-4d52-8211-194ab2906a91
Page Count                      : 16
