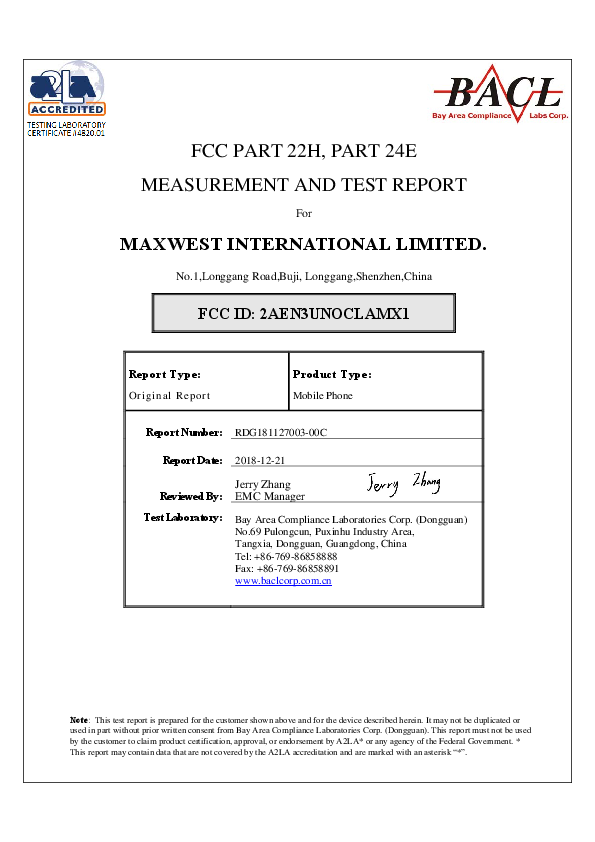

FCC PART 22H, PART 24E
MEASUREMENT AND TEST REPORT
For
MAXWEST INTERNATIONAL LIMITED.
No.1,Longgang Road,Buji, Longgang,Shenzhen,China
FCC ID: 2AEN3UNOCLAMX1
Report Type:
Product Type:
Original Report
Mobile Phone
Report Number:
RDG181127003-00C
Report Date:
2018-12-21
Reviewed By:
Jerry Zhang
EMC Manager
Test Laboratory:
Bay Area Compliance Laboratories Corp. (Dongguan)
No.69 Pulongcun, Puxinhu Industry Area,
Tangxia, Dongguan, Guangdong, China
Tel: +86-769-86858888
Fax: +86-769-86858891
www.baclcorp.com.cn
Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or
used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used
by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. *
This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”.
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
TABLE OF CONTENTS
GENERAL INFORMATION .......................................................................................................................................4
PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4
OBJECTIVE ...................................................................................................................................................................4
RELATED SUBMITTAL(S)/GRANT(S) .............................................................................................................................4
TEST METHODOLOGY ..................................................................................................................................................4
MEASUREMENT UNCERTAINTY ....................................................................................................................................5
TEST FACILITY .............................................................................................................................................................5
SYSTEM TEST CONFIGURATION ..........................................................................................................................6
JUSTIFICATION .............................................................................................................................................................6
EQUIPMENT MODIFICATIONS .......................................................................................................................................6
SUPPORT EQUIPMENT LIST AND DETAILS ....................................................................................................................6
CONFIGURATION OF TEST SETUP .................................................................................................................................6
BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................7
SUMMARY OF TEST RESULTS ...............................................................................................................................8
FCC §1.1310 & §2.1093- RF EXPOSURE ....................................................................................................................9
APPLICABLE STANDARD ..............................................................................................................................................9
TEST RESULT ...............................................................................................................................................................9
FCC §2.1047 - MODULATION CHARACTERISTIC ............................................................................................10
FCC § 2.1046, § 22.913 (A) & § 24.232 (C) - RF OUTPUT POWER ......................................................................11
APPLICABLE STANDARD ............................................................................................................................................11
TEST PROCEDURE ......................................................................................................................................................11
TEST EQUIPMENT LIST AND DETAILS .........................................................................................................................12
TEST DATA ................................................................................................................................................................12
FCC §2.1049, §22.917, §22.905 & §24.238 - OCCUPIED BANDWIDTH ..............................................................14
APPLICABLE STANDARD ............................................................................................................................................14
TEST PROCEDURE ......................................................................................................................................................14
TEST EQUIPMENT LIST AND DETAILS .........................................................................................................................14
TEST DATA ................................................................................................................................................................15
FCC §2.1051, §22.917(A) & §24.238(A) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ..................17
APPLICABLE STANDARD ............................................................................................................................................17
TEST PROCEDURE ......................................................................................................................................................17
TEST EQUIPMENT LIST AND DETAILS .........................................................................................................................17
TEST DATA ................................................................................................................................................................18
FCC §2.1053, §22.917 & §24.238 - SPURIOUS RADIATED EMISSIONS ...........................................................21
APPLICABLE STANDARD ............................................................................................................................................21
TEST PROCEDURE ......................................................................................................................................................21
TEST EQUIPMENT LIST AND DETAILS .........................................................................................................................22
TEST DATA ................................................................................................................................................................22
FCC §22.917(A) & §24.238(A)- BAND EDGES ........................................................................................................24
APPLICABLE STANDARD ............................................................................................................................................24
TEST PROCEDURE ......................................................................................................................................................24
TEST EQUIPMENT LIST AND DETAILS .........................................................................................................................24
TEST DATA ................................................................................................................................................................25
FCC §2.1055, §22.355 & §24.235 - FREQUENCY STABILITY ...........................................................................28
Page 2 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
APPLICABLE STANDARD ............................................................................................................................................28
TEST PROCEDURE ......................................................................................................................................................28
TEST EQUIPMENT LIST AND DETAILS .........................................................................................................................29
TEST DATA ................................................................................................................................................................29
Page 3 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
GENERAL INFORMATION
Product Description for Equipment under Test (EUT)
EUT Name:
EUT Model:
FCC ID:
Rated Input Voltage:
Input:
Adapter
Information
Output:
External Dimension:
Serial Number:
EUT Received Date:
Mobile Phone
UNO CLAM X1
2AEN3UNOCLAMX1
3.7VDC from battery and 5VDC from adapter
100-240VAC
5VDC
107.6 mm(L)* 56.9 mm(W)* 20.3 mm(H)
181127003
2018/11/27
Objective
This report is prepared on behalf of MAXWEST INTERNATIONAL LIMITED. in accordance with: Part 2Subpart J, Part 22-Subpart H, and Part 24-Subpart E of the Federal Communications Commission’s rules.
The objective is to determine compliance with FCC Rules for output power, modulation characteristic,
occupied bandwidth, spurious emissions at antenna terminal, spurious radiated emission, frequency stability
and band edge.
Related Submittal(s)/Grant(s)
FCC Part 15C DSS submissions with FCC ID: 2AEN3UNOCLAMX1.
Test Methodology
All tests and measurements indicated in this document were performed in accordance with the Code of
Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts:
Part 22 Subpart H - Public Mobile Services
Part 24 Subpart E - Personal Communication Services
Applicable Standards: TIA/EIA 603-D-2010.
All radiated and conducted emissions measurements were performed at Bay Area Compliance Laboratories
Corp.(Dongguan).
Page 4 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
Measurement Uncertainty
Parameter
Occupied Channel Bandwidth
RF output power, conducted
Unwanted Emissions, radiated
Unwanted Emissions, conducted
Temperature
Humidity
DC and low frequency voltages
Duty Cycle
Measurement Uncertainty
±5 %
±0.61dB
30MHz~1GHz:5.85 dB
1G~26.5GHz: 5.23 dB
±1.5 dB
±1℃
±5%
±0.4%
1%
Test Facility
e Test site used by Bay Area Compliance Laboratories Corp. (Dongguan) to collect test data is located on the
No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China.
The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC
Public Access Link (PAL) database, FCC Registration No. : 897218, the FCC Designation No. : CN1220.
The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian
radio equipment requirements, the CAB identifier: CN0022.
Page 5 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
SYSTEM TEST CONFIGURATION
Justification
The EUT was configured for testing according to TIA/EIA-603-D 2010.
The test items were performed with the EUT operating at testing mode. The device supports GSM/GPRS
850 and 1900 Bands.
Equipment Modifications
No modification was made to the EUT.
Support Equipment List and Details
Manufacturer
Description
Model
Serial Number
R&S
N/A
Universial Radio Communication Tester
ANTENNA
CMU200
N/A
109038
N/A
Configuration of Test Setup
CMU200
Antenna
EUT
Page 6 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
Block Diagram of Test Setup
CMU200
Antenna
1.0 Meter
EUT
Non-Conductive Table
150 cm above Ground Plane
1.5 Meter
Page 7 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
SUMMARY OF TEST RESULTS
FCC Rules
Description of Test
Result
§1.1310, §2.1093
RF Exposure
Compliance
§2.1046;
§ 22.913 (a); § 24.232 (c);
RF Output Power
Compliance
§ 2.1047
Modulation Characteristics
Not Applicable
Occupied Bandwidth
Compliance
Spurious Emissions at Antenna Terminal
Compliance
§ 2.1053
§ 22.917 (a); § 24.238 (a)
Spurious Radiation Emissions
Compliance
§ 22.917 (a); § 24.238 (a)
Out of band emission, Band Edge
Compliance
§ 2.1055
§ 22.355; § 24.235
Frequency stability vs. temperature
Frequency stability vs. voltage
Compliance
§ 2.1049; § 22.905
§ 22.917; § 24.238
§ 2.1051,
§ 22.917 (a); § 24.238 (a)
Page 8 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
FCC §1.1310 & §2.1093- RF EXPOSURE
Applicable Standard
FCC§1.1310 and §2.1093.
Test Result
Compliance, please refer to the SAR report: RDG181127003-20.
Page 9 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
FCC §2.1047 - MODULATION CHARACTERISTIC
According to FCC § 2.1047(d), Part 22H & 24E there is no specific requirement for digital modulation,
therefore modulation characteristic is not presented.
Page 10 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
FCC § 2.1046, § 22.913 (a) & § 24.232 (c) - RF OUTPUT POWER
Applicable Standard
According to FCC §2.1046 and §22.913 (a), the ERP of mobile transmitters and auxiliary test transmitters
must not exceed 7 watts.
According to FCC §2.1046 and §24.232 (C), mobile and portable stations are limited to 2 watts EIRP and the
equipment must employ a means for limiting power to the minimum necessary for successful
communications.
According to §24.232 (d) Power measurements for transmissions by stations authorized under this section
may be made either in accordance with a Commission-approved average power technique or in compliance
with paragraph (e) of this section. In both instances, equipment employed must be authorized in accordance
with the provisions of §24.51. In measuring transmissions in this band using an average power technique, the
peak-to-average ratio (PAR) of the transmission may not exceed 13 dB.
Test Procedure
GSM/GPRS/EGPRS
Function:
Menu select > GSM Mobile Station > GSM 850/1900
Press Connection control to choose the different menus
Press RESET > choose all the reset all settings
Connection
Press Signal Off to turn off the signal and change settings
Network Support > GSM + GPRS or GSM + EGSM
Main Service > Packet Data
Service selection > Test Mode A – Auto Slot Config. off
MS Signal
Press Slot Config Bottom on the right twice to select and change the number of time slots
and power setting
> Slot configuration > Uplink/Gamma
> 33 dBm for GPRS 850
> 30 dBm for GPRS 1900
> 27 dBm for EGPRS 850
> 26 dBm for EGPRS 1900
BS Signal
Enter the same channel number for TCH channel (test channel) and BCCH channel
Frequency Offset >
+ 0 Hz
Mode >
BCCH and TCH
BCCH Level >
-85 dBm (May need to adjust if link is not stable)
BCCH Channel >
choose desire test channel [Enter the same channel number for TCH channel (test
channel) and BCCH channel]
Channel Type >
P0 >
Slot Config >
TCH >
Hopping >
Main Timeslot >
Network
Off
4 dB
Unchanged (if already set under MS signal)
choose desired test channel
Off
Coding Scheme >
CS4 (GPRS) and MCS5 (EGPRS)
Bit Stream >
AF/RF
Connection
2E9-1 PSR Bit Stream
Enter appropriate offsets for Ext. Att. Output and Ext. Att. Input
Press Signal on to turn on the signal and change settings
Page 11 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
Test Equipment List and Details
ESCI
JB3
E8247C
FSIQ26
3115
HRN-0118
Serial
Number
100035
A060611-3
MY43321350
831929/005
000 527 35
130 084
Calibration
Date
2018-08-03
2017-07-21
2017-12-11
2018-08-03
2016-01-05
2016-01-05
Calibration
Due Date
2019-08-03
2019-07-21
2018-12-11
2019-08-03
2019-01-04
2019-01-04
CMU200
106 891
2017-12-14
2018-12-14
C-NJNJ-50
C-NJNJ-50
C-NJNJ-50
UFA147-1-2362100100
C-0400-02
C-0075-02
C-2200-01
64639 231029001
2018-09-05
2018-09-05
2018-09-05
2019-09-05
2019-09-05
2019-09-05
2018-02-24
2019-02-28
3121C
9109-753
N/A
N/A
C-SJ00-0010
C0010/02
Each time
Manufacturer
Description
Model
R&S
Sunol Sciences
Agilent
Rohde & Schwarz
ETS-Lindgren
TDK RF
Unknown
Unknown
Unknown
EMI Test Receiver
Antenna
Signal Generator
Signal Analyzer
Horn Antenna
Horn Antenna
Universal Radio
Communication
Tester
Coaxial Cable
Coaxial Cable
Coaxial Cable
MICRO-COAX
Coaxial Cable
R&S
EMCO
Unknown
Adjustable Dipole
Antenna
Coaxial Cable
* Statement of Traceability: Bay Area Compliance Laboratories Corp. (Dongguan) attests that all calibrations have
been performed, traceable to National Primary Standards and International System of Units (SI).
Test Data
Environmental Conditions
Temperature:
Relative Humidity:
ATM Pressure:
24.6 C
59%
100.5 kPa
* The testing was performed by Blake Yang from 2018-11-29.
Test Result: Compliance
Page 12 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
Conducted Output Power
Cellular Band & PCS Band
Band
Cellular
PCS
Channel
No.
GSM
128
190
251
512
661
810
31.34
31.38
31.56
27.20
27.60
28.10
ERP & EIRP
Frequency
(MHz)
836.60
836.60
Conducted Peak Output Power (dBm)
GPRS 1
GPRS 2 TX
GPRS 3
TX Slot
Slot
TX Slot
31.65
30.26
28.68
31.86
30.42
28.91
31.97
30.61
29.15
27.13
25.34
23.79
27.41
25.46
23.88
28.05
25.58
23.96
GPRS 4
TX Slot
26.96
27.21
27.45
21.91
21.96
22.04
Part 22H
Polar
(H/V)
Receiver
Reading
(dBµV)
99.93
100.74
Substituted Method
Substituted
Level
(dBm)
Antenna
Gain
(dBd/dBi)
Cable Loss
(dB)
GSM 850 Middle Channel
25.01
0.00
0.97
28.95
0.00
0.97
Absolute
Level
(dBm)
Limit
(dBm)
Margin
(dB)
24.04
27.98
38.45
38.45
14.41
10.47
Absolute
Level
(dBm)
Limit
(dBm)
Margin
(dB)
30.93
29.21
33.00
33.00
2.07
3.79
Part 24E
Frequency
(MHz)
Polar
(H/V)
Receiver
Reading
(dBµV)
1880.00
1880.00
94.54
92.68
Substituted Method
Substituted
Antenna
Cable Loss
Level
Gain
(dB)
(dBm)
(dBd/dBi)
PCS 1900 Middle Channel
21.93
11.66
2.66
20.21
11.66
2.66
Note:
1) The unit of Antenna Gain is dBd for frequency below 1GHz, and the unit of Antenna Gain is dBi for frequency
above 1GHz.
2) Absolute Level = Substituted Level - Cable loss + Antenna Gain
3) Margin = Limit-Absolute Level
Page 13 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
FCC §2.1049, §22.917, §22.905 & §24.238 - OCCUPIED BANDWIDTH
Applicable Standard
FCC §2.1049, §22.917, §22.905, §24.238
Test Procedure
The RF output of the transmitter was connected to the simulator and the spectrum analyzer through
sufficient attenuation.
The 26 dB & 99% bandwidth was recorded.
EUT
Splitter
Spectrum Analyzer
Universal Radio
Communication
Tester
Test Equipment List and Details
Manufacturer
Description
Model
Serial
Number
Calibration
Date
Calibration
Due Date
R&S
Spectrum Analyzer
FSU 26
200256
2018-01-04
2019-01-04
E-Microwave
Two-way Spliter
ODP-1-6-2S
OE0120142
Each time
N/A
yzjingcheng
Coaxial Cable
KTRFBU141-50
41005012
Each time
N/A
Unknown
Coaxial Cable
C-SJ00-0010
C0010/02
Each time
N/A
* Statement of Traceability: Bay Area Compliance Laboratories Corp. (Dongguan) attests that all calibrations have
been performed, traceable to National Primary Standards and International System of Units (SI).
Page 14 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
Test Data
Environmental Conditions
Temperature:
Relative Humidity:
ATM Pressure:
24.6 C
59%
100.5 kPa
* The testing was performed by Blake Yang from 2018-11-29.
Test Mode: Transmitting
Test Result: Compliance. Please refer to the following table and plots.
Band
Test
Channel
Mode
Cellular
PCS
GSM
PCS
99%
Occupied
Bandwidth
(MHz)
0.244
0.244
26 dB
Occupied
Bandwidth
(MHz)
0.322
0.321
GSM 850 Cellular Band
Page 15 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
GSM PCS1900 Cellular Band
Page 16 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
FCC §2.1051, §22.917(a) & §24.238(a) - SPURIOUS EMISSIONS AT
ANTENNA TERMINALS
Applicable Standard
FCC §2.1051, §22.917(a) , §24.238(a).
The spectrum was to be investigated to the tenth harmonics of the highest fundamental frequency as
specified in § 2.1051.
Test Procedure
The RF output of the transceiver was connected to a spectrum analyzer and simulator through appropriate
attenuation. Sufficient scans were taken to show any out of band emissions up to 10th harmonic.
EUT
Spectrum Analyzer
Splitter
CMU200
Test Equipment List and Details
Manufacturer
Description
Model
Serial
Number
Calibration
Date
Calibration
Due Date
R&S
Spectrum Analyzer
FSU 26
200256
2018-01-04
2019-01-04
E-Microwave
Two-way Spliter
ODP-1-6-2S
OE0120142
Each time
N/A
yzjingcheng
Coaxial Cable
KTRFBU141-50
41005012
Each time
N/A
Unknown
Coaxial Cable
C-SJ00-0010
C0010/02
Each time
N/A
* Statement of Traceability: Bay Area Compliance Laboratories Corp. (Dongguan) attests that all calibrations have
been performed, traceable to National Primary Standards and International System of Units (SI).
Page 17 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
Test Data
Environmental Conditions
Temperature:
Relative Humidity:
ATM Pressure:
24.6 C
59%
100.5 kPa
* The testing was performed by Blake Yang from 2018-11-29.
Test Result: Compliance. Please refer to the following plots.
GSM850_Middle Channel
Fundamental
Page 18 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
PCS 1900_ Middle Channel
Page 19 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
Fundamental
Page 20 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
FCC §2.1053, §22.917 & §24.238 - SPURIOUS RADIATED EMISSIONS
Applicable Standard
FCC § 2.1053, §22.917, § 24.238.
Test Procedure
The transmitter was placed on a wooden turntable, and it was transmitting into a non-radiating load which
was also placed on the turntable.
The measurement antenna was placed at a distance of 3 meters from the EUT. During the tests, the antenna
height and polarization as well as EUT azimuth were varied in order to identify the maximum level of
emissions from the EUT. The test was performed by placing the EUT on 3-orthogonal axis.
The frequency range up to tenth harmonic of the fundamental frequency was investigated.
Remove the EUT and replace it with substitution antenna. A signal generator was connected to the
substitution antenna by a non-radiating cable. The absolute levels of the spurious emissions were measured
by the substitution.
Spurious emissions in dB = 10 lg (TXpwr in Watts/0.001) – the absolute level
Spurious attenuation limit in dB = 43 + 10 Log10 (power out in Watts)
Page 21 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
Test Equipment List and Details
Calibration
Date
2017-12-11
2017-11-10
2018-09-05
2017-12-11
2018-01-04
2016-01-05
2018-09-05
2016-01-05
Calibration
Due Date
2018-12-11
2020-11-10
2019-09-05
2018-12-11
2019-01-04
2019-01-04
2019-09-05
2019-01-04
2016-11-18
2019-11-18
2016-11-18
2019-11-18
C-NJNJ-50
Serial
Number
100224
A060611-1
2727A05902
MY43321350
200256
000 527 35
5969001149
130 084
1007726-01
1304
1007726-02
1304
C-0400-01
2018-09-05
2019-09-05
C-NJNJ-50
C-NJNJ-50
C-NJNJ-50
UFA147-1-2362100100
C-0400-02
C-0075-02
C-2200-01
64639 231029001
2018-09-05
2018-09-05
2018-09-05
2019-09-05
2019-09-05
2019-09-05
2018-02-24
2019-02-28
3121C
9109-753
N/A
N/A
Manufacturer
Description
Model
R&S
Sunol Sciences
HP
Agilent
R&S
ETS-Lindgren
Mini
TDK RF
Ducommun
Technolagies
Ducommun
Technolagies
Unknown
EMI Test Receiver
Antenna
Amplifier
Signal Generator
Spectrum Analyzer
Horn Antenna
Pre-amplifier
Horn Antenna
ESCI
JB3
8447D
E8247C
FSU 26
3115
ZVA-183-S+
HRN-0118
Horn Antenna
ARH-4223-02
Horn Antenna
ARH-4223-02
Coaxial Cable
Unknown
Unknown
Unknown
Coaxial Cable
Coaxial Cable
Coaxial Cable
MICRO-COAX
Coaxial Cable
EMCO
Adjustable Dipole
Antenna
* Statement of Traceability: Bay Area Compliance Laboratories Corp. (Dongguan) attests that all calibrations have
been performed, traceable to National Primary Standards and International System of Units (SI).
Test Data
Environmental Conditions
Temperature:
Relative Humidity:
ATM Pressure:
22.4~26.5C
46~62%
99.7~100.6kPa
* The testing was performed by Vern Shen and Kami Zhou from 2018-12-03 to 2018-12-10.
Test Result: Compliance.
Page 22 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
EUT Operation Mode: Transmitting
Cellular Band (PART 22H)
30 MHz-10 GHz:
Frequency
(MHz)
Polar
(H/V)
Receiver
Reading
(dBµV)
1673.200
1673.200
2509.800
2509.800
3346.400
3346.400
468.440
468.440
73.89
73.60
68.01
70.50
55.37
57.00
41.85
47.47
Substituted Method
Substituted
Level
(dBm)
Antenna
Gain
(dBd/dBi)
Cable Loss
(dB)
GSM850, Frequency:836.600 MHz
-40.32
10.6
0.73
-41.21
10.6
0.73
-45.01
13.1
1.25
-42.55
13.1
1.25
-55.29
13.8
1.61
-53.71
13.8
1.61
-62.56
0.0
0.68
-60.08
0.0
0.68
Absolute
Level
(dBm)
Limit
(dBm)
Margin
(dB)
-30.4
-31.3
-33.2
-30.7
-43.1
-41.5
-63.2
-60.8
-13.0
-13.0
-13.0
-13.0
-13.0
-13.0
-13.0
-13.0
17.4
18.3
20.2
17.7
30.1
28.5
50.2
47.8
Absolute
Level
(dBm)
Limit
(dBm)
Margin
(dB)
-35.2
-33.9
-32.8
-32.3
-33.5
-35.0
-54.9
-69.5
-13.0
-13.0
-13.0
-13.0
-13.0
-13.0
-13.0
-13.0
22.2
20.9
19.8
19.3
20.5
22.0
41.9
56.5
PCS Band (PART 24E)
30 MHz-20 GHz:
Frequency
(MHz)
3760.000
3760.000
5640.000
5640.000
7520.000
7520.000
140.580
416.060
Polar
(H/V)
Receiver
Reading
(dBµV)
61.47
62.69
60.51
60.91
54.97
53.88
51.34
39.13
Substituted Method
Substituted
Level
(dBm)
Antenna
Gain
(dBd/dBi)
Cable Loss
(dB)
GSM1900, Frequency:1880.000 MHz
-47.33
13.8
1.63
-45.98
13.8
1.63
-45.52
14.0
1.31
-45
14.0
1.31
-45.35
13.2
1.33
-46.91
13.2
1.33
-54.58
0.0
0.35
-68.89
0.0
0.63
Note:
1) The unit of Antenna Gain is dBd for frequency below 1GHz, and the unit of Antenna Gain is dBi for frequency
above 1GHz.
2) Absolute Level = Substituted Level - Cable loss + Antenna Gain
3) Margin = Limit-Absolute Level
Page 23 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
FCC §22.917(a) & §24.238(a)- BAND EDGES
Applicable Standard
FCC § 2.1053, §22.917, § 24.238.
Test Procedure
The RF output of the transmitter was connected to the input of the spectrum analyzer through sufficient
attenuation.
The center of the spectrum analyzer was set to block edge frequency.
EUT
Splitter
Spectrum Analyzer
Universal Radio
Communication
Tester
Test Equipment List and Details
Manufacturer
Description
Model
Serial
Number
Calibration
Date
Calibration
Due Date
R&S
Spectrum Analyzer
FSU 26
200256
2018-01-04
2019-01-04
E-Microwave
Two-way Spliter
ODP-1-6-2S
OE0120142
Each time
N/A
yzjingcheng
Coaxial Cable
KTRFBU141-50
41005012
Each time
N/A
Unknown
Coaxial Cable
C-SJ00-0010
C0010/02
Each time
N/A
* Statement of Traceability: Bay Area Compliance Laboratories Corp. (Dongguan) attests that all calibrations have
been performed, traceable to National Primary Standards and International System of Units (SI).
Page 24 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
Test Data
Environmental Conditions
Temperature:
Relative Humidity:
ATM Pressure:
24.6 C
59%
100.5 kPa
* The testing was performed by Blake Yang from 2018-11-29.
Test Mode: Transmitting
Test Result: Compliance. Please refer to the following plots.
GSM 850, Left Band Edge
Page 25 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
GSM 850, Right Band Edge
GSM 1900, Left Band Edge
Page 26 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
GSM 1900, Right Band Edge
Page 27 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
FCC §2.1055, §22.355 & §24.235 - FREQUENCY STABILITY
Applicable Standard
FCC § 2.1055 (a), § 2.1055 (d), §22.355, §24.235
According to §22.355, the carrier frequency of each transmitter in the Public Mobile Services must be
maintained within the tolerances given in Table below:
Frequency Tolerance for Transmitters in the Public Mobile Services
Frequency Range
(MHz)
Base, fixed
(ppm)
25 to 50
50 to 450
450 to 512
821 to 896
928 to 929.
929 to 960.
2110 to 2220
20.0
5.0
2.5
1.5
5.0
1.5
10.0
Mobile>3 watts
(ppm)
20.0
5.0
5.0
2.5
N/A
N/A
N/A
Mobile ≤ 3 watts
(ppm)
50.0
50.0
5.0
2.5
N/A
N/A
N/A
According to §24.235, the frequency stability shall be sufficient to ensure that the fundamental emissions
stays within the authorized frequency block.
Test Procedure
Frequency Stability vs. Temperature: The equipment under test was connected to an external DC power
supply and the RF output was connected to communication test set via feed-through attenuators. The EUT
was placed inside the temperature chamber. The DC leads and RF output cable exited the chamber through
an opening made for the purpose.
After the temperature stabilized for approximately 20 minutes, the frequency output was recorded from the
communication test set.
Frequency Stability vs. Voltage: An external variable DC power supply was connected to the battery
terminals of the equipment under test. The voltage was set from 85% to 115% of the nominal value and was
then decreased until the transmitter light no longer illuminated; i.e., the battery end point. The output
frequency was recorded for each battery voltage.
Temperature
Chamber
EUT
Test
Equipment
Page 28 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
Test Equipment List and Details
Manufacturer
Description
Model
Serial
Number
Calibration
Date
Calibration
Due Date
R&S
Universal Radio
Communication
Tester
CMU200
106 891
2017-12-14
2018-12-14
BACL
Humidity tester
BTH-800
30018
2018-01-05
2019-01-05
Unknown
Coaxial Cable
C-SJ00-0010
C0010/02
Each time
N/A
UNI-T
Multimeter
UT39A
M130199938
2018-07-24
2019-07-24
Pro instrument
DC Power Supply
pps3300
3300012
N/A
N/A
* Statement of Traceability: Bay Area Compliance Laboratories Corp. (Dongguan) attests that all calibrations have
been performed, traceable to National Primary Standards and International System of Units (SI).
Test Data
Environmental Conditions
Temperature:
Relative Humidity:
ATM Pressure:
24.6 C
59%
100.5 kPa
* The testing was performed by Blake Yang from 2018-11-29.
Test Result: Compliance.
Page 29 of 30
Bay Area Compliance Laboratories Corp. (Dongguan)
Report No.: RDG181127003-00C
Cellular Band
GMSK, Middle Channel, fc = 836.6 MHz
Temperature
Voltage
Frequency
Error
Frequency
Error
Limit
℃
VDC
Hz
ppm
ppm
-30
12
0.01434
-20
13
0.01554
-10
15
0.01793
14
0.01673
17
0.02032
20
16
0.01913
30
12
0.01434
40
14
0.01673
50
13
0.01554
10
3.7
20
3.5
11
0.01315
20
4.2
15
0.01793
2.5
PCS Band
GMSK, Middle Channel, fc = 1880.0 MHz
Temperature
Voltage
Frequency
Error
Frequency
Error
℃
VDC
Hz
ppm
-30
21
0.01117
-20
22
0.01170
-10
25
0.01330
24
0.01277
23
0.01223
20
24
0.01277
30
31
0.01649
40
30
0.01596
50
25
0.01330
10
3.7
20
3.5
33
0.01755
20
4.2
24
0.01277
Results
Pass
***** END OF REPORT *****
Page 30 of 30
Download: UNOCLAMX1 Mobile Phone Test Report RDG181127003-00C_Part 22H&24E MAXWEST INTERNATIONAL LIMITED.
Mirror Download [FCC.gov]UNOCLAMX1 Mobile Phone Test Report RDG181127003-00C_Part 22H&24E MAXWEST INTERNATIONAL LIMITED.
Document ID4124797
Application IDCGfQHvu8CwmBXqKnZ/zNsQ==
Document DescriptionTest Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize38.91kB (486394 bits)
Date Submitted2018-12-31 00:00:00
Date Available2018-12-31 00:00:00
Creation Date2018-12-29 15:08:40
Producing SoftwareAcrobat Distiller 9.0.0 (Windows)
Document Lastmod2018-12-29 15:08:58
Document TitleRDG181127003-00C_Part 22H&24E
Document CreatorPScript5.dll Version 5.2.2
Document Author: Administrator

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          : Administrator
Create Date                     : 2018:12:29 15:08:40+08:00
Modify Date                     : 2018:12:29 15:08:58+08:00
XMP Toolkit                     : Adobe XMP Core 4.2.1-c041 52.342996, 2008/05/07-20:48:00
Creator Tool                    : PScript5.dll Version 5.2.2
Metadata Date                   : 2018:12:29 15:08:58+08:00
Producer                        : Acrobat Distiller 9.0.0 (Windows)
Format                          : application/pdf
Title                           : Microsoft Word - RDG181127003-00C_Part 22H&24E
Creator                         : Administrator
Document ID                     : uuid:de1a1fe2-b869-4876-b752-5f282988ef33
Instance ID                     : uuid:b82577d8-8026-435a-82ae-9c56ef8ca288
Page Count                      : 30
