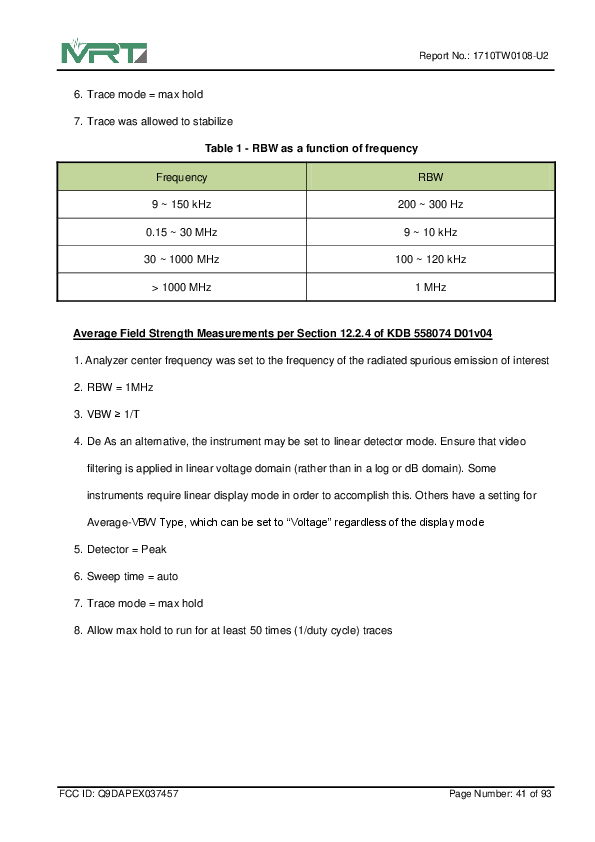

Report No.: 1710TW0108-U2
6. Trace mode = max hold
7. Trace was allowed to stabilize
Table 1 - RBW as a function of frequency
Frequency
RBW
9 ~ 150 kHz
200 ~ 300 Hz
0.15 ~ 30 MHz
9 ~ 10 kHz
30 ~ 1000 MHz
100 ~ 120 kHz
> 1000 MHz
1 MHz
Average Field Strength Measurements per Section 12.2.4 of KDB 558074 D01v04
1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest
2. RBW = 1MHz
3. VBW ≥ 1/T
4. De As an alternative, the instrument may be set to linear detector mode. Ensure that video
filtering is applied in linear voltage domain (rather than in a log or dB domain). Some
instruments require linear display mode in order to accomplish this. Others have a setting for
Average-VBW Type, which can be set to “Voltage” regardless of the display mode
5. Detector = Peak
6. Sweep time = auto
7. Trace mode = max hold
8. Allow max hold to run for at least 50 times (1/duty cycle) traces
FCC ID: Q9DAPEX037457
Page Number: 41 of 93
Report No.: 1710TW0108-U2
7.6.4.Test Setup
9kHz ~ 30MHz Test Setup:
30MHz ~ 1GHz Test Setup:
FCC ID: Q9DAPEX037457
Page Number: 42 of 93
Report No.: 1710TW0108-U2
1GHz ~ 18GHz Test Setup:
18GHz ~25GHz Test Setup:
FCC ID: Q9DAPEX037457
Page Number: 43 of 93
Report No.: 1710TW0108-U2
7.6.5.Test Result
Model No.: APEX0374
Product
ACCESS POINT
Temperature
26°C
Test Engineer
Kevin Ker
Relative Humidity
56%
Test Site
AC1
Test Date
2017/09/13
Test Mode:
BLE
Test Channel:
00
Remark:
1. Average measurement was not performed if peak level lower than average
limit.
2. Other frequency was 20dB below limit line within 1-18GHz, there is not show
in the report.
Mark Frequency
(MHz)
Reading
Factor
Measure
Limit
Level
(dB)
Level
(dBμV/m)
(dB)
(dBμV)
Margin Detector Polarization
(dBμV/m)
4655.0
33.1
3.4
36.5
74.0
-37.5
Peak
Horizontal
5420.0
34.2
4.1
38.3
74.0
-35.7
Peak
Horizontal
7205.0
34.9
12.1
47.0
75.2
-28.2
Peak
Horizontal
8692.5
29.6
13.7
43.3
75.2
-31.9
Peak
Horizontal
5088.5
33.5
4.1
37.6
74.0
-36.4
Peak
Vertical
5420.0
34.0
4.1
38.1
74.0
-35.9
Peak
Vertical
7205.0
41.8
12.1
53.9
75.2
-21.3
Peak
Vertical
8769.0
29.2
13.9
43.1
75.2
-32.1
Peak
Vertical
Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (95.2dBμV/m)
or 15.209 which is higher.
Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 44 of 93
Report No.: 1710TW0108-U2
Product
ACCESS POINT
Temperature
26°C
Test Engineer
Kevin Ker
Relative Humidity
56%
Test Site
AC1
Test Date
2017/09/02
Test Mode:
BLE
Test Channel:
19
Remark:
1. Average measurement was not performed if peak level lower than average
limit.
2. Other frequency was 20dB below limit line within 1-18GHz, there is not show
in the report.
Mark Frequency
(MHz)
Reading
Factor
Measure
Limit
Level
(dB)
Level
(dBμV/m)
(dB)
(dBμV)
Margin Detector Polarization
(dBμV/m)
4740.0
35.7
3.6
39.3
74.0
-34.7
Peak
Horizontal
5394.5
33.2
4.0
37.2
74.0
-36.8
Peak
Horizontal
7171.0
29.4
11.9
41.3
74.0
-32.7
Peak
Horizontal
8769.0
28.0
13.9
41.9
74.0
-32.1
Peak
Horizontal
7324.0
33.6
12.4
46.0
74.0
-28.0
Peak
Vertical
8242.0
29.3
11.9
41.2
74.0
-32.8
Peak
Vertical
9993.0
29.0
15.4
44.4
74.0
-29.6
Peak
Vertical
12713.0
27.5
18.8
46.3
74.0
-27.7
Peak
Vertical
Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (92.5dBμV/m)
or 15.209 which is higher.
Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 45 of 93
Report No.: 1710TW0108-U2
Product
ACCESS POINT
Temperature
26°C
Test Engineer
Kevin Ker
Relative Humidity
56%
Test Site
AC1
Test Date
2017/09/02
Test Mode:
BLE
Test Channel:
39
Remark:
1. Average measurement was not performed if peak level lower than average
limit.
2. Other frequency was 20dB below limit line within 1-18GHz, there is not show
in the report.
Mark Frequency
(MHz)
Reading
Factor
Measure
Limit
Level
(dB)
Level
(dBμV/m)
(dB)
(dBμV)
Margin Detector Polarization
(dBμV/m)
7366.5
30.2
12.5
42.7
74.0
-31.3
Peak
Horizontal
8429.0
30.0
12.4
42.4
74.0
-31.6
Peak
Horizontal
9950.5
28.9
15.3
44.2
74.0
-29.8
Peak
Horizontal
12721.5
26.6
18.8
45.4
74.0
-28.6
Peak
Horizontal
7375.0
30.0
12.5
42.5
74.0
-31.5
Peak
Vertical
8276.0
30.2
11.9
42.1
74.0
-31.9
Peak
Vertical
10035.5
29.4
15.5
44.9
74.0
-29.1
Peak
Vertical
12721.5
26.6
18.8
45.4
74.0
-28.6
Peak
Vertical
Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (90.9dBμV/m)
or 15.209 which is higher.
Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 46 of 93
Report No.: 1710TW0108-U2
The Worst Case of Radiated Emission below 1GHz:
Site: AC1
Time: 2017/09/07 - 20:51
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: VULB9168_20-2000MHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: AC 120V/60Hz
Worse Case Mode: Transmit by BLE at channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
109.055
20.693
7.610
-22.807
43.500
13.083
QP
178.410
26.007
15.080
-17.493
43.500
10.927
QP
224.970
30.283
17.290
-15.717
46.000
12.994
QP
335.600
25.933
10.190
-20.067
46.000
15.743
QP
499.970
25.727
7.150
-20.273
46.000
18.576
QP
912.215
26.573
2.060
-19.427
46.000
24.513
QP
Note 1: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
Note 2: The test trace is same as the ambient noise and the amplitude of the emissions are attenuated more
than 20dB below the permissible (the test frequency range: 9kHz ~ 30MHz, 18GHz ~ 25GHz), therefore no data
appear in the report.
FCC ID: Q9DAPEX037457
Page Number: 47 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/07 - 20:52
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: VULB9168_20-2000MHz
Polarity: Vertical
EUT: ACCESS POINT
Power: AC 120V/60Hz
Worse Case Mode: Transmit by BLE at channel 2402MHz
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
34.850
30.199
17.280
-9.801
40.000
12.919
QP
68.315
25.437
13.950
-14.563
40.000
11.487
QP
109.055
23.643
10.560
-19.857
43.500
13.083
QP
173.075
23.483
12.950
-20.017
43.500
10.533
QP
219.150
26.750
13.980
-19.250
46.000
12.770
QP
499.950
25.776
7.200
-20.224
46.000
18.576
QP
Flag
Mark
Type
Note 1: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
Note 2: The test trace is same as the ambient noise and the amplitude of the emissions are attenuated more
than 20dB below the permissible (the test frequency range: 9kHz ~ 30MHz, 18GHz ~ 25GHz), therefore no data
appear in the report.
FCC ID: Q9DAPEX037457
Page Number: 48 of 93
Report No.: 1710TW0108-U2
Model No.: APEX0375
Product
ACCESS POINT
Temperature
26°C
Test Engineer
Kevin Ker
Relative Humidity
56%
Test Site
AC1
Test Date
2017/11/15
Test Mode:
BLE
Test Channel:
00
Remark:
1. Average measurement was not performed if peak level lower than average
limit.
2. Other frequency was 20dB below limit line within 1-18GHz, there is not show
in the report.
Mark Frequency
(MHz)
Reading
Factor
Measure
Limit
Level
(dB)
Level
(dBμV/m)
(dB)
(dBμV)
Margin Detector Polarization
(dBμV/m)
4808.0
40.4
2.7
43.1
74.0
-30.9
Peak
Horizontal
11293.5
31.5
16.9
48.4
74.0
-25.6
Peak
Horizontal
14158.0
31.8
20.5
52.3
83.0
-30.7
Peak
Horizontal
16487.0
32.3
18.2
50.5
83.0
-32.5
Peak
Horizontal
4799.5
42.7
2.8
45.5
74.0
-28.5
Peak
Vertical
11599.5
31.4
17.1
48.5
74.0
-25.5
Peak
Vertical
14175.0
30.8
21.4
52.2
83.0
-30.8
Peak
Vertical
16589.0
32.7
19.6
52.3
83.0
-30.7
Peak
Vertical
Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (103.0dBμV/m)
or 15.209 which is higher.
Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 49 of 93
Report No.: 1710TW0108-U2
Product
ACCESS POINT
Temperature
26°C
Test Engineer
Kevin Ker
Relative Humidity
56%
Test Site
AC1
Test Date
2017/11/15
Test Mode:
BLE
Test Channel:
19
Remark:
1. Average measurement was not performed if peak level lower than average
limit.
2. Other frequency was 20dB below limit line within 1-18GHz, there is not show
in the report.
Mark Frequency
(MHz)
Reading
Factor
Measure
Limit
Level
(dB)
Level
(dBμV/m)
(dB)
(dBμV)
Margin Detector Polarization
(dBμV/m)
4961.0
36.2
2.7
38.9
74.0
-35.1
Peak
Horizontal
10911.0
32.3
16.4
48.7
74.0
-25.3
Peak
Horizontal
13104.0
31.2
18.0
49.2
82.7
-33.5
Peak
Horizontal
15161.0
31.6
18.7
50.3
82.7
-32.4
Peak
Horizontal
4961.0
39.0
2.7
41.7
74.0
-32.3
Peak
Vertical
11174.5
30.9
16.8
47.7
74.0
-26.3
Peak
Vertical
15212.0
31.5
18.6
50.1
82.7
-32.6
Peak
Vertical
16385.0
31.7
18.3
50.0
82.7
-32.7
Peak
Vertical
Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (102.7dBμV/m)
or 15.209 which is higher.
Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 50 of 93
Report No.: 1710TW0108-U2
Product
ACCESS POINT
Temperature
26°C
Test Engineer
Kevin Ker
Relative Humidity
56%
Test Site
AC1
Test Date
2017/11/15
Test Mode:
BLE
Test Channel:
39
Remark:
1. Average measurement was not performed if peak level lower than average
limit.
2. Other frequency was 20dB below limit line within 1-18GHz, there is not show
in the report.
Mark Frequency
(MHz)
Reading
Factor
Measure
Limit
Level
(dB)
Level
(dBμV/m)
(dB)
(dBμV)
Margin Detector Polarization
(dBμV/m)
4961.0
36.5
2.7
39.2
74.0
-34.8
Peak
Horizontal
11259.5
31.3
17.0
48.3
74.0
-25.7
Peak
Horizontal
14226.0
31.4
21.3
52.7
81.7
-29.0
Peak
Horizontal
16623.0
33.2
19.6
52.8
81.7
-28.9
Peak
Horizontal
4961.0
40.0
2.7
42.7
74.0
-31.3
Peak
Vertical
11667.5
31.4
17.6
49.0
74.0
-25.0
Peak
Vertical
13767.0
31.9
20.1
52.0
81.7
-29.7
Peak
Vertical
16623.0
32.8
19.6
52.4
81.7
-29.3
Peak
Vertical
Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (101.7dBμV/m)
or 15.209 which is higher.
Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 51 of 93
Report No.: 1710TW0108-U2
The Worst Case of Radiated Emission below 1GHz:
Site: AC1
Time: 2017/09/07 - 21:18
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: VULB9168_20-2000MHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: AC 120V/60Hz
Worse Case Mode: Transmit by BLE at channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
82.380
19.837
10.060
-20.163
40.000
9.777
QP
167.740
31.430
21.150
-12.070
43.500
10.280
QP
207.990
33.716
21.180
-9.784
43.500
12.536
QP
261.830
27.643
13.550
-18.357
46.000
14.094
QP
338.945
25.861
10.020
-20.139
46.000
15.841
QP
903.000
26.304
1.854
-19.696
46.000
24.450
QP
Note 1: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
Note 2: The test trace is same as the ambient noise and the amplitude of the emissions are attenuated more
than 20dB below the permissible (the test frequency range: 9kHz ~ 30MHz, 18GHz ~ 25GHz), therefore no data
appear in the report.
FCC ID: Q9DAPEX037457
Page Number: 52 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/07 - 21:20
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: VULB9168_20-2000MHz
Polarity: Vertical
EUT: ACCESS POINT
Power: AC 120V/60Hz
Worse Case Mode: Transmit by BLE at channel 2402MHz
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
34.850
28.869
15.950
-11.131
40.000
12.919
QP
82.840
24.492
14.650
-15.508
40.000
9.842
QP
167.250
25.517
15.260
-17.983
43.500
10.257
QP
222.060
27.811
14.950
-18.189
46.000
12.861
QP
500.935
24.741
6.150
-21.259
46.000
18.591
QP
848.190
26.042
2.160
-19.958
46.000
23.882
QP
Flag
Mark
Type
Note 1: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
Note 2: The test trace is same as the ambient noise and the amplitude of the emissions are attenuated more
than 20dB below the permissible (the test frequency range: 9kHz ~ 30MHz, 18GHz ~ 25GHz), therefore no data
appear in the report.
FCC ID: Q9DAPEX037457
Page Number: 53 of 93
Report No.: 1710TW0108-U2
Model No.: APEX0377
Product
ACCESS POINT
Temperature
26°C
Test Engineer
Kevin Ker
Relative Humidity
56%
Test Site
AC1
Test Date
2017/09/13
Test Mode:
BLE
Test Channel:
00
Remark:
1. Average measurement was not performed if peak level lower than average
limit.
2. Other frequency was 20dB below limit line within 1-18GHz, there is not show
in the report.
Mark Frequency
(MHz)
Reading
Factor
Measure
Limit
Level
(dB)
Level
(dBμV/m)
(dB)
(dBμV)
Margin Detector Polarization
(dBμV/m)
4808.0
36.9
3.7
40.6
74.0
-33.4
Peak
Horizontal
5411.5
33.7
4.0
37.7
74.0
-36.3
Peak
Horizontal
7239.0
32.3
12.2
44.5
75.4
-30.9
Peak
Horizontal
8701.0
30.3
13.8
44.1
75.4
-31.3
Peak
Horizontal
7434.5
29.5
12.7
42.2
74.0
-31.8
Peak
Vertical
8310.0
31.0
11.9
42.9
74.0
-31.1
Peak
Vertical
9899.5
29.3
15.4
44.7
75.4
-30.7
Peak
Vertical
12891.5
26.1
19.4
45.5
75.4
-29.9
Peak
Vertical
Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (95.4dBμV/m)
or 15.209 which is higher.
Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 54 of 93
Report No.: 1710TW0108-U2
Product
ACCESS POINT
Temperature
26°C
Test Engineer
Kevin Ker
Relative Humidity
56%
Test Site
AC1
Test Date
2017/09/02
Test Mode:
BLE
Test Channel:
19
Remark:
1. Average measurement was not performed if peak level lower than average
limit.
2. Other frequency was 20dB below limit line within 1-18GHz, there is not show
in the report.
Mark Frequency
(MHz)
Reading
Factor
Measure
Limit
Level
(dB)
Level
(dBμV/m)
(dB)
(dBμV)
Margin Detector Polarization
(dBμV/m)
7298.5
31.0
12.3
43.3
74.0
-30.7
Peak
Horizontal
8378.0
30.3
12.1
42.4
74.0
-31.6
Peak
Horizontal
9865.5
27.6
16.0
43.6
76.3
-32.7
Peak
Horizontal
12721.5
26.7
18.8
45.5
76.3
-30.8
Peak
Horizontal
4876.0
36.4
3.7
40.1
74.0
-33.9
Peak
Vertical
7264.5
30.9
12.3
43.2
74.0
-30.8
Peak
Vertical
8888.0
27.6
14.0
41.6
76.3
-34.7
Peak
Vertical
10222.5
27.2
16.3
43.5
76.3
-32.8
Peak
Vertical
Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (96.3dBμV/m)
or 15.209 which is higher.
Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 55 of 93
Report No.: 1710TW0108-U2
Product
ACCESS POINT
Temperature
26°C
Test Engineer
Kevin Ker
Relative Humidity
56%
Test Site
AC1
Test Date
2017/09/02
Test Mode:
BLE
Test Channel:
39
Remark:
1. Average measurement was not performed if peak level lower than average
limit.
2. Other frequency was 20dB below limit line within 1-18GHz, there is not show
in the report.
Mark Frequency
(MHz)
Reading
Factor
Measure
Limit
Level
(dB)
Level
(dBμV/m)
(dB)
(dBμV)
Margin Detector Polarization
(dBμV/m)
4961.0
36.3
3.7
40.0
74.0
-34.0
Peak
Horizontal
5428.5
32.9
4.1
37.0
74.0
-37.0
Peak
Horizontal
7052.0
29.3
11.0
40.3
77.1
-36.8
Peak
Horizontal
8692.5
28.8
13.7
42.5
77.1
-34.6
Peak
Horizontal
4961.0
38.0
3.7
41.7
74.0
-32.3
Peak
Vertical
5411.5
33.2
4.0
37.2
74.0
-36.8
Peak
Vertical
6737.5
29.7
8.8
38.5
77.1
-38.6
Peak
Vertical
8616.0
28.7
13.5
42.2
77.1
-34.9
Peak
Vertical
Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (97.1dBμV/m)
or 15.209 which is higher.
Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 56 of 93
Report No.: 1710TW0108-U2
The Worst Case of Radiated Emission below 1GHz:
Site: AC1
Time: 2017/09/07 - 23:01
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: VULB9168_20-2000MHz
Polarity: Horizontal
EUT: ACCESS POINT - APEX0377
Power: AC 120V/60Hz
Worse Case Mode: Transmit by BLE at channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
40.670
21.152
7.150
-18.848
40.000
14.002
QP
134.760
23.476
13.650
-20.024
43.500
9.826
QP
249.705
31.998
18.160
-14.002
46.000
13.838
QP
335.065
27.517
11.790
-18.483
46.000
15.727
QP
444.675
25.663
8.100
-20.337
46.000
17.563
QP
849.165
27.547
3.650
-18.453
46.000
23.897
QP
Note 1: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
Note 2: The test trace is same as the ambient noise and the amplitude of the emissions are attenuated more
than 20dB below the permissible (the test frequency range: 9kHz ~ 30MHz, 18GHz ~ 25GHz), therefore no data
appear in the report.
FCC ID: Q9DAPEX037457
Page Number: 57 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/07 - 23:03
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: VULB9168_20-2000MHz
Polarity: Vertical
EUT: ACCESS POINT - APEX0377
Power: AC 120V/60Hz
Worse Case Mode: Transmit by BLE at channel 2402MHz
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
40.185
35.859
21.950
-4.141
40.000
13.909
QP
82.380
26.827
17.050
-13.173
40.000
9.777
QP
163.950
28.065
17.950
-15.435
43.500
10.115
QP
249.700
27.898
14.060
-18.102
46.000
13.838
QP
443.705
22.609
5.060
-23.391
46.000
17.549
QP
845.285
25.488
1.650
-20.512
46.000
23.838
QP
Flag
Mark
Type
Note 1: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
Note 2: The test trace is same as the ambient noise and the amplitude of the emissions are attenuated more
than 20dB below the permissible (the test frequency range: 9kHz ~ 30MHz, 18GHz ~ 25GHz), therefore no data
appear in the report.
FCC ID: Q9DAPEX037457
Page Number: 58 of 93
Report No.: 1710TW0108-U2
7.7. Radiated Restricted Band Edge Measurement
7.7.1.Test Limit
For 15.205 requirement:
Radiated emissions which fall in the restricted bands, as defined in Section 15.205(a) of FCC part
15, must also comply with the radiated emission limits specified in Section 15.209(a).
Frequency
Frequency
Frequency
Frequency
(MHz)
(MHz)
(MHz)
(GHz)
0.090 - 0.110
16.42-16.423
399.9 - 410
4.5-5.15
0.495 - 0.505
16.69475-16.69525
608 - 614
5.35-5.46
2.1735-2.1905
16.80425-16.80475
960 - 1240
7.25-7.75
4.125-4.128
25.5 -25.67
1300 - 1427
8.25 - 8.5
4.17725-4.17775
37.5-38.25
1435-1626.5
9.0-9.2
4.20725-4.20775
73-74.6
1645.5-1646.5
9.3-9.5
6.215-6.218
74.8-75.2
1660 - 1710
10.6-12.7
6.26775-6.26825
108-121.94
1718.8-1722.2
13.25-13.4
6.31175-6.31225
123 - 138
2200 - 2300
14.47-14.5
8.291-8.294
149.9-150.05
2310–2390
15.35-16.2
8.362-8.366
156.52475-156.525
2483.5 - 2500
17.7-21.4
8.37625-8.38675
156.7-156.9
2690 - 2900
22.01-23.12
8.41425-8.41475
162.0125-167.17
3260 - 3267
23.6-24.0
12.29-12.293
167.72-173.2
3332 - 3339
31.2-31.8
12.51975-12.52025
240 - 285
3345.8 - 3358
36.43-36.5
12.57675-12.57725
322-335.4
3600 - 4400
(2)
13.36-13.41
--
--
--
FCC ID: Q9DAPEX037457
Page Number: 59 of 93
Report No.: 1710TW0108-U2
All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title
47CFR must not exceed the limits shown in Table per Section 15.209.
FCC Part 15 Subpart C Paragraph 15.209
Frequency
Field Strength
Measured Distance
[MHz]
[uV/m]
[Meters]
0.009 – 0.490
2400/F (kHz)
300
0.490 – 1.705
24000/F (kHz)
30
1.705 - 30
30
30
30 - 88
100
88 - 216
150
216 - 960
200
Above 960
500
7.7.2.Test Procedure Used
KDB 558074 D01v04 - Section 12.2.4 (peak power measurements)
KDB 558074 D01v04 - Section 12.2.5 (average power measurements)
7.7.3.Test Setting
Peak Field Strength Measurements
1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest
2. RBW = 1MHz
3. VBW = 3MHz
4. Detector = peak
5. Sweep time = auto couple
6. Trace mode = max hold
7. Trace was allowed to stabilize
FCC ID: Q9DAPEX037457
Page Number: 60 of 93
Report No.: 1710TW0108-U2
Average Field Strength Measurements
1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest
2. RBW = 1MHz
3. VBW ≥ 1/T
4. De As an alternative, the instrument may be set to linear detector mode. Ensure that video
filtering is applied in linear voltage domain (rather than in a log or dB domain). Some
instruments require linear display mode in order to accomplish this. Others have a setting for
Average-VBW Type, which can be set to “Voltage” regardless of the display mode
5. Detector = Peak
6. Sweep time = auto
7. Trace mode = max hold
8. Allow max hold to run for at least 50 times (1/duty cycle) traces
7.7.4.Test Setup
FCC ID: Q9DAPEX037457
Page Number: 61 of 93
Report No.: 1710TW0108-U2
7.7.5.Test Result
Model No.: APEX0374
Site: AC1
Time: 2017/09/13 - 04:38
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
2383.958
59.720
27.157
-14.280
74.000
32.563
PK
2390.000
57.473
24.919
-16.527
74.000
32.554
PK
2402.245
95.647
63.109
N/A
N/A
32.539
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 62 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 04:57
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2390.000
45.180
12.626
-8.820
54.000
32.554
AV
2402.008
86.319
53.780
N/A
N/A
32.538
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 63 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 04:58
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Vertical
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
2367.143
60.565
27.979
-13.435
74.000
32.587
PK
2390.000
58.446
25.892
-15.554
74.000
32.554
PK
2402.150
95.243
62.705
N/A
N/A
32.538
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 64 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 05:00
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Vertical
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2390.000
45.194
12.640
-8.806
54.000
32.554
AV
2402.008
94.582
62.043
N/A
N/A
32.538
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 65 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 05:01
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2480MHz
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2480.277
83.908
51.337
N/A
N/A
32.570
PK
2483.500
58.346
25.765
-15.654
74.000
32.580
PK
2484.655
60.991
28.407
-13.009
74.000
32.584
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 66 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 05:03
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2480MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2480.046
83.270
50.700
N/A
N/A
32.570
AV
2483.500
45.578
12.997
-8.422
54.000
32.580
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 67 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 05:03
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Vertical
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2480MHz
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2479.628
90.914
58.345
N/A
N/A
32.569
PK
2483.500
59.004
26.423
-14.996
74.000
32.580
PK
2485.513
60.020
27.433
-13.980
74.000
32.587
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 68 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 05:05
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Vertical
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2480MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2480.046
90.423
57.853
N/A
N/A
32.570
AV
2483.500
46.081
13.500
-7.919
54.000
32.580
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 69 of 93
Report No.: 1710TW0108-U2
Model No.: APEX0375
Site: AC1
Time: 2017/11/15 - 20:02
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
2377.687
60.360
28.151
-13.640
74.000
32.210
PK
2390.000
59.005
26.727
-14.995
74.000
32.278
PK
2402.292
89.481
57.208
N/A
N/A
32.273
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 70 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/11/15 - 20:10
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2390.000
46.073
13.795
-7.927
54.000
32.278
AV
2401.913
88.340
56.066
N/A
N/A
32.274
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 71 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/11/15 - 20:12
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Vertical
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
2382.058
61.089
28.855
-12.911
74.000
32.233
PK
2390.000
58.944
26.666
-15.056
74.000
32.278
PK
2402.198
102.989
70.716
N/A
N/A
32.273
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 72 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/11/15 - 20:15
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Vertical
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2390.000
46.225
13.947
-7.775
54.000
32.278
AV
2402.150
102.316
70.043
N/A
N/A
32.273
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 73 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/11/15 - 20:19
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2480MHz
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2479.726
90.446
58.178
N/A
N/A
32.268
PK
2483.500
60.311
28.030
-13.689
74.000
32.282
PK
2495.170
61.735
29.413
-12.265
74.000
32.322
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 74 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/11/15 - 20:24
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2480MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2480.001
89.859
57.590
N/A
N/A
32.269
AV
2483.500
48.001
15.720
-5.999
54.000
32.282
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 75 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/11/15 - 20:25
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Vertical
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2480MHz
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2480.231
101.675
69.405
N/A
N/A
32.270
PK
2483.500
65.371
33.090
-8.629
74.000
32.282
PK
2487.752
62.024
29.728
-11.976
74.000
32.296
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 76 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/11/15 - 20:29
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Vertical
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2480MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2479.990
101.044
68.775
N/A
N/A
32.269
AV
2483.500
53.499
21.217
-0.501
54.000
32.282
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 77 of 93
Report No.: 1710TW0108-U2
Model No.: APEX0377
Site: AC1
Time: 2017/09/13 - 02:36
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
2379.208
59.719
27.150
-14.281
74.000
32.569
PK
2390.000
58.876
26.322
-15.124
74.000
32.554
PK
2402.245
95.375
62.837
N/A
N/A
32.539
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 78 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 02:40
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2390.000
45.271
12.717
-8.729
54.000
32.554
AV
2402.008
94.782
62.243
N/A
N/A
32.538
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 79 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 02:41
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Vertical
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
2378.305
60.665
28.095
-13.335
74.000
32.571
PK
2390.000
58.151
25.597
-15.849
74.000
32.554
PK
2402.150
87.511
54.973
N/A
N/A
32.538
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 80 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 02:44
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Vertical
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2390.000
45.220
12.666
-8.780
54.000
32.554
AV
2402.150
86.730
54.192
N/A
N/A
32.538
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 81 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 02:45
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2480MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2479.738
97.099
64.530
N/A
N/A
32.569
PK
2483.500
63.782
31.201
-10.218
74.000
32.580
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 82 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 02:47
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Horizontal
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2480MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2480.079
96.539
63.969
N/A
N/A
32.570
AV
2483.500
52.788
20.207
-1.212
54.000
32.580
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 83 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 02:48
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Vertical
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2480MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2480.145
88.098
55.528
N/A
N/A
32.570
PK
2483.500
61.299
28.718
-12.701
74.000
32.580
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 84 of 93
Report No.: 1710TW0108-U2
Site: AC1
Time: 2017/09/13 - 02:50
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz
Polarity: Vertical
EUT: ACCESS POINT
Power: POE (DC 57V)
Test Mode: Transmit by BLE at Channel 2480MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
2480.002
87.295
54.725
N/A
N/A
32.570
AV
2483.500
48.081
15.500
-5.919
54.000
32.580
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m)
FCC ID: Q9DAPEX037457
Page Number: 85 of 93
Report No.: 1710TW0108-U2
7.8. AC Conducted Emissions Measurement
7.8.1.Test Limit
FCC Part 15 Subpart C Paragraph 15.207 Limits
Frequency
(MHz)
QP
(dBuV)
AV
(dBuV)
0.15 - 0.50
66 - 56
56 - 46
0.50 - 5.0
56
46
5.0 - 30
60
50
Note 1: The lower limit shall apply at the transition frequencies.
Note 2: The limit decreases linearly with the logarithm of the frequency in the range 0.15MHz to
0.5MHz.
7.8.2.Test Setup
FCC ID: Q9DAPEX037457
Page Number: 86 of 93
Report No.: 1710TW0108-U2
7.8.3.Test Result
Model No.: APEX0374
Site: SR2
Time: 2017/09/13 - 16:06
Limit: FCC_Part15.207_CE_AC Power
Engineer: Kevin Ker
Probe: ENV216_101683_Filter On
Polarity: Line
EUT: ACCESS POINT
Power: AC 120V/60Hz
Worst Case Mode: Transmit by BLE at channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV)
(dB)
(dBuV)
(dBuV)
Type
0.174
44.790
34.722
-19.977
64.767
10.068
QP
0.174
34.846
24.778
-19.921
54.767
10.068
AV
0.206
41.468
31.487
-21.897
63.365
9.981
QP
0.206
32.851
22.870
-20.514
53.365
9.981
AV
0.394
42.271
32.190
-15.708
57.979
10.080
QP
0.394
31.693
21.613
-16.286
47.979
10.080
AV
0.650
29.903
19.815
-26.097
56.000
10.089
QP
0.650
21.673
11.584
-24.327
46.000
10.089
AV
19.114
31.652
21.535
-28.348
60.000
10.117
QP
10
19.114
23.259
13.142
-26.741
50.000
10.117
AV
11
28.478
33.357
23.093
-26.643
60.000
10.264
QP
12
28.478
27.524
17.260
-22.476
50.000
10.264
AV
Note: Measure Level (dBμV) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + LISN Factor (dB)
FCC ID: Q9DAPEX037457
Page Number: 87 of 93
Report No.: 1710TW0108-U2
Site: SR2
Time: 2017/09/13 - 16:10
Limit: FCC_Part15.207_CE_AC Power
Engineer: Kevin Ker
Probe: ENV216_101683_Filter On
Polarity: Neutral
EUT: ACCESS POINT
Power: AC 120V/60Hz
Worst Case Mode: Transmit by BLE at channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV)
(dB)
(dBuV)
(dBuV)
Type
0.170
44.003
33.940
-20.957
64.960
10.064
QP
0.170
31.406
21.342
-23.555
54.960
10.064
AV
0.206
40.772
30.770
-22.593
63.365
10.001
QP
0.206
31.389
21.388
-21.976
53.365
10.001
AV
0.394
40.857
30.749
-17.122
57.979
10.108
QP
0.394
30.268
20.160
-17.711
47.979
10.108
AV
0.662
25.066
14.969
-30.934
56.000
10.096
QP
0.662
17.180
7.083
-28.820
46.000
10.096
AV
18.918
32.398
22.246
-27.602
60.000
10.152
QP
10
18.918
23.657
13.505
-26.343
50.000
10.152
AV
11
24.678
35.102
24.804
-24.898
60.000
10.299
QP
12
24.678
29.784
19.485
-20.216
50.000
10.299
AV
Note: Measure Level (dBμV) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + LISN Factor (dB)
FCC ID: Q9DAPEX037457
Page Number: 88 of 93
Report No.: 1710TW0108-U2
Model No.: APEX0375
Site: SR2
Time: 2017/09/13 - 15:01
Limit: FCC_Part15.207_CE_AC Power
Engineer: Kevin Ker
Probe: ENV216_101683_Filter On
Polarity: Line
EUT: ACCESS POINT
Power: AC 120V/60Hz
Worst Case Mode: Transmit by BLE at channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV)
(dB)
(dBuV)
(dBuV)
Type
0.170
45.108
35.031
-19.852
64.960
10.078
QP
0.170
33.967
23.889
-20.994
54.960
10.078
AV
0.206
41.605
31.625
-21.760
63.365
9.981
QP
0.206
33.595
23.614
-19.770
53.365
9.981
AV
0.394
42.167
32.087
-15.812
57.979
10.080
QP
0.394
31.302
21.221
-16.677
47.979
10.080
AV
0.646
29.244
19.153
-26.756
56.000
10.091
QP
0.646
21.544
11.453
-24.456
46.000
10.091
AV
22.566
35.994
25.820
-24.006
60.000
10.174
QP
10
22.566
30.240
20.066
-19.760
50.000
10.174
AV
11
29.886
39.407
29.135
-20.593
60.000
10.272
QP
12
29.886
33.675
23.403
-16.325
50.000
10.272
AV
Note: Measure Level (dBμV) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + LISN Factor (dB)
FCC ID: Q9DAPEX037457
Page Number: 89 of 93
Report No.: 1710TW0108-U2
Site: SR2
Time: 2017/09/13 - 15:05
Limit: FCC_Part15.207_CE_AC Power
Engineer: Kevin Ker
Probe: ENV216_101683_Filter On
Polarity: Neutral
EUT: ACCESS POINT
Power: AC 120V/60Hz
Worst Case Mode: Transmit by BLE at channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV)
(dB)
(dBuV)
(dBuV)
Type
0.174
44.394
34.337
-20.374
64.767
10.057
QP
0.174
33.571
23.514
-21.196
54.767
10.057
AV
0.206
40.783
30.782
-22.582
63.365
10.001
QP
0.206
31.961
21.960
-21.404
53.365
10.001
AV
0.390
40.471
30.367
-17.592
58.064
10.105
QP
0.390
30.475
20.370
-17.589
48.064
10.105
AV
0.654
26.491
16.390
-29.509
56.000
10.101
QP
0.654
18.001
7.900
-27.999
46.000
10.101
AV
26.174
35.616
25.277
-24.384
60.000
10.339
QP
10
26.174
30.290
19.951
-19.710
50.000
10.339
AV
11
29.966
39.377
28.937
-20.623
60.000
10.440
QP
29.966
33.586
23.146
-16.414
50.000
10.440
AV
12
Note: Measure Level (dBμV) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + LISN Factor (dB)
FCC ID: Q9DAPEX037457
Page Number: 90 of 93
Report No.: 1710TW0108-U2
Model No.: APEX0377
Site: SR2
Time: 2017/09/13 - 15:22
Limit: FCC_Part15.207_CE_AC Power
Engineer: Kevin Ker
Probe: ENV216_101683_Filter On
Polarity: Line
EUT: ACCESS POINT
Power: AC 120V/60Hz
Worst Case Mode: Transmit by BLE at channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV)
(dB)
(dBuV)
(dBuV)
Type
0.174
44.837
34.769
-19.930
64.767
10.068
QP
0.174
34.876
24.808
-19.891
54.767
10.068
AV
0.206
41.611
31.630
-21.754
63.365
9.981
QP
0.206
33.574
23.593
-19.791
53.365
9.981
AV
0.394
42.125
32.045
-15.854
57.979
10.080
QP
0.394
30.091
20.011
-17.888
47.979
10.080
AV
0.654
28.755
18.668
-27.245
56.000
10.087
QP
0.654
20.741
10.654
-25.259
46.000
10.087
AV
18.946
31.998
21.884
-28.002
60.000
10.114
QP
10
18.946
22.928
12.813
-27.072
50.000
10.114
AV
11
29.950
39.492
29.222
-20.508
60.000
10.270
QP
12
29.950
33.756
23.486
-16.244
50.000
10.270
AV
Note: Measure Level (dBμV) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + LISN Factor (dB)
FCC ID: Q9DAPEX037457
Page Number: 91 of 93
Report No.: 1710TW0108-U2
Site: SR2
Time: 2017/09/13 - 15:26
Limit: FCC_Part15.207_CE_AC Power
Engineer: Kevin Ker
Probe: ENV216_101683_Filter On
Polarity: Neutral
EUT: ACCESS POINT
Power: AC 120V/60Hz
Worst Case Mode: Transmit by BLE at channel 2402MHz
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV)
(dB)
(dBuV)
(dBuV)
Type
0.170
44.320
34.256
-20.640
64.960
10.064
QP
0.170
32.536
22.472
-22.424
54.960
10.064
AV
0.394
40.729
30.621
-17.250
57.979
10.108
QP
0.394
28.435
18.327
-19.544
47.979
10.108
AV
0.606
20.544
10.416
-35.456
56.000
10.128
QP
0.606
9.244
-0.884
-36.756
46.000
10.128
AV
7.530
23.493
13.310
-36.507
60.000
10.183
QP
7.530
17.545
7.362
-32.455
50.000
10.183
AV
22.646
36.297
26.059
-23.703
60.000
10.238
QP
10
22.646
30.464
20.227
-19.536
50.000
10.238
AV
11
30.000
39.373
28.933
-20.627
60.000
10.440
QP
30.000
33.541
23.101
-16.459
50.000
10.440
AV
12
Note: Measure Level (dBμV) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + LISN Factor (dB)
FCC ID: Q9DAPEX037457
Page Number: 92 of 93
Report No.: 1710TW0108-U2
8.
CONCLUSION
The data collected relate only the item(s) tested and show that the ACCESS POINT FCC ID:
Q9DAPEX037457 is in compliance with Part 15C of the FCC Rules.
The End
FCC ID: Q9DAPEX037457
Page Number: 93 of 93
Download: APEX037457 ACCESS POINT Test Report _20171205_v1 - 1710TW0108-U2-FCC DTS  (Bluetooth) Part2 Hewlett Packard Enterprise Company
Mirror Download [FCC.gov]APEX037457 ACCESS POINT Test Report _20171205_v1 - 1710TW0108-U2-FCC DTS  (Bluetooth) Part2 Hewlett Packard Enterprise Company
Document ID3700333
Application IDjLWKK3H37LpzV8pVso/s6w==
Document DescriptionTest Report_20171205_v1 - 1710TW0108-U2-FCC DTS Test Report (Bluetooth) Part2
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize191.36kB (2391948 bits)
Date Submitted2018-01-02 00:00:00
Date Available2018-01-13 00:00:00
Creation Date2017-12-05 22:50:37
Producing SoftwareFoxit Phantom - Foxit Corporation
Document Lastmod2017-12-05 22:50:42
Document TitleTest Report_20171205_v1 - 1710TW0108-U2-FCC DTS Test Report (Bluetooth) Part2
Document Author: Test

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.4
Linearized                      : No
Page Count                      : 53
Producer                        : Foxit Phantom - Foxit Corporation
Author                          : Test
Create Date                     : 2017:12:05 22:50:37
Modify Date                     : 2017:12:05 22:50:42+08:00

Facebook Twitter Google+ RSS © FCCID.io 2018
