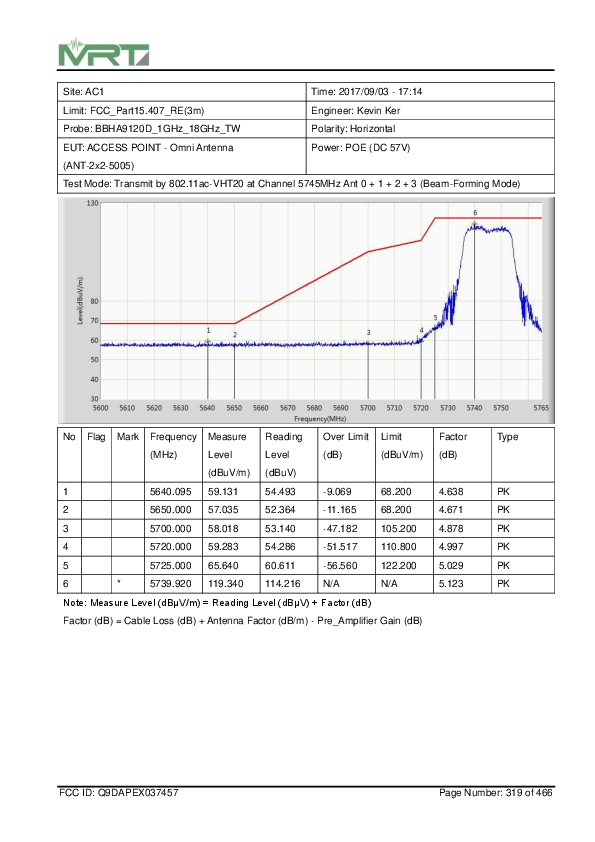

Site: AC1
Time: 2017/09/03 - 17:14
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5745MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5640.095
59.131
54.493
-9.069
68.200
4.638
PK
5650.000
57.035
52.364
-11.165
68.200
4.671
PK
5700.000
58.018
53.140
-47.182
105.200
4.878
PK
5720.000
59.283
54.286
-51.517
110.800
4.997
PK
5725.000
65.640
60.611
-56.560
122.200
5.029
PK
5739.920
119.340
114.216
N/A
N/A
5.123
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 319 of 466
Site: AC1
Time: 2017/09/03 - 17:17
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5745MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5620.460
59.234
54.652
-8.966
68.200
4.581
PK
5650.000
57.666
52.995
-10.534
68.200
4.671
PK
5700.000
57.758
52.880
-47.442
105.200
4.878
PK
5720.000
59.077
54.080
-51.723
110.800
4.997
PK
5725.000
64.342
59.313
-57.858
122.200
5.029
PK
5741.075
118.424
113.293
N/A
N/A
5.131
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 320 of 466
Site: AC1
Time: 2017/09/03 - 17:18
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5825MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5830.058
118.459
112.842
N/A
N/A
5.617
PK
5850.000
59.840
54.114
-62.360
122.200
5.726
PK
5855.000
58.105
52.359
-52.695
110.800
5.746
PK
5875.000
58.466
52.646
-46.734
105.200
5.820
PK
5925.000
58.190
52.224
-10.010
68.200
5.967
PK
5960.415
59.410
53.365
-8.790
68.200
6.044
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 321 of 466
Site: AC1
Time: 2017/09/03 - 17:21
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5825MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5817.578
116.956
111.411
N/A
N/A
5.544
PK
5850.000
58.904
53.178
-63.296
122.200
5.726
PK
5855.000
58.469
52.723
-52.331
110.800
5.746
PK
5856.480
66.532
60.780
-43.853
110.385
5.752
PK
5875.000
56.929
51.109
-48.271
105.200
5.820
PK
5925.000
59.098
53.132
-9.102
68.200
5.967
PK
5960.805
60.172
54.127
-8.028
68.200
6.045
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 322 of 466
Site: AC1
Time: 2017/09/03 - 18:01
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5136.600
58.805
54.630
-15.195
74.000
4.175
PK
5150.000
56.197
52.028
-17.803
74.000
4.170
PK
5179.650
104.896
100.826
N/A
N/A
4.070
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 323 of 466
Site: AC1
Time: 2017/09/03 - 18:03
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
44.659
40.490
-9.341
54.000
4.170
AV
5187.300
93.367
89.324
N/A
N/A
4.043
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 324 of 466
Site: AC1
Time: 2017/09/03 - 18:04
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5144.750
62.584
58.408
-11.416
74.000
4.175
PK
5150.000
57.031
52.862
-16.969
74.000
4.170
PK
5185.250
105.093
101.043
N/A
N/A
4.050
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 325 of 466
Site: AC1
Time: 2017/09/03 - 18:05
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
45.022
40.853
-8.978
54.000
4.170
AV
5186.600
94.465
90.420
N/A
N/A
4.045
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 326 of 466
Site: AC1
Time: 2017/09/04 - 11:09
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5755MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5635.087
58.290
53.666
-9.910
68.200
4.624
PK
5650.000
56.549
51.878
-11.651
68.200
4.671
PK
5683.125
59.463
54.663
-33.286
92.749
4.800
PK
5700.000
58.571
53.693
-46.629
105.200
4.878
PK
5717.862
65.344
60.361
-44.858
110.202
4.983
PK
5720.000
64.530
59.533
-46.270
110.800
4.997
PK
5720.312
68.772
63.773
-42.740
111.512
4.999
PK
5725.000
62.879
57.850
-59.321
122.200
5.029
PK
5741.750
114.465
109.329
N/A
N/A
5.136
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 327 of 466
Site: AC1
Time: 2017/09/04 - 11:14
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5755MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5602.013
59.473
54.941
-8.727
68.200
4.532
PK
5650.000
56.504
51.833
-11.696
68.200
4.671
PK
5692.487
58.866
54.028
-40.795
99.661
4.838
PK
5700.000
57.549
52.671
-47.651
105.200
4.878
PK
5718.650
69.321
64.333
-41.101
110.423
4.989
PK
5720.000
66.654
61.657
-44.146
110.800
4.997
PK
5722.413
71.182
66.170
-45.121
116.303
5.012
PK
5725.000
64.598
59.569
-57.602
122.200
5.029
PK
5750.937
113.498
108.309
N/A
N/A
5.188
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 328 of 466
Site: AC1
Time: 2017/09/04 - 11:17
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5795MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5787.263
114.521
109.143
N/A
N/A
5.378
PK
5850.000
58.606
52.880
-63.594
122.200
5.726
PK
5853.525
59.983
54.243
-54.179
114.162
5.741
PK
5855.000
57.640
51.894
-53.160
110.800
5.746
PK
5860.275
59.584
53.816
-49.737
109.321
5.768
PK
5875.000
57.872
52.052
-47.328
105.200
5.820
PK
5905.612
59.648
53.730
-22.862
82.510
5.918
PK
5925.000
56.923
50.957
-11.277
68.200
5.967
PK
5967.712
58.790
52.733
-9.410
68.200
6.057
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 329 of 466
Site: AC1
Time: 2017/09/04 - 11:21
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5795MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5792.775
112.099
106.693
N/A
N/A
5.406
PK
5850.000
57.238
51.512
-64.962
122.200
5.726
PK
5851.725
58.521
52.788
-59.745
118.266
5.732
PK
5855.000
57.967
52.221
-52.833
110.800
5.746
PK
5856.112
60.058
54.307
-50.430
110.488
5.751
PK
5875.000
56.956
51.136
-48.244
105.200
5.820
PK
5895.038
58.587
52.698
-31.748
90.334
5.889
PK
5925.000
56.692
50.726
-11.508
68.200
5.967
PK
5965.462
58.762
52.709
-9.438
68.200
6.053
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 330 of 466
Site: AC1
Time: 2017/09/03 - 17:29
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80 at Channel 5210MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5140.675
58.215
54.040
-15.785
74.000
4.176
PK
5150.000
56.286
52.117
-17.714
74.000
4.170
PK
5213.275
103.637
99.678
N/A
N/A
3.958
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 331 of 466
Site: AC1
Time: 2017/09/03 - 17:31
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80 at Channel 5210MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
44.703
40.534
-9.297
54.000
4.170
AV
5215.975
93.468
89.517
N/A
N/A
3.951
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 332 of 466
Site: AC1
Time: 2017/09/03 - 17:32
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80 at Channel 5210MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5142.925
58.115
53.939
-15.885
74.000
4.176
PK
5150.000
56.426
52.257
-17.574
74.000
4.170
PK
5226.325
104.574
100.654
N/A
N/A
3.920
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 333 of 466
Site: AC1
Time: 2017/09/03 - 17:32
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80 at Channel 5210MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
45.218
41.049
-8.782
54.000
4.170
AV
5227.900
92.682
88.766
N/A
N/A
3.916
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 334 of 466
Site: AC1
Time: 2017/09/03 - 17:50
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80 at Channel 5775MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5648.400
61.425
56.759
-6.775
68.200
4.666
PK
5650.000
57.180
52.509
-11.020
68.200
4.671
PK
5680.800
68.657
63.867
-22.373
91.031
4.790
PK
5700.000
67.020
62.142
-38.180
105.200
4.878
PK
5720.000
61.044
56.047
-49.756
110.800
4.997
PK
5725.000
59.648
54.619
-62.552
122.200
5.029
PK
5778.800
111.262
105.927
N/A
N/A
5.336
PK
5850.000
58.933
53.207
-63.267
122.200
5.726
PK
5855.000
58.819
53.073
-51.981
110.800
5.746
PK
10
5875.000
58.852
53.032
-46.348
105.200
5.820
PK
11
5925.000
57.379
51.413
-10.821
68.200
5.967
PK
12
5972.200
59.028
52.963
-9.172
68.200
6.065
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 335 of 466
Site: AC1
Time: 2017/09/03 - 17:53
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80 at Channel 5775MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5610.200
58.799
54.247
-9.401
68.200
4.552
PK
5650.000
57.420
52.749
-10.780
68.200
4.671
PK
5679.200
64.784
60.000
-25.064
89.848
4.785
PK
5700.000
60.437
55.559
-44.763
105.200
4.878
PK
5720.000
61.227
56.230
-49.573
110.800
4.997
PK
5725.000
60.615
55.586
-61.585
122.200
5.029
PK
5789.000
110.146
104.759
N/A
N/A
5.386
PK
5850.000
59.641
53.915
-62.559
122.200
5.726
PK
5853.400
69.729
63.989
-44.718
114.447
5.739
PK
10
5855.000
58.723
52.977
-52.077
110.800
5.746
PK
11
5875.000
57.656
51.836
-47.544
105.200
5.820
PK
12
5925.000
58.442
52.476
-9.758
68.200
5.967
PK
5976.400
59.677
53.605
-8.523
68.200
6.072
PK
13
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 336 of 466
Site: AC2
Time: 2017/09/28 - 15:52
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 0 + 1 / Ant 0 + 1 + 2 + 3
(Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5144.500
57.813
53.637
-16.187
74.000
4.176
PK
5150.000
57.086
52.917
-16.914
74.000
4.170
PK
5187.175
110.614
106.571
N/A
N/A
4.043
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 337 of 466
Site: AC2
Time: 2017/09/28 - 16:12
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 0 + 1 / Ant 0 + 1 + 2 + 3
(Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
45.343
41.174
-8.657
54.000
4.170
AV
5196.475
96.071
92.061
N/A
N/A
4.010
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 338 of 466
Site: AC2
Time: 2017/09/28 - 16:14
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 0 + 1 / Ant 0 + 1 + 2 + 3
(Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5144.800
57.869
53.693
-16.131
74.000
4.175
PK
5150.000
56.286
52.117
-17.714
74.000
4.170
PK
5178.775
109.319
105.246
N/A
N/A
4.073
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 339 of 466
Site: AC2
Time: 2017/09/28 - 16:16
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 0 + 1 / Ant 0 + 1 + 2 + 3
(Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
45.225
41.056
-8.775
54.000
4.170
AV
5178.625
95.374
91.300
N/A
N/A
4.074
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 340 of 466
aSite: AC2
Time: 2017/09/28 - 16:34
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5775MHz Ant 0 + 1 / Ant 0 + 1 + 2 + 3
(Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5628.400
60.055
55.450
-8.145
68.200
4.604
PK
5650.000
56.529
51.858
-11.671
68.200
4.671
PK
5679.000
63.397
58.614
-26.302
89.700
4.782
PK
5700.000
60.944
56.066
-44.256
105.200
4.878
PK
5708.000
62.102
57.181
-45.341
107.442
4.921
PK
5720.000
60.746
55.749
-50.054
110.800
4.997
PK
5724.200
61.503
56.479
-58.874
120.377
5.024
PK
5725.000
58.340
53.311
-63.860
122.200
5.029
PK
5738.200
111.680
106.567
N/A
N/A
5.113
PK
10
5850.000
60.232
54.506
-61.968
122.200
5.726
PK
11
5853.200
60.674
54.935
-54.229
114.903
5.739
PK
12
5855.000
60.129
54.383
-50.671
110.800
5.746
PK
13
5862.400
61.314
55.537
-47.412
108.726
5.776
PK
14
5875.000
58.385
52.565
-46.815
105.200
5.820
PK
15
5876.600
60.380
54.555
-43.631
104.011
5.826
PK
Flag
Mark
FCC ID: Q9DAPEX037457
Type
Page Number: 341 of 466
16
5925.000
55.509
49.543
-12.691
68.200
5.967
PK
17
5950.400
58.829
52.802
-9.371
68.200
6.027
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 342 of 466
Site: AC2
Time: 2017/09/28 - 16:38
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5775MHz Ant 0 + 1 / Ant 0 + 1 + 2 + 3
(Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5640.200
62.939
58.300
-5.261
68.200
4.638
PK
5650.000
57.187
52.516
-11.013
68.200
4.671
PK
5679.200
61.259
56.475
-28.589
89.848
4.785
PK
5700.000
57.863
52.985
-47.337
105.200
4.878
PK
5719.000
63.277
58.287
-47.243
110.520
4.990
PK
5720.000
61.949
56.952
-48.851
110.800
4.997
PK
5722.800
64.126
59.111
-53.059
117.185
5.015
PK
5725.000
58.588
53.559
-63.612
122.200
5.029
PK
5753.000
110.354
105.154
N/A
N/A
5.200
PK
10
5850.000
57.957
52.231
-64.243
122.200
5.726
PK
11
5853.200
59.252
53.513
-55.651
114.903
5.739
PK
12
5855.000
56.231
50.485
-54.569
110.800
5.746
PK
13
5872.600
62.121
56.309
-43.750
105.871
5.812
PK
14
5875.000
55.888
50.068
-49.312
105.200
5.820
PK
15
5883.400
57.750
51.901
-41.212
98.962
5.848
PK
Flag
Mark
FCC ID: Q9DAPEX037457
Type
Page Number: 343 of 466
16
5925.000
56.449
50.483
-11.751
68.200
5.967
PK
17
5957.600
57.516
51.476
-10.684
68.200
6.040
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 344 of 466
Site: AC2
Time: 2017/09/28 - 16:41
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 2 + 3 / Ant 0 + 1 + 2 + 3
(Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5138.875
57.691
53.516
-16.309
74.000
4.175
PK
5150.000
55.614
51.445
-18.386
74.000
4.170
PK
5214.175
104.199
100.243
N/A
N/A
3.956
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 345 of 466
Site: AC2
Time: 2017/09/28 - 16:44
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 2 + 3 / Ant 0 + 1 + 2 + 3
(Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
45.122
40.953
-8.878
54.000
4.170
AV
5247.100
91.536
87.677
N/A
N/A
3.860
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 346 of 466
Site: AC2
Time: 2017/09/28 - 16:45
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 2 + 3 / Ant 0 + 1 + 2 + 3
(Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5147.650
57.848
53.672
-16.152
74.000
4.176
PK
5150.000
54.901
50.732
-19.099
74.000
4.170
PK
5240.875
103.356
99.479
N/A
N/A
3.877
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 347 of 466
Site: AC2
Time: 2017/09/28 - 16:46
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 2 + 3 / Ant 0 + 1 + 2 + 3
(Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
45.389
41.220
-8.611
54.000
4.170
AV
5238.700
89.806
85.922
N/A
N/A
3.884
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 348 of 466
Site: AC2
Time: 2017/09/28 - 17:05
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5775MHz Ant 2 + 3 / Ant 0 + 1 + 2 + 3
(Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5602.000
62.196
57.664
-6.004
68.200
4.532
PK
5650.000
57.390
52.719
-10.810
68.200
4.671
PK
5681.200
62.532
57.740
-28.794
91.326
4.792
PK
5700.000
61.154
56.276
-44.046
105.200
4.878
PK
5703.400
63.567
58.671
-42.586
106.153
4.897
PK
5720.000
61.831
56.834
-48.969
110.800
4.997
PK
5722.200
65.745
60.734
-50.072
115.817
5.010
PK
5725.000
61.284
56.255
-60.916
122.200
5.029
PK
5740.400
106.465
101.338
N/A
N/A
5.127
PK
10
5850.000
58.598
52.872
-63.602
122.200
5.726
PK
11
5850.400
59.790
54.063
-61.497
121.288
5.727
PK
12
5855.000
56.999
51.253
-53.801
110.800
5.746
PK
13
5867.600
59.430
53.636
-47.839
107.270
5.795
PK
14
5875.000
55.647
49.827
-49.553
105.200
5.820
PK
15
5894.200
58.085
52.199
-32.870
90.955
5.886
PK
Flag
Mark
FCC ID: Q9DAPEX037457
Type
Page Number: 349 of 466
16
5925.000
55.199
49.233
-13.001
68.200
5.967
PK
17
5939.800
57.195
51.192
-11.005
68.200
6.004
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 350 of 466
Site: AC2
Time: 2017/09/28 - 17:09
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Omni Antenna
Power: POE (DC 57V)
(ANT-2x2-5005)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5775MHz Ant 2 + 3 / Ant 0 + 1 + 2 + 3
(Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5606.600
60.348
55.806
-7.852
68.200
4.542
PK
5650.000
55.520
50.849
-12.680
68.200
4.671
PK
5681.000
63.073
58.282
-28.105
91.178
4.792
PK
5700.000
63.230
58.352
-41.970
105.200
4.878
PK
5720.000
59.030
54.033
-51.770
110.800
4.997
PK
5722.600
63.190
58.176
-53.540
116.729
5.014
PK
5725.000
60.852
55.823
-61.348
122.200
5.029
PK
5741.000
107.603
102.472
N/A
N/A
5.130
PK
5850.000
57.513
51.787
-64.687
122.200
5.726
PK
10
5851.800
59.318
53.585
-58.777
118.095
5.733
PK
11
5855.000
57.182
51.436
-53.618
110.800
5.746
PK
12
5864.400
61.533
55.750
-46.632
108.166
5.783
PK
13
5875.000
55.443
49.623
-49.757
105.200
5.820
PK
14
5885.400
56.698
50.842
-40.781
97.478
5.855
PK
15
5925.000
54.770
48.804
-13.430
68.200
5.967
PK
Flag
Mark
FCC ID: Q9DAPEX037457
Type
Page Number: 351 of 466
16
5968.400
56.840
50.782
-11.360
68.200
6.058
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 352 of 466
Site: AC1
Time: 2017/08/18 - 02:38
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11a at Channel 5180MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5119.765
62.179
58.004
-11.821
74.000
4.174
PK
5150.000
61.094
56.925
-12.906
74.000
4.170
PK
5177.320
120.492
116.414
N/A
N/A
4.078
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 353 of 466
Site: AC1
Time: 2017/08/18 - 02:41
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11a at Channel 5180MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5150.000
48.067
43.898
-5.933
54.000
4.170
AV
5186.590
107.133
103.087
N/A
N/A
4.045
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 354 of 466
Site: AC1
Time: 2017/08/18 - 02:44
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11a at Channel 5180MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5133.985
61.542
57.367
-12.458
74.000
4.175
PK
5150.000
59.764
55.595
-14.236
74.000
4.170
PK
5177.590
120.619
116.542
N/A
N/A
4.077
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 355 of 466
Site: AC1
Time: 2017/08/18 - 02:45
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11a at Channel 5180MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5139.115
47.550
43.375
-6.450
54.000
4.176
AV
5150.000
47.307
43.138
-6.693
54.000
4.170
AV
5181.235
107.948
103.884
N/A
N/A
4.065
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 356 of 466
Site: AC1
Time: 2017/08/18 - 03:08
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11a at Channel 5745MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5605.197
63.386
58.847
-4.814
68.200
4.539
PK
5650.000
61.827
57.156
-6.373
68.200
4.671
PK
5700.000
62.673
57.795
-42.527
105.200
4.878
PK
5720.000
65.758
60.761
-45.042
110.800
4.997
PK
5725.000
70.437
65.408
-51.763
122.200
5.029
PK
5742.395
123.625
118.485
N/A
N/A
5.140
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 357 of 466
Site: AC1
Time: 2017/08/18 - 03:15
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11a at Channel 5745MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5647.190
63.776
59.114
-4.424
68.200
4.662
PK
5650.000
61.955
57.284
-6.245
68.200
4.671
PK
5700.000
62.858
57.980
-42.342
105.200
4.878
PK
5720.000
65.364
60.367
-45.436
110.800
4.997
PK
5725.000
73.981
68.952
-48.219
122.200
5.029
PK
5738.435
123.478
118.363
N/A
N/A
5.115
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 358 of 466
Site: AC1
Time: 2017/08/18 - 03:19
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11a at Channel 5825MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5831.618
122.567
116.940
N/A
N/A
5.627
PK
5850.000
65.882
60.156
-56.318
122.200
5.726
PK
5855.000
63.152
57.406
-47.648
110.800
5.746
PK
5875.000
60.539
54.719
-44.661
105.200
5.820
PK
5925.000
60.168
54.202
-8.032
68.200
5.967
PK
5966.167
62.236
56.182
-5.964
68.200
6.054
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 359 of 466
Site: AC1
Time: 2017/08/18 - 03:24
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11a at Channel 5825MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5828.888
123.322
117.711
N/A
N/A
5.610
PK
5850.000
64.579
58.853
-57.621
122.200
5.726
PK
5855.000
62.286
56.540
-48.514
110.800
5.746
PK
5875.000
59.812
53.992
-45.388
105.200
5.820
PK
5925.000
59.891
53.925
-8.309
68.200
5.967
PK
5929.410
61.517
55.540
-6.683
68.200
5.978
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 360 of 466
Site: AC1
Time: 2017/08/18 - 03:28
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5136.865
62.793
58.618
-11.207
74.000
4.176
PK
5150.000
61.636
57.467
-12.364
74.000
4.170
PK
5186.860
120.146
116.101
N/A
N/A
4.044
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 361 of 466
Site: AC1
Time: 2017/08/18 - 03:32
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5136.145
48.527
44.352
-5.473
54.000
4.175
AV
5150.000
48.472
44.303
-5.528
54.000
4.170
AV
5185.240
107.925
103.875
N/A
N/A
4.050
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 362 of 466
Site: AC1
Time: 2017/08/18 - 03:33
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5147.800
63.349
59.173
-10.651
74.000
4.176
PK
5150.000
60.923
56.754
-13.077
74.000
4.170
PK
5181.550
122.133
118.070
N/A
N/A
4.064
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 363 of 466
Site: AC1
Time: 2017/08/18 - 03:37
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5150.000
48.468
44.299
-5.532
54.000
4.170
AV
5182.090
108.803
104.742
N/A
N/A
4.061
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 364 of 466
Site: AC1
Time: 2017/08/18 - 04:06
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5745MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5625.658
64.040
59.443
-4.160
68.200
4.597
PK
5650.000
61.727
57.056
-6.473
68.200
4.671
PK
5700.000
62.617
57.739
-42.583
105.200
4.878
PK
5720.000
65.826
60.829
-44.974
110.800
4.997
PK
5725.000
70.299
65.270
-51.901
122.200
5.029
PK
5740.745
123.051
117.922
N/A
N/A
5.130
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 365 of 466
Site: AC1
Time: 2017/08/18 - 04:10
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5745MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5620.625
63.853
59.271
-4.347
68.200
4.583
PK
5650.000
62.692
58.021
-5.508
68.200
4.671
PK
5700.000
62.536
57.658
-42.664
105.200
4.878
PK
5720.000
66.174
61.177
-44.626
110.800
4.997
PK
5725.000
72.096
67.067
-50.104
122.200
5.029
PK
5739.425
124.392
119.271
N/A
N/A
5.122
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 366 of 466
Site: AC1
Time: 2017/08/18 - 04:14
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5825MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5822.647
122.489
116.915
N/A
N/A
5.574
PK
5850.000
65.148
59.422
-57.052
122.200
5.726
PK
5855.000
63.293
57.547
-47.507
110.800
5.746
PK
5875.000
60.596
54.776
-44.604
105.200
5.820
PK
5925.000
60.123
54.157
-8.077
68.200
5.967
PK
5937.893
62.183
56.185
-6.017
68.200
5.998
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 367 of 466
Site: AC1
Time: 2017/08/18 - 04:18
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5825MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5829.765
122.370
116.754
N/A
N/A
5.616
PK
5850.000
66.749
61.023
-55.451
122.200
5.726
PK
5855.000
62.845
57.099
-47.955
110.800
5.746
PK
5875.000
61.715
55.895
-43.485
105.200
5.820
PK
5925.000
60.611
54.645
-7.589
68.200
5.967
PK
5925.900
62.028
56.059
-6.172
68.200
5.968
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 368 of 466
Site: AC1
Time: 2017/08/18 - 04:34
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5148.750
67.023
62.850
-6.977
74.000
4.174
PK
5150.000
66.069
61.900
-7.931
74.000
4.170
PK
5193.050
120.241
116.218
N/A
N/A
4.023
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 369 of 466
Site: AC1
Time: 2017/08/18 - 04:36
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5150.000
51.924
47.755
-2.076
54.000
4.170
AV
5196.050
106.693
102.681
N/A
N/A
4.012
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 370 of 466
Site: AC1
Time: 2017/08/18 - 04:33
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5149.100
67.816
63.644
-6.184
74.000
4.173
PK
5150.000
65.739
61.570
-8.261
74.000
4.170
PK
5192.900
121.309
117.286
N/A
N/A
4.023
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 371 of 466
Site: AC1
Time: 2017/08/18 - 04:36
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5150.000
53.357
49.188
-0.643
54.000
4.170
AV
5192.000
107.453
103.427
N/A
N/A
4.027
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 372 of 466
Site: AC1
Time: 2017/08/18 - 05:00
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5755MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5633.600
62.715
58.096
-11.285
74.000
4.620
PK
5650.000
61.348
56.677
-12.652
74.000
4.671
PK
5700.000
62.398
57.520
-42.802
105.200
4.878
PK
5720.000
67.095
62.098
-43.705
110.800
4.997
PK
5725.000
70.910
65.881
-51.290
122.200
5.029
PK
5750.763
119.969
114.781
N/A
N/A
5.187
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 373 of 466
Site: AC1
Time: 2017/08/18 - 05:05
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5755MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5634.825
63.271
58.648
-10.729
74.000
4.623
PK
5650.000
62.469
57.798
-11.531
74.000
4.671
PK
5700.000
63.396
58.518
-41.804
105.200
4.878
PK
5720.000
67.118
62.121
-43.682
110.800
4.997
PK
5725.000
69.395
64.366
-52.805
122.200
5.029
PK
5763.888
121.410
116.150
N/A
N/A
5.259
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 374 of 466
Site: AC1
Time: 2017/08/18 - 05:09
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5795MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5784.562
120.088
114.724
N/A
N/A
5.364
PK
5850.000
62.822
57.096
-59.378
122.200
5.726
PK
5855.000
62.211
56.465
-48.589
110.800
5.746
PK
5875.000
60.989
55.169
-44.211
105.200
5.820
PK
5925.000
60.486
54.520
-13.514
74.000
5.967
PK
5938.462
62.768
56.768
-11.232
74.000
6.000
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 375 of 466
Site: AC1
Time: 2017/08/18 - 05:14
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5795MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5803.913
120.992
115.525
N/A
N/A
5.467
PK
5850.000
62.876
57.150
-59.324
122.200
5.726
PK
5855.000
62.530
56.784
-48.270
110.800
5.746
PK
5875.000
61.260
55.440
-43.940
105.200
5.820
PK
5925.000
60.148
54.182
-13.852
74.000
5.967
PK
5932.950
62.078
56.092
-11.922
74.000
5.987
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 376 of 466
Site: AC1
Time: 2017/08/18 - 05:18
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5127.190
62.668
58.493
-11.332
74.000
4.175
PK
5150.000
60.898
56.729
-13.102
74.000
4.170
PK
5184.835
119.890
115.838
N/A
N/A
4.052
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 377 of 466
Site: AC1
Time: 2017/08/18 - 05:20
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5150.000
48.569
44.400
-5.431
54.000
4.170
AV
5185.825
108.101
104.053
N/A
N/A
4.049
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 378 of 466
Engineer: Kevin Ker
Site: AC1
Time: 2017/08/18 - 05:22
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5143.885
62.370
58.194
-11.630
74.000
4.176
PK
5150.000
59.895
55.726
-14.105
74.000
4.170
PK
5182.225
121.127
117.066
N/A
N/A
4.060
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 379 of 466
Site: AC1
Time: 2017/08/18 - 05:25
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5120.035
48.609
44.434
-5.391
54.000
4.175
AV
5150.000
48.429
44.260
-5.571
54.000
4.170
AV
5182.000
108.783
104.721
N/A
N/A
4.062
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 380 of 466
Site: AC1
Time: 2017/08/18 - 06:00
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5745MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5645.045
63.406
58.752
-4.794
68.200
4.654
PK
5650.000
61.525
56.854
-6.675
68.200
4.671
PK
5700.000
63.252
58.374
-41.948
105.200
4.878
PK
5720.000
65.860
60.863
-44.940
110.800
4.997
PK
5725.000
70.409
65.380
-51.791
122.200
5.029
PK
5743.303
122.577
117.432
N/A
N/A
5.145
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 381 of 466
Site: AC1
Time: 2017/08/18 - 06:04
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5745MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5638.775
63.157
58.523
-5.043
68.200
4.635
PK
5650.000
62.837
58.166
-5.363
68.200
4.671
PK
5700.000
62.831
57.953
-42.369
105.200
4.878
PK
5720.000
66.811
61.814
-43.989
110.800
4.997
PK
5725.000
71.169
66.140
-51.031
122.200
5.029
PK
5742.478
123.578
118.438
N/A
N/A
5.140
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 382 of 466
Site: AC1
Time: 2017/08/18 - 06:08
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5825MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5818.455
122.349
116.799
N/A
N/A
5.550
PK
5850.000
65.579
59.853
-56.621
122.200
5.726
PK
5855.000
62.974
57.228
-47.826
110.800
5.746
PK
5875.000
61.793
55.973
-43.407
105.200
5.820
PK
5925.000
60.214
54.248
-7.986
68.200
5.967
PK
5989.275
61.822
55.729
-6.378
68.200
6.093
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 383 of 466
Site: AC1
Time: 2017/08/18 - 06:12
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5825MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5822.842
121.926
116.351
N/A
N/A
5.575
PK
5850.000
66.865
61.139
-55.335
122.200
5.726
PK
5855.000
63.958
58.212
-46.842
110.800
5.746
PK
5875.000
61.473
55.653
-43.727
105.200
5.820
PK
5925.000
60.951
54.985
-7.249
68.200
5.967
PK
5967.533
63.301
57.244
-4.899
68.200
6.057
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 384 of 466
Site: AC1
Time: 2017/08/18 - 06:27
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5149.300
66.591
62.420
-7.409
74.000
4.171
PK
5150.000
66.131
61.962
-7.869
74.000
4.170
PK
5202.100
119.293
115.301
N/A
N/A
3.992
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 385 of 466
Site: AC1
Time: 2017/08/18 - 06:28
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5150.000
51.942
47.773
-2.058
54.000
4.170
AV
5197.550
106.645
102.638
N/A
N/A
4.006
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 386 of 466
Site: AC1
Time: 2017/08/18 - 06:25
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5147.900
69.553
65.377
-4.447
74.000
4.176
PK
5150.000
66.057
61.888
-7.943
74.000
4.170
PK
5200.050
120.218
116.220
N/A
N/A
3.998
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 387 of 466
Site: AC1
Time: 2017/08/18 - 06:25
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5150.000
53.377
49.208
-0.623
54.000
4.170
AV
5192.050
107.506
103.480
N/A
N/A
4.027
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 388 of 466
Site: AC1
Time: 2017/08/18 - 06:51
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5755MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5618.200
62.900
58.325
-5.300
68.200
4.575
PK
5650.000
61.430
56.759
-6.770
68.200
4.671
PK
5700.000
63.452
58.574
-41.748
105.200
4.878
PK
5720.000
67.522
62.525
-43.278
110.800
4.997
PK
5725.000
70.207
65.178
-51.993
122.200
5.029
PK
5763.800
119.962
114.703
N/A
N/A
5.259
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 389 of 466
Site: AC1
Time: 2017/08/18 - 06:55
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5755MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5619.600
63.069
58.490
-5.131
68.200
4.580
PK
5650.000
61.567
56.896
-6.633
68.200
4.671
PK
5700.000
62.705
57.827
-42.495
105.200
4.878
PK
5720.000
66.871
61.874
-43.929
110.800
4.997
PK
5725.000
69.439
64.410
-52.761
122.200
5.029
PK
5764.237
120.555
115.293
N/A
N/A
5.262
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 390 of 466
Site: AC1
Time: 2017/08/18 - 06:59
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5795MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5797.163
120.733
115.304
N/A
N/A
5.429
PK
5850.000
63.195
57.469
-59.005
122.200
5.726
PK
5855.000
63.159
57.413
-47.641
110.800
5.746
PK
5875.000
62.744
56.924
-42.456
105.200
5.820
PK
5925.000
60.689
54.723
-7.511
68.200
5.967
PK
5939.362
61.609
55.607
-6.591
68.200
6.002
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 391 of 466
Site: AC1
Time: 2017/08/18 - 07:02
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5795MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5805.712
121.085
115.608
N/A
N/A
5.477
PK
5850.000
63.236
57.510
-58.964
122.200
5.726
PK
5855.000
62.195
56.449
-48.605
110.800
5.746
PK
5875.000
61.415
55.595
-43.785
105.200
5.820
PK
5925.000
60.207
54.241
-7.993
68.200
5.967
PK
5970.975
62.477
56.414
-5.723
68.200
6.063
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 392 of 466
Site: AC1
Time: 2017/08/18 - 07:29
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80 at Channel 5210MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5144.200
65.940
61.764
-8.060
74.000
4.176
PK
5150.000
64.038
59.869
-9.962
74.000
4.170
PK
5215.750
114.329
110.377
N/A
N/A
3.951
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 393 of 466
Site: AC1
Time: 2017/08/18 - 07:30
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80 at Channel 5210MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5143.900
52.131
47.955
-1.869
54.000
4.176
AV
5150.000
51.558
47.389
-2.442
54.000
4.170
AV
5217.250
100.009
96.062
N/A
N/A
3.947
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 394 of 466
Site: AC1
Time: 2017/08/18 - 07:27
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80 at Channel 5210MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5149.375
66.758
62.587
-7.242
74.000
4.171
PK
5150.000
64.972
60.803
-9.028
74.000
4.170
PK
5212.150
114.447
110.485
N/A
N/A
3.962
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 395 of 466
Site: AC1
Time: 2017/08/18 - 07:25
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80 at Channel 5210MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5150.000
52.325
48.156
-1.675
54.000
4.170
AV
5193.475
100.152
96.131
N/A
N/A
4.021
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 396 of 466
Site: AC1
Time: 2017/08/18 - 07:53
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80 at Channel 5775MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5639.800
65.347
60.710
-2.853
68.200
4.638
PK
5650.000
64.351
59.680
-3.849
68.200
4.671
PK
5700.000
68.821
63.943
-36.379
105.200
4.878
PK
5720.000
69.951
64.954
-40.849
110.800
4.997
PK
5725.000
69.697
64.668
-52.503
122.200
5.029
PK
5785.200
116.856
111.488
N/A
N/A
5.368
PK
5850.000
67.364
61.638
-54.836
122.200
5.726
PK
5855.000
68.275
62.529
-42.525
110.800
5.746
PK
5875.000
64.777
58.957
-40.423
105.200
5.820
PK
10
5925.000
61.429
55.463
-6.771
68.200
5.967
PK
11
5926.800
63.154
57.183
-5.046
68.200
5.970
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 397 of 466
Site: AC1
Time: 2017/08/18 - 08:00
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80 at Channel 5775MHz Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5639.000
65.340
60.705
-2.860
68.200
4.635
PK
5643.000
66.930
62.282
-1.270
68.200
4.648
PK
5700.000
67.514
62.636
-37.686
105.200
4.878
PK
5720.000
67.852
62.855
-42.948
110.800
4.997
PK
5725.000
67.310
62.281
-54.890
122.200
5.029
PK
5782.600
117.443
112.088
N/A
N/A
5.354
PK
5850.000
64.251
58.525
-57.949
122.200
5.726
PK
5855.000
65.329
59.583
-45.471
110.800
5.746
PK
5875.000
63.331
57.511
-41.869
105.200
5.820
PK
10
5925.000
60.819
54.853
-7.381
68.200
5.967
PK
11
5931.400
62.323
56.341
-5.877
68.200
5.982
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 398 of 466
Site: AC1
Time: 2017/09/09 - 03:36
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 0 + 1 / Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5149.975
58.850
54.681
-15.150
74.000
4.170
PK
5150.000
58.569
54.400
-15.431
74.000
4.170
PK
5242.900
106.690
102.818
N/A
N/A
3.871
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 399 of 466
Site: AC1
Time: 2017/09/09 - 03:38
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 0 + 1 / Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
45.358
41.189
-8.642
54.000
4.170
AV
5244.775
93.543
89.677
N/A
N/A
3.867
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 400 of 466
Site: AC1
Time: 2017/09/09 - 03:38
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 0 + 1 / Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5148.250
59.893
55.718
-14.107
74.000
4.174
PK
5150.000
58.096
53.927
-15.904
74.000
4.170
PK
5233.975
106.707
102.809
N/A
N/A
3.898
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 401 of 466
Site: AC1
Time: 2017/09/09 - 03:40
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 0 + 1 / Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5149.975
46.102
41.933
-7.898
54.000
4.170
AV
5150.000
46.099
41.930
-7.901
54.000
4.170
AV
5231.650
93.922
90.018
N/A
N/A
3.905
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 402 of 466
Site: AC1
Time: 2017/09/09 - 04:42
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5775MHz Ant 0 + 1 / Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5631.800
57.188
52.574
-11.012
68.200
4.614
PK
5650.000
54.918
50.247
-13.282
68.200
4.671
PK
5700.000
55.219
50.341
-49.981
105.200
4.878
PK
5720.000
57.482
52.485
-53.318
110.800
4.997
PK
5725.000
55.359
50.330
-66.841
122.200
5.029
PK
5740.400
98.134
93.007
N/A
N/A
5.127
PK
5850.000
55.316
49.590
-66.884
122.200
5.726
PK
5855.000
54.405
48.659
-56.395
110.800
5.746
PK
5875.000
54.247
48.427
-50.953
105.200
5.820
PK
10
5954.800
57.025
50.990
-11.175
68.200
6.035
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 403 of 466
Site: AC1
Time: 2017/09/09 - 04:43
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5775MHz Ant 0 + 1 / Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5627.800
58.501
53.898
-9.699
68.200
4.603
PK
5650.000
56.062
51.391
-12.138
68.200
4.671
PK
5700.000
57.126
52.248
-48.074
105.200
4.878
PK
5720.000
58.849
53.852
-51.951
110.800
4.997
PK
5725.000
59.463
54.434
-62.737
122.200
5.029
PK
5784.200
106.185
100.822
N/A
N/A
5.363
PK
5850.000
56.120
50.394
-66.080
122.200
5.726
PK
5855.000
56.529
50.783
-54.271
110.800
5.746
PK
5875.000
56.023
50.203
-49.177
105.200
5.820
PK
10
5925.000
56.145
50.179
-12.055
68.200
5.967
PK
11
5988.200
57.683
51.592
-10.517
68.200
6.091
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 404 of 466
Site: AC1
Time: 2017/09/09 - 03:50
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 2 + 3 / Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5148.775
59.337
55.164
-14.663
74.000
4.174
PK
5150.000
58.159
53.990
-15.841
74.000
4.170
PK
5242.900
106.503
102.631
N/A
N/A
3.871
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 405 of 466
Site: AC1
Time: 2017/09/09 - 03:56
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 2 + 3 / Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5149.750
45.060
40.890
-8.940
54.000
4.170
AV
5150.000
45.013
40.844
-8.987
54.000
4.170
AV
5244.700
93.239
89.373
N/A
N/A
3.867
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 406 of 466
Site: AC1
Time: 2017/09/09 - 03:59
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 2 + 3 / Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5146.975
60.444
56.268
-13.556
74.000
4.176
PK
5150.000
59.322
55.153
-14.678
74.000
4.170
PK
5234.125
106.647
102.750
N/A
N/A
3.898
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 407 of 466
Site: AC1
Time: 2017/09/09 - 04:00
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5210MHz Ant 2 + 3 / Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
46.218
42.049
-7.782
54.000
4.170
AV
5231.575
93.716
89.811
N/A
N/A
3.905
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 408 of 466
Site: AC1
Time: 2017/09/09 - 04:59
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5775MHz Ant 2 + 3 / Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5605.800
60.082
55.541
-8.118
68.200
4.540
PK
5650.000
57.327
52.656
-10.873
68.200
4.671
PK
5700.000
55.449
50.571
-49.751
105.200
4.878
PK
5720.000
56.401
51.404
-54.399
110.800
4.997
PK
5725.000
57.241
52.212
-64.959
122.200
5.029
PK
5740.200
98.371
93.245
N/A
N/A
5.125
PK
5850.000
56.769
51.043
-65.431
122.200
5.726
PK
5855.000
54.715
48.969
-56.085
110.800
5.746
PK
5875.000
54.824
49.004
-50.376
105.200
5.820
PK
10
5925.000
55.105
49.139
-13.095
68.200
5.967
PK
11
5959.200
57.759
51.717
-10.441
68.200
6.042
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 409 of 466
Site: AC1
Time: 2017/09/09 - 05:00
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT80+80 at Channel 5775MHz Ant 2 + 3 / Ant 0 + 1 + 2 + 3 (CDD Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5600.000
60.498
55.971
-7.702
68.200
4.528
PK
5650.000
58.182
53.511
-10.018
68.200
4.671
PK
5700.000
58.239
53.361
-46.961
105.200
4.878
PK
5720.000
59.982
54.985
-50.818
110.800
4.997
PK
5725.000
59.552
54.523
-62.648
122.200
5.029
PK
5784.000
106.943
101.581
N/A
N/A
5.361
PK
5850.000
58.048
52.322
-64.152
122.200
5.726
PK
5855.000
57.029
51.283
-53.771
110.800
5.746
PK
5875.000
56.576
50.756
-48.624
105.200
5.820
PK
10
5925.000
56.513
50.547
-11.687
68.200
5.967
PK
11
5990.600
58.451
52.356
-9.749
68.200
6.095
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 410 of 466
Site: AC1
Time: 2017/09/05 - 01:50
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5147.530
60.409
56.233
-13.591
74.000
4.176
PK
5150.000
57.292
53.123
-16.708
74.000
4.170
PK
5175.475
109.180
105.095
N/A
N/A
4.084
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 411 of 466
Site: AC1
Time: 2017/09/05 - 02:44
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
45.862
41.693
-8.138
54.000
4.170
AV
5175.250
91.678
87.592
N/A
N/A
4.085
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 412 of 466
Site: AC1
Time: 2017/09/05 - 02:46
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5139.340
60.982
56.807
-13.018
74.000
4.176
PK
5150.000
58.189
54.020
-15.811
74.000
4.170
PK
5174.755
110.039
105.952
N/A
N/A
4.088
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 413 of 466
Site: AC1
Time: 2017/09/05 - 02:47
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
46.041
41.872
-7.959
54.000
4.170
AV
5176.780
92.005
87.925
N/A
N/A
4.081
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 414 of 466
Site: AC1
Time: 2017/09/05 - 03:20
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5745MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5627.225
60.114
55.513
-8.086
68.200
4.601
PK
5650.000
57.964
53.293
-10.236
68.200
4.671
PK
5700.000
59.137
54.259
-46.063
105.200
4.878
PK
5720.000
59.330
54.333
-51.470
110.800
4.997
PK
5725.000
60.349
55.320
-61.851
122.200
5.029
PK
5740.250
114.696
109.570
N/A
N/A
5.127
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 415 of 466
Site: AC1
Time: 2017/09/05 - 03:21
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5745MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5635.640
59.439
54.814
-8.761
68.200
4.625
PK
5650.000
57.598
52.927
-10.602
68.200
4.671
PK
5700.000
58.834
53.956
-46.366
105.200
4.878
PK
5720.000
59.676
54.679
-51.124
110.800
4.997
PK
5725.000
62.558
57.529
-59.642
122.200
5.029
PK
5740.167
114.661
109.535
N/A
N/A
5.125
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 416 of 466
Site: AC1
Time: 2017/09/05 - 03:23
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5825MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5820.210
107.218
101.658
N/A
N/A
5.559
PK
5850.000
58.730
53.004
-63.470
122.200
5.726
PK
5855.000
58.180
52.434
-52.620
110.800
5.746
PK
5875.000
58.237
52.417
-46.963
105.200
5.820
PK
5925.000
59.075
53.109
-9.125
68.200
5.967
PK
5940.915
60.076
54.070
-8.124
68.200
6.006
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 417 of 466
Site: AC1
Time: 2017/09/05 - 03:25
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT20 at Channel 5825MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5831.618
109.244
103.617
N/A
N/A
5.627
PK
5850.000
57.541
51.815
-64.659
122.200
5.726
PK
5855.000
57.442
51.696
-53.358
110.800
5.746
PK
5875.000
57.835
52.015
-47.365
105.200
5.820
PK
5925.000
57.805
51.839
-10.395
68.200
5.967
PK
5937.795
59.706
53.708
-8.494
68.200
5.998
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 418 of 466
Site: AC1
Time: 2017/09/05 - 03:26
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5148.550
61.605
57.431
-12.395
74.000
4.173
PK
5150.000
59.778
55.609
-14.222
74.000
4.170
PK
5186.450
115.700
111.654
N/A
N/A
4.046
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 419 of 466
Site: AC1
Time: 2017/09/05 - 03:32
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
48.501
44.332
-5.499
54.000
4.170
AV
5188.050
94.549
90.509
N/A
N/A
4.040
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 420 of 466
Site: AC1
Time: 2017/09/05 - 03:33
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5147.200
61.260
57.084
-12.740
74.000
4.176
PK
5150.000
60.322
56.153
-13.678
74.000
4.170
PK
5183.300
115.286
111.229
N/A
N/A
4.057
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 421 of 466
Site: AC1
Time: 2017/09/05 - 03:33
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
48.157
43.988
-5.843
54.000
4.170
AV
5185.850
95.121
91.073
N/A
N/A
4.049
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 422 of 466
Site: AC1
Time: 2017/09/05 - 03:57
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5755MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5642.437
60.123
55.477
-8.077
68.200
4.646
PK
5650.000
57.704
53.033
-10.496
68.200
4.671
PK
5700.000
59.754
54.876
-45.446
105.200
4.878
PK
5720.000
62.112
57.115
-48.688
110.800
4.997
PK
5725.000
62.882
57.853
-59.318
122.200
5.029
PK
5752.075
113.526
108.331
N/A
N/A
5.194
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 423 of 466
Site: AC1
Time: 2017/09/05 - 03:59
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5755MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5645.763
59.729
55.072
-8.471
68.200
4.657
PK
5650.000
58.006
53.335
-10.194
68.200
4.671
PK
5700.000
58.669
53.791
-46.531
105.200
4.878
PK
5720.000
59.560
54.563
-51.240
110.800
4.997
PK
5725.000
63.392
58.363
-58.808
122.200
5.029
PK
5741.663
112.895
107.760
N/A
N/A
5.136
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 424 of 466
Site: AC1
Time: 2017/09/05 - 03:59
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5795MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5791.987
110.108
104.706
N/A
N/A
5.402
PK
5850.000
56.985
51.259
-65.215
122.200
5.726
PK
5855.000
57.727
51.981
-53.073
110.800
5.746
PK
5875.000
56.754
50.934
-48.446
105.200
5.820
PK
5925.000
58.018
52.052
-10.182
68.200
5.967
PK
5952.750
59.703
53.672
-8.497
68.200
6.031
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 425 of 466
Site: AC1
Time: 2017/09/05 - 04:02
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11n-HT40 at Channel 5795MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5808.750
108.665
103.171
N/A
N/A
5.494
PK
5850.000
57.276
51.550
-64.924
122.200
5.726
PK
5855.000
57.272
51.526
-53.528
110.800
5.746
PK
5875.000
55.836
50.016
-49.364
105.200
5.820
PK
5925.000
56.984
51.018
-11.216
68.200
5.967
PK
5941.275
59.723
53.716
-8.477
68.200
6.007
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 426 of 466
Site: AC1
Time: 2017/09/05 - 04:03
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5141.590
59.856
55.680
-14.144
74.000
4.176
PK
5150.000
58.954
54.785
-15.046
74.000
4.170
PK
5176.285
111.204
107.122
N/A
N/A
4.081
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 427 of 466
Site: AC1
Time: 2017/09/05 - 04:40
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
45.831
41.662
-8.169
54.000
4.170
AV
5175.880
95.188
91.105
N/A
N/A
4.084
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 428 of 466
Site: AC1
Time: 2017/09/05 - 04:42
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5139.790
59.822
55.647
-14.178
74.000
4.175
PK
5150.000
57.969
53.800
-16.031
74.000
4.170
PK
5177.410
111.365
107.287
N/A
N/A
4.078
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 429 of 466
Site: AC1
Time: 2017/09/05 - 04:43
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5180MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
46.011
41.842
-7.989
54.000
4.170
AV
5176.240
93.523
89.441
N/A
N/A
4.082
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 430 of 466
Site: AC1
Time: 2017/09/05 - 05:09
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5745MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5621.533
59.823
55.238
-8.377
68.200
4.585
PK
5650.000
58.205
53.534
-9.995
68.200
4.671
PK
5700.000
57.640
52.762
-47.560
105.200
4.878
PK
5720.000
57.663
52.666
-53.137
110.800
4.997
PK
5725.000
57.808
52.779
-64.392
122.200
5.029
PK
5740.415
108.995
103.868
N/A
N/A
5.127
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 431 of 466
Site: AC1
Time: 2017/09/05 - 05:11
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5745MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5625.163
59.325
54.730
-8.875
68.200
4.595
PK
5650.000
57.508
52.837
-10.692
68.200
4.671
PK
5700.000
58.359
53.481
-46.841
105.200
4.878
PK
5720.000
56.952
51.955
-53.848
110.800
4.997
PK
5725.000
57.494
52.465
-64.706
122.200
5.029
PK
5750.150
109.117
103.933
N/A
N/A
5.184
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 432 of 466
Site: AC1
Time: 2017/09/05 - 05:12
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5825MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5819.625
114.292
108.735
N/A
N/A
5.556
PK
5850.000
58.281
52.555
-63.919
122.200
5.726
PK
5855.000
58.357
52.611
-52.443
110.800
5.746
PK
5875.000
57.598
51.778
-47.602
105.200
5.820
PK
5925.000
58.684
52.718
-9.516
68.200
5.967
PK
5945.985
59.348
53.330
-8.852
68.200
6.018
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 433 of 466
Site: AC1
Time: 2017/09/05 - 05:15
Limit: FCC_Part15.407_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT20 at Channel 5825MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5830.643
115.260
109.639
N/A
N/A
5.621
PK
5850.000
58.998
53.272
-63.202
122.200
5.726
PK
5855.000
58.506
52.760
-52.294
110.800
5.746
PK
5875.000
59.574
53.754
-45.626
105.200
5.820
PK
5925.000
57.842
51.876
-10.358
68.200
5.967
PK
5962.462
60.519
54.471
-7.681
68.200
6.048
PK
Flag
Mark
Type
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 434 of 466
Site: AC1
Time: 2017/09/05 - 05:17
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5144.900
60.608
56.432
-13.392
74.000
4.175
PK
5150.000
58.503
54.334
-15.497
74.000
4.170
PK
5175.650
111.748
107.664
N/A
N/A
4.085
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 435 of 466
Site: AC1
Time: 2017/09/05 - 05:19
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Horizontal
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
Type
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
5150.000
46.674
42.505
-7.326
54.000
4.170
AV
5187.550
96.014
91.972
N/A
N/A
4.042
AV
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 436 of 466
Site: AC1
Time: 2017/09/05 - 05:21
Limit: FCC_Part15.209_RE(3m)
Engineer: Kevin Ker
Probe: BBHA9120D_1GHz_18GHz_TW
Polarity: Vertical
EUT: ACCESS POINT - Directional Antenna
Power: POE (DC 57V)
(MT-484052/NVH)
Test Mode: Transmit by 802.11ac-VHT40 at Channel 5190MHz Ant 0 + 1 + 2 + 3 (Beam-Forming Mode)
No
Flag
Mark
Frequency
Measure
Reading
Over Limit
Limit
Factor
(MHz)
Level
Level
(dB)
(dBuV/m)
(dB)
(dBuV/m)
(dBuV)
Type
5139.300
60.316
56.141
-13.684
74.000
4.176
PK
5150.000
58.403
54.234
-15.597
74.000
4.170
PK
5183.650
113.161
109.105
N/A
N/A
4.056
PK
Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB)
Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB)
FCC ID: Q9DAPEX037457
Page Number: 437 of 466
Download: APEX037457 ACCESS POINT Test Report _20171205_v1 - Annex D-UNII Data-APEX0374_Part9 Hewlett Packard Enterprise Company
Mirror Download [FCC.gov]APEX037457 ACCESS POINT Test Report _20171205_v1 - Annex D-UNII Data-APEX0374_Part9 Hewlett Packard Enterprise Company
Document ID3700379
Application IDeU/rXckNTrQ9+90DtMSyPw==
Document DescriptionTest Report_20171205_v1 - Annex D-UNII Data-APEX0374_Part9
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize458.89kB (5736156 bits)
Date Submitted2018-01-02 00:00:00
Date Available2018-01-13 00:00:00
Creation Date2017-12-05 22:52:25
Producing SoftwareFoxit PhantomPDF - Foxit Corporation
Document Lastmod2017-12-05 22:52:25
Document TitleTest Report_20171205_v1 - Annex D-UNII Data-APEX0374_Part9
Document Author: Kevin Guo

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.7
Linearized                      : No
Page Count                      : 119
Producer                        : Foxit PhantomPDF - Foxit Corporation
Author                          : Kevin Guo
Create Date                     : 2017:12:05 22:52:25
Modify Date                     : 2017:12:05 22:52:25
