Calibration Laboratory of
Schmid & Partner
Engineering AG
Zeugttausstrasse 43, 8004 Zurich, Switzerland
Schweilerischer Kalibrierdiensl
Service suisse d‘ételonnage
Servizio svizzera di tarllura
Swiss Calibration Service
Accredited by the Swiss Accreditation Service (SAS) Accreditaticn Na.: SCS 0108
The Swiss Accreditation Service is one at the signatories to the EA
Multilateral Agreement tor the recognition at calibration certificates
Glossary:
TSL tissue simulating liquid
ConvF sensitivity in TSL/ NORM x,y,z
N/A not applicable or not measured
Calibration is Performed According to the Following Standards:
a) IEEE Std 1528-2013, “IEEE Recommended Practice for Determining the Peak Spatial-
Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless
Communications Devices: Measurement Techniques". June 2013
b) IEC 62209-1, “Measurement procedure for the assessment of Specific Absorption Rate
(SAR) from hand-held and body-mounted devices used next to the ear (frequency range of
300 MHz to 6 GHz)". July 2016
c) IEC 62209-2, "Procedure to determine the Specific Absorption Rate (SAR) for wireless
communication devices used in close proximity to the human body (frequency range of 30
MHz to 6 GHz)", March 2010
d) KDB 865664, “SAR Measurement Requirements for 100 MHz to 6 GHZ"
Additional Documentation:
e) DASY4/5 System Handbook
Methods Applied and Interpretation of Parameters:
- Measurement Conditions: Further details are available from the Validation Report at the end
of the certificate. All figures stated in the certificate are valid at the frequency indicated.
0 Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed
point exactly below the center marking of the flat phantom section, with the arms oriented
parallel to the body axis.
- Feed Point Impedance and Fleturn Loss: These parameters are measured with the dipole
positioned under the liquid filled phantom. The impedance stated is transformed from the
measurement at the SMA connector to the feed point. The Return Loss ensures low
reflected power. No uncertainty required.
0 Electrical Delay: One—way delay between the SMA connector and the antenna feed point.
No uncertainty required.
. SAFi measured: SAR measured at the stated antenna input power.
. SAFl normalized: SAR as measured, normalized to an input power of 1 W at the antenna
connector.
- SAH for nominal TSL parameters: The measured TSL parameters are used to calculate the
nominal SAFl result.
The reported uncertainty of measurement is stated as the standard uncertainty of measurement
multiplied by the coverage factor k=2, which for a normal distribution corresponds to a coverage
probability of approximately 95%.

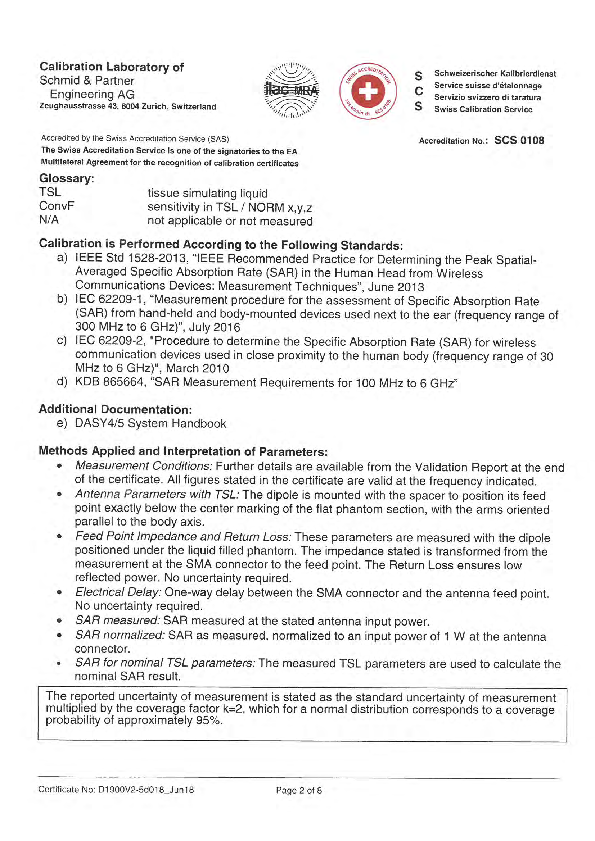

Certificate No: D1900V2-5d018jun16 Page 2 ol 3
Measurement Conditions
DASY system configuration. as far as not iven on page 1.
DASY Version DASY5 V52 t0.1
Extrapolation Advanced Extrapolation
Phantom Modular Flat Phantom
Distance Dipole Center - TSL 10 mm with Spacer
Zoom Scan Resolution dx. dy, dz = 5 mm
Frequency 1900 MHZ 11 MHz
Head TSL parameters
The following parameters and calculations were applied.
Temperature 7 Permittivity Conductivity
Nominal Head TSL parameters 22.0 "C I 40.0 1.40 mho/m
Measured Head TSL parameters (220 1 0.2) “C I 40.6 x 6 ”/a 1.35 mho/m 2 6 “/a
Head TSL temperature change during test < 0.5 “C I
SAR result with Head TSL
SAR averaged over1 cm1 (1 g) of Head TSL Condition
SAR measured 250 mW input power 9.77 W/kg
SAR for nominal Head TSL parameters
normalized to 1W
40.1 Wlkg 217.0 °/o (k=2)
SAR averaged over 10 cm3 (10 g) of Head TSL
condition
SAR measured
250 mW input power
5.22 W/kg
SAR for nominal Head TSL parameters
normalized to 1W
21.2 Wlkg 216.5 % (k=2}
Body TSL parameters
The tollowingpararneters and calculations were applied.
Temperature | Permittivity | Conductivity
Nominal Body TSL parameters 22 0 FC 53.3 I 1.52 mho/m
Measured Body TSL parameters (220 z 0.2) cc I 54.9 1 s % I 1.46 mno/m : e %
Body TSL temperature change during test < 0 5 c'C I I ----
SAR result with Body TSL
SAR averaged over 1 cm3 (1 g) of Body TSL Condition
SAR measured 250 mW input power 975 W/kg
SAR for nominal Body TSL parameters
normalized to 1W
40.2 W/kg 217.0 °/.. 0:2)
SAH averaged over 10 cm3 (10 g) of Body TSL
condition
SAR measured
250 mW input power
5 24 W/kg
EAR for nominal Body TSL parameters
normalized to 1W
21.4 Wlkg : 16.5 % (k=2)
Certificate No: 01900V2r5d018jun18
Page 3 of 8
Appendix (Additional assessments outside the scope of $68 0108)
Antenna Parameters with Head TSL
Impedance. transformed to feed point 52.2 $2 + 1.6 jQ
Return Loss - 314 dB
Antenna Parameters with Body TSL
Impedance, transformed to feed point 47.1 9 + 3.0 in
Return Loss , 27.3 dB
General Antenna Parameters and Design
Electrical Delay (one direction) 1.195 ns
After long term use with 100W radiated power. only a slight warming of the dipole near the leedpoint can be measured.
The dipole is made of standard semirigid coaxial cable The center conductor of the feeding line is directly connected to the
second arm of the dipole. The antenna is theretore short | L $4
\ \ i I
‘ T
2‘59 , ‘ ‘ t
' L T I I ' .
\ l \ l
1,.
STfiRT 1 Feaaea 960 MHz 0 2 mama 8% MHz
Certificate No: D1900V2-5d018_Jun18 Page 3 018
A3 In Collaboration with \“U \I "I” III, 7’ ‘I'Eiki‘f
TTL LIN—3L “V ’— l \ new
V CALIBRATION LABORATORV am CNASm
Add-No.51Xueyuankoud.HaidianDislricLBeijing,l00|9l.CIrinrt 3R» $ V CALIBRATION
Tcl' +85-10-62304533-2079 Fax: +86-lO-62304633-2504 "Inm‘b‘ CNAS 1.0570
E-rnail: clll@clrinattl.com lran/mvwchinanlcn
Client UnionTrust Certificate No: 218-60057
CALIBRATION CERTIFICATE
Object D2450V2 - SN: 809
Calibration Procedure(s) FF-Zl1-003—01
Calibration Procedures for dipole validation kits
Calibration date: March 22, 2018
This calibration Certificate documents the traceability to national standards, which realize the physical units of
measurements(Sl). The measurements and the uncertainties with confidence probability are given on the following
pages and are part of the certificate.
All calibrations have been conducted in the closed laboratory facility: environment temperature(2213)'c and
humidity<70%.
Calibration Equipment used (M&TE critical for calibration)
Primary Standards ID # Cal Date(Calibrated by, Certificate No.) Scheduled Calibration
Power Meter NRVD 102083 01-Nov-17 (C‘I'I'L, No.J17X08756) Oct—18
Power sensor NRV—ZS 100542 01-Nov»17 (CTTL, No.J17X08756) Oct-18
Reference Probe EX3DV4 SN 7464 12-Sep-17(SPEAG,No.EX3-7464_Sep17) Sap-18
DAE4 SN 1525 02-061717(SPEAG,N0DAE4-1525_Oct17) Oct-18
Secondary Standards ID # Cal Date(Calibrated by, Certificate No.) Scheduled Calibration
Signal Generator E4438C MY49071430 23—Jan-18 (CTTL, N0.J18X00560) Jan-19
NetworkAnalyzer E5239A MY55491241 29-Jun-17 (CTTL, NotJ18X00561) Jun-18
Name Function Signature
Calibrate“ by: Zhao Jing SAR Test Engineer 6 {I
REVIEWed by: Lin Hao SAR Test Engineer fifé
Approved by: Qi Dianyuan SAR Project Leader %
Issued: March 25, 2018
This calibration certificate shall not be reproduced except in full without written approval of the laboratory
Cerlificate No: 21860057 Page I oftt
A“ In Collaboration with
_TTL M
v CALIBRA'HON mom‘ronv
Add: No.5l Xueyuan Road. HaidlauDislrict, Beijing. 100l9l, China
Tel: +86~l0~62304633-2079 Fax: +86»l0-62304633-2501I
E-mail: citl@chinmll.com http llmvwchinaitlm
Glossary:
TSL tissue simulating liquid
ConvF sensitivity in TSL/ NORMx,y,z
NlA not applicable or not measured
Calibration is Performed According to the Following Standards:
a) IEEE Std 1528-2013, “IEEE Recommended Practice for Determining the Peak
Spatial-Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless
Communications Devices: Measurement Techniques". June 2013
b) IEC 62209-1, ”Measurement procedure for assessment of specific absorption rate of human
exposure to radio frequency fields from hand-held and body-mounted wireless
communication devices- Part 1: Device used next to the ear (Frequency range of 300MHz to
SGHz)“. July 2016
c) IEC 62209-2, “Procedure to measure the Specific Absorption Rate (SAR) For wireless
communication devices used in close proximity to the human body (frequency range of
30MHz to 6GH2)", March 2010
d) KDBB65664, SAR Measurement Requirements for 100 MHz to 6 GHz
Additional Documentation:
e) DASY4I5 System Handbook
Methods Applied and Interpretation of Parameters:
Measurement Conditions: Further details are available from the Validation Report at the end
of the certificate. All figures stated in the cenificate are valid at the frequency indicated.
Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed
point exactly below the center marking of the flat phantom section. with the arms oriented
parallel to the body axis.
Feed Point Impedance and Return Loss: These parameters are measured with the dipole
positioned under the liquid filled phantom. The impedance stated is transformed from the
measurement at the SMA connector to the feed point. The Return Loss ensures low
reflected power. No uncertainty required.
Electrical Delay: One-way delay between the SMA connector and the antenna feed point.
No uncertainty required.
SAR measured: SAR measured at the stated antenna input power.
SAR normalized: SAR as measured, normalized to an input power of 1 W at the antenna
connector.
SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the
nominal SAR result.
The reported uncertainty of measurement is stated as the standard uncertainty of
Measurement multiplied by the coverage factor k=2. which for a normal distribution ‘
Corresponds to a coverage probability of approximately 95%.
Centficate No: Nit—60057 Page 2 of8
TT
In Collaboration with
$2939
CALIBRAHON LABORATORY
Add: No.51 Xucyuan Road. llaidinn District, Beijing. l0019l. China
Tel: +86—l0-62304633-2079
E-mail: cut@chinaul.com
Measurement Conditions
FM: +80710»62304633-2504
htux/hmnachiimnlm
DASY system configuration. as far as not given on page 1.
DASY Verslon DASY52 521001446
Extrapolation Advanced Extrapolation
Phantom Triple Flat Phantom 5.10
Distance Dipole Center - TSL 10 mm with Spacer
Zoom Scan Resolution dx. dy. dz = 5 mm
Frequency 2450 MHz 11 MHz
Head TSL parameters
The following parameters and calculations were applied.
Temperature Permittivity Conductivity
Nomlnal Head TSL parameters 22.0 “C 39.2 1.80 mholm
Measured Head TSL parameters (22.0 :t 0.2) “C 403 i 6 % 1.84 mho/m 16 %
Head TSL temperature change during test <1.0 "C »-»-
SAR result with Head TSL
Condition
SAR averaged over'l cm3 (1 g) at Head TSL
SAR measured
250 mW input power
13.1 mW/g
SAR for nominal Head TSL parameters
normalized to 1W
52.2 mW lg $18.8 % (k=2)
SAR averaged over 10 cm1 (10 g) of Head TSL
Condilion
SAR measured
250 mW input power
6.09 mW / g
SAR tor nominal Head TSL parameters
normalized [O 1W
24.3 mW lg 118.7 “la (k=2)
Body TSL parameters
The following parameters and calculations were applied.
Temperature Permlttlvlty Conduotlvlty
Nominal Body TSL parameters 220 °C 52.7 1.95 mho/m
Measured Body TSL parameters (22.0 i 0.2) “C 51.3 d: 6 % 2.00 mho/m t 6 %
Body TSL temperature change during test <10 “C ..._
SAR result with Body TSL
SAR averaged over 1 cm1 11 g) of Body TSL Condition
SAR measured
250 mW input power
12.9 leg
SAR for nominal Body TSL parameters
normalized to 1W
50.7 mW lg 218.8 % (k=2)
SAR averaged over 10 cm" (10 g) of Body TSL
Condition
SAR measured
250 mW input power
5.93 mW 1 g
SAR tor nominal Body TSL parameters
normalized to 1W
23.5 mW lg 118.7 “la (k=2)
Certificate No: Z18v60057
Page 3 of B
9% In Collaboration with
: #9—
£71] fAuanAnoneuaongv
Add: No.51 Xucwan Road, llnitlian District, Beijing, |0019L China
Tel: +86- IO-62304633-2079 Fax' 86—10-6230 1 2 450 GHz 24 91 05
40.00
30.00
20.00
10.00
0.00
- 1 0.00 1
720.00
60.00
40.00
50.00
1 0111: Start 2.25000 GHZ —
SID 265000 GHl
- s11 Smllh 1.000UI 1 oou
2.450 GHz 4054 o
366 01 pH 5 as n
2 . >Ch1: Start 2.25000 GHZ —- Stop 2.65000 GHZ
Cerliflcale No: Z18760057 Page 6 of8
9" In Collaboration with
T T s_P_ea_s_
v CAUBRATION LABORATORY
Add. No.51 Xucyuan Road, Haidian District. Beijing. 100191. China
Tel: +86-10-62304633-207‘) Fax: +86-10-62304633-2504
E-mail: cul@chinanl.com |111p1//\vww.chiuatll cn
DASYS Validation Report for Body TSL DaIe: 03.22.2018
Test Laboratory: CTTL, Beijing, China
DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN: 809
Communication System: UID 0, CW; Frequency: 2450 MHz; Duty Cycle: 1:1
Medium paramelers used: f: 2450 MHz; 5 = 1.998 S/m; e, = 51.28; p = 1000 kglm3
Phantom section: Left Section
Measurement Standard: DASYS (IEEE/IEC/ANSI C63.19-2007)
DASYS Configuration:
- Probe: EX3DV4 - SN7464; ConvF(8.09, 8,09, 8.09); Calibrated: 9/12/2017;
- Sensor-Surface: 1.4mm (Mechanical Surface Detection)
- Electronics: DAE4 8111525; Calibrated: 10/2/2017
. Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1161/1
- Measurement SW: DASY52, Version 5210(0); SEMCAD X Version 14.6.10
(7417)
Dipole Calibration/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx:5mm,
dy=5mm, dz=5mm
Reference Value = 97.63 V/m; Power Drifi = 0.01 dB
Peak SAR (extrapolated) = 27.2 W/kg
SAR(1 g) = 12.9 W/kg; SAR(10 g) = 5.93 W/kg
Maximum value of SAR (measured): 21.6 W/kg
dB
-4.55
$.09
-1 3.54
48.11}
L.
-22.73
0 (13 = 21.6 W/kg = 13.34 (lBW/kg
Certificate No: Z,18»60057 Page 7 of8
fi In Collaboration with
- S e e a a
CALIBRATION MIDRA'I'DRV
Add: 1111.51 Xue'yuan Road. Haidian Dislricl, Beijing. 100191, China
Tel: +86710762304633-2079 m: +86-l0-62304633-2504
E-mm‘l: cltl@chiualll.com I1llp://\V\\'\\'.cl\inattl.cn
Impedance Measurement Plot for Body TSL
Tr 1 SH LogM IDIOOdB/ 010MB
21506112 .22 33 dB
ChI: SIarI 2125000 GHz — SIG 2165000 GHZ
- 511 mm 1 000w 1 mu 1
> 1 2 450 GHZ 49.97 0 I
467 25% 7190
2 >ChI: Stan 2.275099 GHZ — Stop 2.65000 GHZ
Certificate N01218-60057 Page 8 of8
Download: X565 Mobile Phone RF Exposure Info FCC_SAR_Appendix_C2 SMT TELECOMM HK LIMITED
Mirror Download [FCC.gov]X565 Mobile Phone RF Exposure Info FCC_SAR_Appendix_C2 SMT TELECOMM HK LIMITED
Document ID3952575
Application IDWQ+yDQUeBpimi5MhPNpy7Q==
Document DescriptionFCC_SAR_Appendix_C2
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeRF Exposure Info
Display FormatAdobe Acrobat PDF - pdf
Filesize177.05kB (2213150 bits)
Date Submitted2018-08-06 00:00:00
Date Available2018-08-06 00:00:00
Creation Date2018-07-24 11:23:18
Producing SoftwareKONICA MINOLTA bizhub C308
Document Lastmod2018-07-31 14:46:20
Document TitleFCC_SAR_Appendix_C2
Document CreatorKM_C308

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Create Date                     : 2018:07:24 11:23:18+08:00
Creator                         : KM_C308
Modify Date                     : 2018:07:31 14:46:20+08:00
XMP Toolkit                     : Adobe XMP Core 5.4-c005 78.147326, 2012/08/23-13:03:03
Metadata Date                   : 2018:07:31 14:46:20+08:00
Creator Tool                    : KM_C308
Format                          : application/pdf
Document ID                     : uuid:70e5defa-7e03-449b-a9aa-1f4f62e6c9e7
Instance ID                     : uuid:2f109482-ae24-4f5d-915f-0fd1df77c8fb
Producer                        : KONICA MINOLTA bizhub C308
Page Count                      : 15
