Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.26

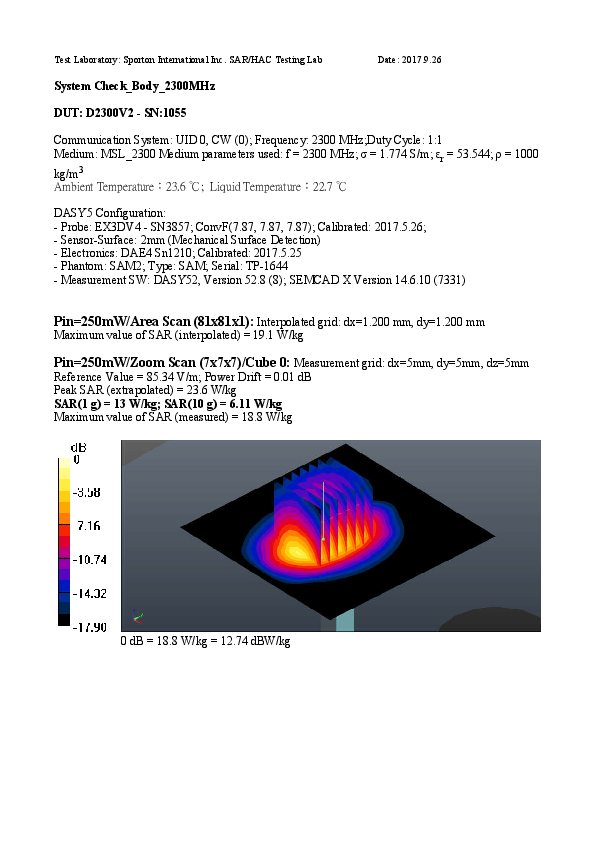

System Check_Body_2300MHz
DUT: D2300V2 - SN:1055
Communication System: UID 0, CW (0); Frequency: 2300 MHz;Duty Cycle: 1:1
Medium: MSL_2300 Medium parameters used: f = 2300 MHz; σ = 1.774 S/m; εr = 53.544; ρ = 1000
kg/m3
Ambient Temperature:23.6 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.87, 7.87, 7.87); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM2; Type: SAM; Serial: TP-1644
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 19.1 W/kg
Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 85.34 V/m; Power Drift = 0.01 dB
Peak SAR (extrapolated) = 23.6 W/kg
SAR(1 g) = 13 W/kg; SAR(10 g) = 6.11 W/kg
Maximum value of SAR (measured) = 18.8 W/kg
0 dB = 18.8 W/kg = 12.74 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.23
System Check_Body_2450MHz
DUT: D2450V2 - SN:840
Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1
Medium: MSL_2450 Medium parameters used: f = 2450 MHz; σ = 2.003 S/m; εr = 53.104; ρ = 1000
kg/m3
Ambient Temperature:23.5 ℃; Liquid Temperature:22.5 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.7, 7.7, 7.7); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 20.1 W/kg
Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 72.08 V/m; Power Drift = 0.16 dB
Peak SAR (extrapolated) = 27.0 W/kg
SAR(1 g) = 13.4 W/kg; SAR(10 g) = 6.29 W/kg
Maximum value of SAR (measured) = 20.2 W/kg
0 dB = 20.2 W/kg = 13.05 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.26
System Check_Body_2600MHz
DUT: D2600V2 - SN:1061
Communication System: UID 0, CW (0); Frequency: 2600 MHz;Duty Cycle: 1:1
Medium: MSL_2600 Medium parameters used: f = 2600 MHz; σ = 2.198 S/m; εr = 52.452; ρ = 1000
kg/m3
Ambient Temperature:23.3 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.59, 7.59, 7.59); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 16.1 W/kg
Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 78.38 V/m; Power Drift = -0.08 dB
Peak SAR (extrapolated) = 22.3 W/kg
SAR(1 g) = 14.1 W/kg; SAR(10 g) = 6.44W/kg
Maximum value of SAR (measured) = 22.1 W/kg
0 dB = 22.1 W/kg = 13.44 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.28
System Check_Body_5250MHz
DUT: D5GHzV2-SN:1113
Communication System: UID 0, CW (0); Frequency: 5250 MHz;Duty Cycle: 1:1
Medium: MSL_5000 Medium parameters used: f = 5250 MHz; σ = 5.379 S/m; εr = 49.115; ρ = 1000
kg/m3
Ambient Temperature:23.5 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(4.72, 4.72, 4.72); Calibrated: 2017.5.26;
- Sensor-Surface: 1.4mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
CW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm
Maximum value of SAR (interpolated) = 17.4 W/kg
CW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm
Reference Value = 39.64 V/m; Power Drift = -0.04 dB
Peak SAR (extrapolated) = 28.4 W/kg
SAR(1 g) = 7.69 W/kg; SAR(10 g) = 2.22 W/kg
Maximum value of SAR (measured) = 16.9 W/kg
0 dB = 16.9 W/kg = 12.28 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.29
System Check_Body_5600MHz
DUT: D5GHzV2-SN:1113
Communication System: UID 0, CW (0); Frequency: 5600 MHz;Duty Cycle: 1:1
Medium: MSL_5000 Medium parameters used: f = 5600 MHz; σ = 5.872 S/m; εr = 48.306; ρ = 1000
kg/m3
Ambient Temperature:23.5 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(4.01, 4.01, 4.01); Calibrated: 2017.5.26;
- Sensor-Surface: 1.4mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
CW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm
Maximum value of SAR (interpolated) = 21.0 W/kg
CW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm
Reference Value = 43.01 V/m; Power Drift = -0.04 dB
Peak SAR (extrapolated) = 32.3 W/kg
SAR(1 g) = 8.19 W/kg; SAR(10 g) = 2.37 W/kg
Maximum value of SAR (measured) = 20.4 W/kg
0 dB = 20.4 W/kg = 13.10 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.30
System Check_Body_5750MHz
DUT: D5GHzV2-SN:1113
Communication System: UID 0, CW (0); Frequency: 5750 MHz;Duty Cycle: 1:1
Medium: MSL_5000 Medium parameters used: f = 5750 MHz; σ = 6.07 S/m; εr = 47.985; ρ = 1000
kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(4.31, 4.31, 4.31); Calibrated: 2017.5.26;
- Sensor-Surface: 1.4mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM2; Type: SAM; Serial: TP-1644
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
CW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm
Maximum value of SAR (interpolated) = 20.1 W/kg
CW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm
Reference Value = 37.97 V/m; Power Drift = 0.08 dB
Peak SAR (extrapolated) = 31.4 W/kg
SAR(1 g) = 7.83 W/kg; SAR(10 g) = 2.19 W/kg
Maximum value of SAR (measured) = 20.9 W/kg
0 dB = 20.9 W/kg = 13.2 dBW/kg
FCC SAR Test Report
Appendix B.
Report No. : FA792101
Plots of High SAR Measurement
The plots are shown as follows.
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158 / FAX : +86-512-57900958
FCC ID : WYPPC2100
Page B1 of B1
Issued Date : Dec. 04, 2017
Form version. : 170509
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.28
01_GSM850_GPRS 2 Tx slots_Left Cheek_0mm_Ch128
Communication System: UID 0, GPRS/EDGE (2 Tx slots) (0); Frequency: 824.2 MHz;Duty Cycle:1:4.15
Medium: HSL_850 Medium parameters used: f = 824.2 MHz; σ = 0.897 S/m; εr = 42.282; ρ = 1000kg/m3
Ambient Temperature:23.3 ℃; Liquid Temperature:22.8 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.52, 10.52, 10.52); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch128/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.573 W/kg
Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 8.774 V/m; Power Drift = 0.03 dB
Peak SAR (extrapolated) = 0.727 W/kg
SAR(1 g) = 0.625 W/kg; SAR(10 g) = 0.485 W/kg
Maximum value of SAR (measured) = 0.686 W/kg
0 dB = 0.686 W/kg = -1.64 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.29
02_GSM1900_GPRS 2 Tx slots_Right Cheek_0mm_Ch661
Communication System: UID 0, GPRS/EDGE (2 Tx slots) (0); Frequency: 1880 MHz;Duty Cycle:1:4.15
Medium: HSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.412 S/m; εr = 39.502; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.32, 8.32, 8.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch661/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.539 W/kg
Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 5.255 V/m; Power Drift = -0.03 dB
Peak SAR (extrapolated) = 0.543 W/kg
SAR(1 g) = 0.414 W/kg; SAR(10 g) = 0.264 W/kg
Maximum value of SAR (measured) = 0.496 W/kg
0 dB = 0.496 W/kg = -3.05 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.28
03_WCDMA Band V_RMC 12.2Kbps_Left Cheek_0mm_Ch4233
Communication System: UID 0, UMTS (0); Frequency: 846.6 MHz;Duty Cycle: 1:1
Medium: HSL_850 Medium parameters used: f = 846.6 MHz; σ = 0.918 S/m; εr = 41.983; ρ = 1000 kg/m3
Ambient Temperature:23.3 ℃; Liquid Temperature:22.8 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.52, 10.52, 10.52); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch4233/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.782 W/kg
Ch4233/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 10.43 V/m; Power Drift = 0.03 dB
Peak SAR (extrapolated) = 0.835 W/kg
SAR(1 g) = 0.689 W/kg; SAR(10 g) = 0.537 W/kg
Maximum value of SAR (measured) = 0.787 W/kg
0 dB = 0.787 W/kg = -1.04 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.29
04_WCDMA Band IV_RMC 12.2Kbps_Right Cheek_0mm_Ch1513
Communication System: UID 0, UMTS (0); Frequency: 1752.6 MHz;Duty Cycle: 1:1
Medium: HSL_1750 Medium parameters used: f = 1752.6 MHz; σ = 1.348 S/m; εr = 41.132; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.58, 8.58, 8.58); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch1513/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.808 W/kg
Ch1513/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 5.872 V/m; Power Drift = -0.03 dB
Peak SAR (extrapolated) = 0.945 W/kg
SAR(1 g) = 0.722 W/kg; SAR(10 g) = 0.470 W/kg
Maximum value of SAR (measured) = 0.829 W/kg
0 dB = 0.829 W/kg = -0.81 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.29
05_WCDMA Band II_RMC 12.2Kbps_Right Cheek_0mm_Ch9538
Communication System: UID 0, UMTS (0); Frequency: 1907.6 MHz;Duty Cycle: 1:1
Medium: HSL_1900 Medium parameters used: f = 1907.6 MHz; σ = 1.443 S/m; εr = 39.361; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.32, 8.32, 8.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch9538/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.965 W/kg
Ch9538/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 7.331 V/m; Power Drift = -0.09 dB
Peak SAR (extrapolated) = 0.966 W/kg
SAR(1 g) = 0.746 W/kg; SAR(10 g) = 0.477 W/kg
Maximum value of SAR (measured) = 0.883 W/kg
0 dB = 0.883 W/kg = -0.54 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.28
06_CDMA2000 BC10_RC3 SO55 _Left Cheek_0mm_Ch684
Communication System: UID 0, CDMA2000 (0); Frequency: 823.1 MHz;Duty Cycle: 1:1
Medium: HSL_850 Medium parameters used: f = 823.1 MHz; σ = 0.896 S/m; εr = 42.291; ρ = 1000kg/m3
Ambient Temperature:23.3 ℃; Liquid Temperature:22.8 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.52, 10.52, 10.52); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch684/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.925 W/kg
Ch684/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 12.13 V/m; Power Drift = 0.07 dB
Peak SAR (extrapolated) = 1.04 W/kg
SAR(1 g) = 0.85 W/kg; SAR(10 g) = 0.660 W/kg
Maximum value of SAR (measured) = 0.978 W/kg
0 dB = 0.978 W/kg = -0.10 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.28
07_CDMA2000 BC0_RC3 SO55 _Left Cheek_0mm_Ch777
Communication System: UID 0, CDMA2000 (0); Frequency: 848.31 MHz;Duty Cycle: 1:1
Medium: HSL_850 Medium parameters used: f = 848.31 MHz; σ = 0.919 S/m; εr = 41.973; ρ = 1000kg/m3
Ambient Temperature:23.3 ℃; Liquid Temperature:22.8 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.52, 10.52, 10.52); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch777/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.08 W/kg
Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 12.29 V/m; Power Drift = 0.02 dB
Peak SAR (extrapolated) = 1.07 W/kg
SAR(1 g) = 0.83W/kg; SAR(10 g) = 0.680 W/kg
Maximum value of SAR (measured) = 1.10 W/kg
0 dB = 1.10 W/kg = 0.41 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.29
08_CDMA2000 BC1_RC3 SO55 _Right Cheek_0mm_Ch600
Communication System: UID 0, CDMA2000 (0); Frequency: 1880 MHz;Duty Cycle: 1:1
Medium: HSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.412 S/m; εr = 39.502; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.32, 8.32, 8.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch600/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.18 W/kg
Ch600/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 11.70 V/m; Power Drift = -0.14 dB
Peak SAR (extrapolated) = 1.21 W/kg
SAR(1 g) = 0.878 W/kg; SAR(10 g) = 0.559 W/kg
Maximum value of SAR (measured) = 1.06 W/kg
0 dB = 1.06 W/kg = 0.25 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.27
09_LTE Band 12_10M_QPSK_1RB_0Offset_Left Cheek_0mm_Ch23095
Communication System: UID 0, FDD_LTE (0); Frequency: 707.5 MHz;Duty Cycle: 1:1
Medium: HSL_750 Medium parameters used: f = 707.5 MHz; σ = 0.868 S/m; εr = 42.997; ρ = 1000kg/m3
Ambient Temperature:23.6 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.98, 10.98, 10.98); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch23095/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.312 W/kg
Ch23095/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 7.068 V/m; Power Drift = 0.01 dB
Peak SAR (extrapolated) = 0.353 W/kg
SAR(1 g) = 0.290 W/kg; SAR(10 g) = 0.229 W/kg
Maximum value of SAR (measured) = 0.334 W/kg
0 dB = 0.334 W/kg = -4.76 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.28
10_LTE Band 13_10M_QPSK_1RB_0Offset_Left Cheek_0mm_Ch23230
Communication System: UID 0, FDD_LTE (0); Frequency: 782 MHz;Duty Cycle: 1:1
Medium: HSL_850 Medium parameters used: f = 782 MHz; σ = 0.857 S/m; εr = 42.816; ρ = 1000 kg/m3
Ambient Temperature:23.3 ℃; Liquid Temperature:22.8 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.98, 10.98, 10.98); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch23230/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.458 W/kg
Ch23230/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 8.834 V/m; Power Drift = 0.03 dB
Peak SAR (extrapolated) = 0.523 W/kg
SAR(1 g) = 0.428 W/kg; SAR(10 g) = 0.323 W/kg
Maximum value of SAR (measured) = 0.491 W/kg
0 dB = 0.491 W/kg = -3.09 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.28
11_LTE Band 14_10M_QPSK_1RB_0Offset_Left Cheek_0mm_Ch23330
Communication System: UID 0, FDD_LTE (0); Frequency: 793 MHz;Duty Cycle: 1:1
Medium: HSL_850 Medium parameters used: f = 793 MHz; σ = 0.868 S/m; εr = 42.667; ρ = 1000 kg/m3
Ambient Temperature:23.3 ℃; Liquid Temperature:22.8 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.98, 10.98, 10.98); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch23330/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.500 W/kg
Ch23330/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 8.152 V/m; Power Drift = 0.03 dB
Peak SAR (extrapolated) = 0.571 W/kg
SAR(1 g) = 0.440 W/kg; SAR(10 g) = 0.344 W/kg
Maximum value of SAR (measured) = 0.528 W/kg
0 dB = 0.528 W/kg = -2.77 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.28
12_LTE Band 26_15M_QPSK_1RB_74Offset_Left Cheek_0mm_Ch26865
Communication System: UID 0, FDD_LTE (0); Frequency: 831.5 MHz;Duty Cycle: 1:1
Medium: HSL_850 Medium parameters used: f = 831.5 MHz; σ = 0.904 S/m; εr = 42.188; ρ = 1000kg/m3
Ambient Temperature:23.3 ℃; Liquid Temperature:22.8 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.52, 10.52, 10.52); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch26865/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.862 W/kg
Ch26865/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 11.73 V/m; Power Drift = 0.09 dB
Peak SAR (extrapolated) = 0.903 W/kg
SAR(1 g) = 0.762 W/kg; SAR(10 g) = 0.591 W/kg
Maximum value of SAR (measured) = 0.863 W/kg
0 dB = 0.863 W/kg = -0.64 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.29
13_LTE Band 66_20M_QPSK_1RB_99Offset_Right Cheek_0mm_Ch132572
Communication System: UID 0, FDD_LTE (0); Frequency: 1770 MHz;Duty Cycle: 1:1
Medium: HSL_1750 Medium parameters used: f = 1770 MHz; σ = 1.363 S/m; εr = 41.075; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.58, 8.58, 8.58); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch132572/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.418 W/kg
Ch132572/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 3.423 V/m; Power Drift = 0.03 dB
Peak SAR (extrapolated) = 0.425 W/kg
SAR(1 g) = 0.330 W/kg; SAR(10 g) = 0.213 W/kg
Maximum value of SAR (measured) = 0.394 W/kg
0 dB = 0.394 W/kg = -4.05 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.29
14_LTE Band 25_20M_QPSK_1RB_0Offset_Right Cheek_0mm_Ch26590
Communication System: UID 0, FDD_LTE (0); Frequency: 1905 MHz;Duty Cycle: 1:1
Medium: HSL_1900 Medium parameters used: f = 1905 MHz; σ = 1.439 S/m; εr = 39.376; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.32, 8.32, 8.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch26590/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.913 W/kg
Ch26590/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 8.311 V/m; Power Drift = -0.06 dB
Peak SAR (extrapolated) = 0.884 W/kg
SAR(1 g) = 0.681 W/kg; SAR(10 g) = 0.437 W/kg
Maximum value of SAR (measured) = 0.809 W/kg
0 dB = 0.809 W/kg = -0.92 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.29
15_LTE Band 30_10M_QPSK_1RB_0Offset_Right Cheek_0mm_Ch27710
Communication System: UID 0, FDD_LTE (0); Frequency: 2310 MHz;Duty Cycle: 1:1
Medium: HSL_2300 Medium parameters used: f = 2310 MHz; σ = 1.704 S/m; εr = 39.002; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.95, 7.95, 7.95); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM3; Type: SAM; Serial: TP-1542
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch27710/Area Scan (71x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 0.521 W/kg
Ch27710/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 7.671 V/m; Power Drift = -0.06 dB
Peak SAR (extrapolated) = 0.641 W/kg
SAR(1 g) = 0.389 W/kg; SAR(10 g) = 0.216 W/kg
Maximum value of SAR (measured) = 0.530 W/kg
0 dB = 0.530 W/kg = -2.76 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.29
16_LTE Band 7_20M_QPSK_1RB_99Offset_Left Cheek_0mm_Ch20850
Communication System: UID 0, FDD_LTE (0); Frequency: 2510 MHz;Duty Cycle: 1:1
Medium: HSL_2600 Medium parameters used: f = 2510 MHz; σ = 1.932 S/m; εr = 38.24; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.71, 7.71, 7.71); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM3; Type: SAM; Serial: TP-1542
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch20850/Area Scan (71x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 0.625 W/kg
Ch20850/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 8.457 V/m; Power Drift = 0.09 dB
Peak SAR (extrapolated) = 0.815 W/kg
SAR(1 g) = 0.434 W/kg; SAR(10 g) = 0.230 W/kg
Maximum value of SAR (measured) = 0.652 W/kg
0 dB = 0.652 W/kg = -1.86 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.29
17_LTE Band 41_20M_QPSK_1RB_99Offset_Right Cheek_0mm_Ch40185
Communication System: UID 0, TDD_LTE (0); Frequency: 2549.5 MHz;Duty Cycle: 1:1.59
Medium: HSL_2600 Medium parameters used: f = 2549.5 MHz; σ = 1.98 S/m; εr = 38.082; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.62, 7.62, 7.62); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM3; Type: SAM; Serial: TP-1542
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch40185/Area Scan (71x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 0.341 W/kg
Ch40185/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 6.524 V/m; Power Drift = -0.02 dB
Peak SAR (extrapolated) = 0.496 W/kg
SAR(1 g) = 0.250 W/kg; SAR(10 g) = 0.124 W/kg
Maximum value of SAR (measured) = 0.368 W/kg
0 dB = 0.368 W/kg = -4.34 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.23
18_WLAN2.4GHz_802.11b 1Mbps_Left Cheek_0mm_Ch6
Communication System: UID 0, WIFI (0); Frequency: 2437 MHz;Duty Cycle: 1:1.025
Medium: HSL_2450 Medium parameters used: f = 2437 MHz; σ = 1.829 S/m; εr = 39.544; ρ = 1000kg/m3
Ambient Temperature:23.3 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.71, 7.71, 7.71); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM3; Type: SAM; Serial: TP-1542
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch6/Area Scan (71x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 0.603 W/kg
Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 10.85 V/m; Power Drift = 0.05 dB
Peak SAR (extrapolated) = 0.768 W/kg
SAR(1 g) = 0.390 W/kg; SAR(10 g) = 0.202 W/kg
Maximum value of SAR (measured) = 0.563 W/kg
0 dB = 0.563 W/kg = -2.49 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.27
19_WLAN5.3GHz_802.11a 6Mbps_Left Cheek_0mm_Ch64
Communication System: UID 0, WIFI (0); Frequency: 5320 MHz;Duty Cycle: 1:1.143
Medium: HSL_5000 Medium parameters used: f = 5320 MHz; σ = 4.972 S/m; εr = 37.264; ρ = 1000kg/m3
Ambient Temperature:23.6 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(5.39, 5.39, 5.39); Calibrated: 2017.5.26;
- Sensor-Surface: 1.4mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM3; Type: SAM; Serial: TP-1542
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch64/Area Scan (81x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm
Maximum value of SAR (interpolated) = 1.59 W/kg
Ch64/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm
Reference Value = 2.705 V/m; Power Drift = 0.03 dB
Peak SAR (extrapolated) = 2.72 W/kg
SAR(1 g) = 0.649 W/kg; SAR(10 g) = 0.202 W/kg
Maximum value of SAR (measured) = 1.63 W/kg
0 dB = 1.63 W/kg = 2.12 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.27
20_WLAN5.5GHz_802.11a 6Mbps_Left Cheek_0mm_Ch116
Communication System: UID 0, WIFI (0); Frequency: 5580 MHz;Duty Cycle: 1:1.143
Medium: HSL_5000 Medium parameters used: f = 5580 MHz; σ = 5.248 S/m; εr = 36.89; ρ = 1000kg/m3
Ambient Temperature:23.6 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(5.04, 5.04, 5.04); Calibrated: 2017.5.26;
- Sensor-Surface: 1.4mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM3; Type: SAM; Serial: TP-1542
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch116/Area Scan (91x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm
Maximum value of SAR (interpolated) = 2.01 W/kg
Ch116/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm
Reference Value = 4.705 V/m; Power Drift = 0.03 dB
Peak SAR (extrapolated) = 3.59 W/kg
SAR(1 g) = 0.824 W/kg; SAR(10 g) = 0.251 W/kg
Maximum value of SAR (measured) = 2.14 W/kg
0 dB = 2.14 W/kg = 3.30 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.27
21_WLAN5.8GHz_802.11a 6Mbps_Left Cheek_0mm_Ch149
Communication System: UID 0, WIFI (0); Frequency: 5745 MHz;Duty Cycle: 1:1.143
Medium: HSL_5000 Medium parameters used: f = 5745 MHz; σ = 5.384 S/m; εr = 34.463; ρ = 1000kg/m3
Ambient Temperature:23.6 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(5.34, 5.34, 5.34); Calibrated: 2017.5.26;
- Sensor-Surface: 1.4mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM3; Type: SAM; Serial: TP-1542
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch149/Area Scan (91x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm
Maximum value of SAR (interpolated) = 1.90 W/kg
Ch149/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm
Reference Value = 4.698 V/m; Power Drift = 0.01 dB
Peak SAR (extrapolated) = 3.20 W/kg
SAR(1 g) = 0.734 W/kg; SAR(10 g) = 0.240 W/kg
Maximum value of SAR (measured) = 1.82 W/kg
0 dB = 1.82 W/kg = 2.60 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
22_GSM850_GPRS 2 Tx slots_Back_10mm_Ch251
Communication System: UID 0, GPRS/EDGE (2 Tx slots) (0); Frequency: 848.8 MHz;Duty Cycle:1:4.15
Medium: MSL_850 Medium parameters used: f = 848.8 MHz; σ = 0.985 S/m; εr = 56.767; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.32, 10.32, 10.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch251/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.744 W/kg
Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 26.49 V/m; Power Drift = -0.12 dB
Peak SAR (extrapolated) = 0.806 W/kg
SAR(1 g) = 0.657 W/kg; SAR(10 g) = 0.511 W/kg
Maximum value of SAR (measured) = 0.754 W/kg
0 dB = 0.754 W/kg = -1.23 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.3
23_GSM1900_GPRS 2 Tx slots_Back_10mm_Ch512
Communication System: UID 0, GPRS/EDGE (2 Tx slots) (0); Frequency: 1850.2 MHz;Duty Cycle:1:4.15
Medium: MSL_1900 Medium parameters used: f = 1850.2 MHz; σ = 1.456 S/m; εr = 53.345; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.01, 8.01, 8.01); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch512/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.25 W/kg
Ch512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 10.35 V/m; Power Drift = -0.18 dB
Peak SAR (extrapolated) = 1.40 W/kg
SAR(1 g) = 0.987 W/kg; SAR(10 g) = 0.592 W/kg
Maximum value of SAR (measured) = 1.26 W/kg
0 dB = 1.26 W/kg = 1.00 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
24_WCDMA Band V_RMC 12.2Kbps_Front_10mm_Ch4233
Communication System: UID 0, UMTS (0); Frequency: 846.6 MHz;Duty Cycle: 1:1
Medium: MSL_850 Medium parameters used: f = 846.6 MHz; σ = 0.983 S/m; εr = 56.776; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.32, 10.32, 10.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch4233/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.758 W/kg
Ch4233/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 26.24 V/m; Power Drift = -0.12 dB
Peak SAR (extrapolated) = 0.766 W/kg
SAR(1 g) = 0.650 W/kg; SAR(10 g) = 0.509 W/kg
Maximum value of SAR (measured) = 0.719 W/kg
0 dB = 0.719 W/kg = -1.43 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.2
25_WCDMA Band IV_RMC 12.2Kbps_Back_10mm_Ch1513
Communication System: UID 0, UMTS (0); Frequency: 1752.6 MHz;Duty Cycle: 1:1
Medium: MSL_1750 Medium parameters used: f = 1752.6 MHz; σ = 1.481 S/m; εr = 53.311; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.9 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.32, 8.32, 8.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch1513/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.23 W/kg
Ch1513/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 8.407 V/m; Power Drift = -0.09 dB
Peak SAR (extrapolated) = 1.31 W/kg
SAR(1 g) = 0.922 W/kg; SAR(10 g) = 0.560 W/kg
Maximum value of SAR (measured) = 1.16 W/kg
0 dB = 1.16 W/kg = 0.64 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.3
26_WCDMA Band II_RMC 12.2Kbps_Back_10mm_Ch9262
Communication System: UID 0, UMTS (0); Frequency: 1852.4 MHz;Duty Cycle: 1:1
Medium: MSL_1900 Medium parameters used: f = 1852.4 MHz; σ = 1.459 S/m; εr = 53.338; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.01, 8.01, 8.01); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch9262/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.07 W/kg
Ch9262/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 8.424 V/m; Power Drift = -0.10 dB
Peak SAR (extrapolated) = 1.16 W/kg
SAR(1 g) = 0.808 W/kg; SAR(10 g) = 0.483 W/kg
Maximum value of SAR (measured) = 1.02 W/kg
0 dB = 1.02 W/kg = 0.09 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
27_CDMA2000 BC10_RTAP 153.6Kbps_Front_10mm_Ch684
Communication System: UID 0, CDMA2000 (0); Frequency: 823.1 MHz;Duty Cycle: 1:1
Medium: MSL_850 Medium parameters used: f = 823.1 MHz; σ = 0.961 S/m; εr = 57.002; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.32, 10.32, 10.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch684/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.916 W/kg
Ch684/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 30.05 V/m; Power Drift = 0.03 dB
Peak SAR (extrapolated) = 0.993 W/kg
SAR(1 g) = 0.810 W/kg; SAR(10 g) = 0.624 W/kg
Maximum value of SAR (measured) = 0.919 W/kg
0 dB = 0.919 W/kg = -0.37 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
28_CDMA2000 BC0_RTAP 153.6Kbps_Front_10mm_Ch1013
Communication System: UID 0, CDMA2000 (0); Frequency: 824.7 MHz;Duty Cycle: 1:1
Medium: MSL_850 Medium parameters used: f = 824.7 MHz; σ = 0.963 S/m; εr = 56.984; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.32, 10.32, 10.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch1013/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.867 W/kg
Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 28.47 V/m; Power Drift = -0.11 dB
Peak SAR (extrapolated) = 0.891 W/kg
SAR(1 g) = 0.761 W/kg; SAR(10 g) = 0.598 W/kg
Maximum value of SAR (measured) = 0.842 W/kg
0 dB = 0.842 W/kg = -0.75 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.3
29_CDMA2000 BC1_RTAP 153.6Kbps_Back_10mm_Ch25
Communication System: UID 0, CDMA2000 (0); Frequency: 1851.25 MHz;Duty Cycle: 1:1
Medium: MSL_1900 Medium parameters used: f = 1851.25 MHz; σ = 1.457 S/m; εr = 53.344; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.01, 8.01, 8.01); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch25/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.38 W/kg
Ch25/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 9.660 V/m; Power Drift = -0.09 dB
Peak SAR (extrapolated) = 1.48 W/kg
SAR(1 g) = 1.04 W/kg; SAR(10 g) = 0.624 W/kg
Maximum value of SAR (measured) = 1.32 W/kg
0 dB = 1.32 W/kg = 1.21 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.30
30_LTE Band 12_10M_QPSK_1RB_0Offset_Back_10mm_Ch23095
Communication System: UID 0, FDD_LTE (0); Frequency: 707.5 MHz;Duty Cycle: 1:1
Medium: MSL_750 Medium parameters used: f = 707.5 MHz; σ = 0.929 S/m; εr = 56.978; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.54, 10.54, 10.54); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch23095/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.573 W/kg
Ch23095/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 22.47 V/m; Power Drift = -0.01 dB
Peak SAR (extrapolated) = 0.551 W/kg
SAR(1 g) = 0.453 W/kg; SAR(10 g) = 0.367 W/kg
Maximum value of SAR (measured) = 0.498 W/kg
0 dB = 0.498 W/kg = -3.03 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
31_LTE Band 13_10M_QPSK_1RB_0Offset_Front_10mm_Ch23230
Communication System: UID 0, FDD_LTE (0); Frequency: 782 MHz;Duty Cycle: 1:1
Medium: MSL_850 Medium parameters used: f = 782 MHz; σ = 0.923 S/m; εr = 57.33; ρ = 1000 kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.54, 10.54, 10.54); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch23230/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.424 W/kg
Ch23230/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 19.14 V/m; Power Drift = 0.08 dB
Peak SAR (extrapolated) = 0.459 W/kg
SAR(1 g) = 0.358 W/kg; SAR(10 g) = 0.279 W/kg
Maximum value of SAR (measured) = 0.425 W/kg
0 dB = 0.425 W/kg = -3.72 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
32_LTE Band 14_10M_QPSK_1RB_0Offset_Back_10mm_Ch23330
Communication System: UID 0, FDD_LTE (0); Frequency: 793 MHz;Duty Cycle: 1:1
Medium: MSL_850 Medium parameters used: f = 793 MHz; σ = 0.933 S/m; εr = 57.238; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.54, 10.54, 10.54); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch23330/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.518 W/kg
Ch23330/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 20.66 V/m; Power Drift = -0.17 dB
Peak SAR (extrapolated) = 0.560 W/kg
SAR(1 g) = 0.456 W/kg; SAR(10 g) = 0.357 W/kg
Maximum value of SAR (measured) = 0.515 W/kg
0 dB = 0.515 W/kg = -2.88 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
33_LTE Band 26_15M_QPSK_1RB_74Offset_Front_10mm_Ch26865
Communication System: UID 0, FDD_LTE (0); Frequency: 831.5 MHz;Duty Cycle: 1:1
Medium: MSL_835 Medium parameters used: f = 831.5 MHz; σ = 0.968 S/m; εr = 56.921; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.32, 10.32, 10.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch26865/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.805 W/kg
Ch26865/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 26.45 V/m; Power Drift = -0.03 dB
Peak SAR (extrapolated) = 0.861 W/kg
SAR(1 g) = 0.694 W/kg; SAR(10 g) = 0.533 W/kg
Maximum value of SAR (measured) = 0.786 W/kg
0 dB = 0.786 W/kg = -1.05 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.2
34_LTE Band 66_20M_QPSK_1RB_99Offset_Back_10mm_Ch132572
Communication System: UID 0, FDD_LTE (0); Frequency: 1770 MHz;Duty Cycle: 1:1
Medium: MSL_1750 Medium parameters used: f = 1770 MHz; σ = 1.499 S/m; εr = 53.263; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.9 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.32, 8.32, 8.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch132572/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.41 W/kg
Ch132572/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 9.108 V/m; Power Drift = 0.14 dB
Peak SAR (extrapolated) = 1.47 W/kg
SAR(1 g) = 1.05 W/kg; SAR(10 g) = 0.652 W/kg
Maximum value of SAR (measured) = 1.30 W/kg
0 dB = 1.30 W/kg = 1.14 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.3
35_LTE Band 25_20M_QPSK_1RB_0Offset_Back_10mm_Ch26140
Communication System: UID 0, FDD_LTE (0); Frequency: 1860 MHz;Duty Cycle: 1:1
Medium: MSL_1900 Medium parameters used: f = 1860 MHz; σ = 1.467 S/m; εr = 53.329; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.01, 8.01, 8.01); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch26140/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.30 W/kg
Ch26140/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 8.853 V/m; Power Drift = -0.09 dB
Peak SAR (extrapolated) = 1.41 W/kg
SAR(1 g) = 0.995 W/kg; SAR(10 g) = 0.601 W/kg
Maximum value of SAR (measured) = 1.24 W/kg
0 dB = 1.24 W/kg = 0.93 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.26
36_LTE Band 30_10M_QPSK_1RB_0Offset_Back_10mm_Ch27710
Communication System: UID 0, FDD_LTE (0); Frequency: 2310 MHz;Duty Cycle: 1:1
Medium: MSL_2300 Medium parameters used: f = 2310 MHz; σ = 1.787 S/m; εr = 53.509; ρ = 1000kg/m3
Ambient Temperature:23.6 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.87, 7.87, 7.87); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM2; Type: SAM; Serial: TP-1644
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch27710/Area Scan (151x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 0.863 W/kg
Ch27710/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 7.343 V/m; Power Drift = 0.04 dB
Peak SAR (extrapolated) = 1.06 W/kg
SAR(1 g) = 0.590 W/kg; SAR(10 g) = 0.314 W/kg
Maximum value of SAR (measured) = 0.835 W/kg
0 dB = 0.835 W/kg = -0.78 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.26
37_LTE Band 7_20M_QPSK_1RB_99Offset_Back_10mm_Ch20850
Communication System: UID 0, FDD_LTE (0); Frequency: 2510 MHz;Duty Cycle: 1:1
Medium: MSL_2600 Medium parameters used: f = 2510 MHz; σ = 2.067 S/m; εr = 52.827; ρ = 1000kg/m3
Ambient Temperature:23.3 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.59, 7.59, 7.59); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch20850/Area Scan (141x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 1.31 W/kg
Ch20850/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 7.204 V/m; Power Drift = 0.02 dB
Peak SAR (extrapolated) = 1.96 W/kg
SAR(1 g) = 0.957 W/kg; SAR(10 g) = 0.459 W/kg
Maximum value of SAR (measured) = 1.46 W/kg
0 dB = 1.46 W/kg = 1.64 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.26
38_LTE Band 41_20M_QPSK_1RB_99Offset_Back_10mm_Ch39750
Communication System: UID 0, TDD_LTE (0); Frequency: 2506 MHz;Duty Cycle: 1:1.59
Medium: MSL_2600 Medium parameters used: f = 2506 MHz; σ = 2.061 S/m; εr = 52.841; ρ = 1000kg/m3
Ambient Temperature:23.3 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.7, 7.7, 7.7); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch39750/Area Scan (141x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 0.735 W/kg
Ch39750/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 5.706 V/m; Power Drift = 0.04 dB
Peak SAR (extrapolated) = 1.16 W/kg
SAR(1 g) = 0.500 W/kg; SAR(10 g) = 0.252 W/kg
Maximum value of SAR (measured) = 0.848 W/kg
0 dB = 0.848 W/kg = -0.72 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.23
39_WLAN2.4GHz_802.11b 1Mbps_Right Side_10mm_Ch11
Communication System: UID 0, WIFI (0); Frequency: 2462 MHz;Duty Cycle: 1:1.025
Medium: MSL_2450 Medium parameters used: f = 2462 MHz; σ = 2.02 S/m; εr = 53.046; ρ = 1000kg/m3
Ambient Temperature:23.5 ℃; Liquid Temperature:22.5 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.7, 7.7, 7.7); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch11/Area Scan (131x41x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 0.200 W/kg
Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 8.275 V/m; Power Drift = -0.10 dB
Peak SAR (extrapolated) = 0.253 W/kg
SAR(1 g) = 0.138 W/kg; SAR(10 g) = 0.073 W/kg
Maximum value of SAR (measured) = 0.194 W/kg
0 dB = 0.194 W/kg = -7.12 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.28
40_WLAN5.2GHz_802.11a 6Mbps_Right Side_10mm_Ch48
Communication System: UID 0, WIFI (0); Frequency: 5240 MHz;Duty Cycle: 1:1.143
Medium: MSL_5000 Medium parameters used: f = 5240 MHz; σ = 5.363 S/m; εr = 49.129; ρ = 1000kg/m3
Ambient Temperature:23.5 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(4.72, 4.72, 4.72); Calibrated: 2017.5.26;
- Sensor-Surface: 1.4mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch48/Area Scan (161x51x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm
Maximum value of SAR (interpolated) = 0.945 W/kg
Ch48/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm
Reference Value = 3.781 V/m; Power Drift = -0.12 dB
Peak SAR (extrapolated) = 1.57 W/kg
SAR(1 g) = 0.413 W/kg; SAR(10 g) = 0.148 W/kg
Maximum value of SAR (measured) = 0.947 W/kg
0 dB = 0.947 W/kg = -0.24 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.30
41_WLAN5.8GHz_802.11a 6Mbps_Right Side_10mm_Ch149
Communication System: UID 0, WIFI (0); Frequency: 5745 MHz;Duty Cycle: 1:1.143
Medium: MSL_5000 Medium parameters used: f = 5745 MHz; σ = 6.065 S/m; εr = 47.996; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(4.31, 4.31, 4.31); Calibrated: 2017.5.26;
- Sensor-Surface: 1.4mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM2; Type: SAM; Serial: TP-1644
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch149/Area Scan (161x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm
Maximum value of SAR (interpolated) = 1.56 W/kg
Ch149/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm
Reference Value = 2.671 V/m; Power Drift = -0.05 dB
Peak SAR (extrapolated) = 2.66 W/kg
SAR(1 g) = 0.640 W/kg; SAR(10 g) = 0.221 W/kg
Maximum value of SAR (measured) = 1.50 W/kg
0 dB = 1.50 W/kg = 1.76 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.23
42_ Bluetooth_1Mbps_Back_10mm_Ch78
Communication System: UID 0, Bluetooth (0); Frequency: 2480 MHz;Duty Cycle: 1:1.298
Medium: MSL_2450 Medium parameters used: f = 2480 MHz; σ = 2.046 S/m; εr = 52.969; ρ = 1000kg/m3
Ambient Temperature:23.5 ℃; Liquid Temperature:22.5 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.7, 7.7, 7.7); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch78/Area Scan (141x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 0.0302 W/kg
Ch78/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 2.832 V/m; Power Drift = -0.14 dB
Peak SAR (extrapolated) = 0.0440 W/kg
SAR(1 g) = 0.020 W/kg; SAR(10 g) = 0.011 W/kg
Maximum value of SAR (measured) = 0.0312 W/kg
0 dB = 0.0312 W/kg = -15.06 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
43_GSM850_GPRS 2 Tx slots_Back_15mm_Ch251
Communication System: UID 0, GPRS/EDGE (2 Tx slots) (0); Frequency: 848.8 MHz;Duty Cycle:1:4.15
Medium: MSL_850 Medium parameters used: f = 848.8 MHz; σ = 0.985 S/m; εr = 56.767; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.32, 10.32, 10.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch251/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.573 W/kg
Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 23.60 V/m; Power Drift = -0.01 dB
Peak SAR (extrapolated) = 0.600 W/kg
SAR(1 g) = 0.505 W/kg; SAR(10 g) = 0.393 W/kg
Maximum value of SAR (measured) = 0.556 W/kg
0 dB = 0.556 W/kg = -2.55 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.3
44_GSM1900_GPRS 2 Tx slots_Back_15mm_Ch512
Communication System: UID 0, GPRS/EDGE (2 Tx slots) (0); Frequency: 1850.2 MHz;Duty Cycle:1:4.15
Medium: MSL_1900 Medium parameters used: f = 1850.2 MHz; σ = 1.456 S/m; εr = 53.345; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.01, 8.01, 8.01); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch512/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.690 W/kg
Ch512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 6.892 V/m; Power Drift = 0.02 dB
Peak SAR (extrapolated) = 0.725 W/kg
SAR(1 g) = 0.534 W/kg; SAR(10 g) = 0.342 W/kg
Maximum value of SAR (measured) = 0.646 W/kg
0 dB = 0.646 W/kg = -1.90 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
45_WCDMA Band V_RMC 12.2Kbps_Front_15mm_Ch4233
Communication System: UID 0, UMTS (0); Frequency: 846.6 MHz;Duty Cycle: 1:1
Medium: MSL_850 Medium parameters used: f =846.6 MHz; σ = 0.983 S/m; εr = 56.776; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.32, 10.32, 10.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch4233/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.584 W/kg
Ch4233/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 23.37 V/m; Power Drift = -0.17 dB
Peak SAR (extrapolated) = 0.612 W/kg
SAR(1 g) = 0.516 W/kg; SAR(10 g) = 0.403 W/kg
Maximum value of SAR (measured) = 0.578 W/kg
0 dB = 0.578 W/kg = -2.38 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.2
46_WCDMA Band IV_RMC 12.2Kbps_Back_15mm_Ch1513
Communication System: UID 0, UMTS (0); Frequency: 1752.6 MHz;Duty Cycle: 1:1
Medium: MSL_1750 Medium parameters used: f = 1752.6 MHz; σ = 1.481 S/m; εr = 53.311; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.9 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.32, 8.32, 8.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch1513/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.35 W/kg
Ch1513/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 10.73 V/m; Power Drift = 0.01 dB
Peak SAR (extrapolated) = 1.35 W/kg
SAR(1 g) = 0.988 W/kg; SAR(10 g) = 0.635 W/kg
Maximum value of SAR (measured) = 1.21 W/kg
0 dB = 1.21 W/kg = 0.83 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.3
47_WCDMA Band II_RMC 12.2Kbps_Back_15mm_Ch9262
Communication System: UID 0, UMTS (0); Frequency: 1852.4 MHz;Duty Cycle: 1:1
Medium: MSL_1900 Medium parameters used: f = 1852.4 MHz; σ = 1.459 S/m; εr = 53.338; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.01, 8.01, 8.01); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch9262/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.18 W/kg
Ch9262/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 12.06 V/m; Power Drift = -0.01 dB
Peak SAR (extrapolated) = 1.26 W/kg
SAR(1 g) = 0.922 W/kg; SAR(10 g) = 0.590 W/kg
Maximum value of SAR (measured) = 1.13 W/kg
0 dB = 1.13 W/kg = 0.53 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
48_CDMA2000 BC10_RC3 SO32 (F+SCH) _Front_15mm_Ch476
Communication System: UID 0, CDMA2000 (0); Frequency: 817.9 MHz;Duty Cycle: 1:1
Medium: MSL_835 Medium parameters used: f = 817.9 MHz; σ = 0.956 S/m; εr = 57.035; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.32, 10.32, 10.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch476/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.763 W/kg
Ch476/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 27.77 V/m; Power Drift = -0.04 dB
Peak SAR (extrapolated) = 0.802 W/kg
SAR(1 g) = 0.663 W/kg; SAR(10 g) = 0.519 W/kg
Maximum value of SAR (measured) = 0.745 W/kg
0 dB = 0.745 W/kg = -1.28 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
49_CDMA2000 BC0_RC3 SO32 (F+SCH) _Front_15mm_Ch1013
Communication System: UID 0, CDMA2000 (0); Frequency: 824.7 MHz;Duty Cycle: 1:1
Medium: MSL_835 Medium parameters used: f = 824.7 MHz; σ = 0.963 S/m; εr = 56.984; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.32, 10.32, 10.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch1013/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.763 W/kg
Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 27.85 V/m; Power Drift = -0.02 dB
Peak SAR (extrapolated) = 0.813 W/kg
SAR(1 g) = 0.671 W/kg; SAR(10 g) = 0.525 W/kg
Maximum value of SAR (measured) = 0.757 W/kg
0 dB = 0.757 W/kg = -1.21 dBW/kg
Download: PG2132 LTE Phone RF Exposure Info Ref XP5800 Test Report RFExp Part 2 Sonim Technologies, Inc.
Mirror Download [FCC.gov]PG2132 LTE Phone RF Exposure Info Ref XP5800 Test Report RFExp Part 2 Sonim Technologies, Inc.
Document ID3671414
Application IDdmIL+Q1CqKPAMWhEpzRSVQ==
Document DescriptionRef XP5800 Test Report RFExp Part 2
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeYes
Document TypeRF Exposure Info
Display FormatAdobe Acrobat PDF - pdf
Filesize443.38kB (5542295 bits)
Date Submitted2017-12-11 00:00:00
Date Available2017-12-13 00:00:00
Creation Date2017-12-30 10:22:13
Producing SoftwareGPL Ghostscript 9.18
Document Lastmod2017-12-30 10:22:13
Document TitleRef XP5800 Test Report RFExp Part 2
Document Author: sarachen

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.7
Linearized                      : No
Warning                         : Invalid xref table
EXIF Metadata provided by EXIF.tools

Facebook Twitter Google+ RSS © FCCID.io 2018
