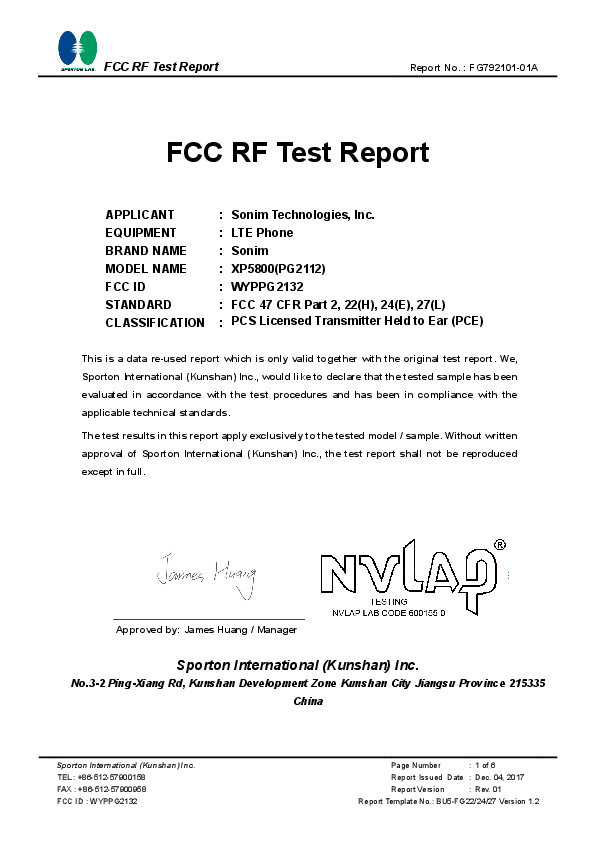

FCC RF Test Report
Report No. : FG792101-01A
FCC RF Test Report
APPLICANT
EQUIPMENT
BRAND NAME
MODEL NAME
FCC ID
STANDARD
CLASSIFICATION
Sonim Technologies, Inc.
LTE Phone
Sonim
XP5800(PG2112)
WYPPG2132
FCC 47 CFR Part 2, 22(H), 24(E), 27(L)
PCS Licensed Transmitter Held to Ear (PCE)
This is a data re-used report which is only valid together with the original test report. We,
Sporton International (Kunshan) Inc., would like to declare that the tested sample has been
evaluated in accordance with the test procedures and has been in compliance with the
applicable technical standards.
The test results in this report apply exclusively to the tested model / sample. Without written
approval of Sporton International (Kunshan) Inc., the test report shall not be reproduced
except in full.
Approved by: James Huang / Manager
Sporton International (Kunshan) Inc.
No.3-2 Ping-Xiang Rd, Kunshan Development Zone Kunshan City Jiangsu Province 215335
China
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : WYPPG2132
Page Number
: 1 of 6
Report Issued Date : Dec. 04, 2017
Report Version
: Rev. 01
Report Template No.: BU5-FG22/24/27 Version 1.2
FCC RF Test Report
Report No. : FG792101-01A
TABLE OF CONTENTS
GENERAL DESCRIPTION .......................................................................................................................... 4
1.1
Applicant ............................................................................................................................................ 4
1.2
Manufacturer ...................................................................................................................................... 4
1.3
Product Feature of Equipment Under Test ........................................................................................ 4
1.4
Product Specification of Equipment Under Test................................................................................ 5
1.5
Modification of EUT ........................................................................................................................... 5
1.6
Re-use of Measured Data ................................................................................................................. 6
APPENDIX A. REFERENCE REPORT
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : WYPPG2132
Page Number
: 2 of 6
Report Issued Date : Dec. 04, 2017
Report Version
: Rev. 01
Report Template No.: BU5-FG22/24/27 Version 1.2
FCC RF Test Report
Report No. : FG792101-01A
REVISION HISTORY
REPORT NO.
VERSION
FG792101-01A
Rev. 01
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : WYPPG2132
DESCRIPTION
Initial issue of report
ISSUED DATE
Dec. 04, 2017
Page Number
: 3 of 6
Report Issued Date : Dec. 04, 2017
Report Version
: Rev. 01
Report Template No.: BU5-FG22/24/27 Version 1.2
FCC RF Test Report
Report No. : FG792101-01A
General Description
1.1 Applicant
Sonim Technologies, Inc.
1825 S. Grant St., Suite 200., San Mateo, CA, 94402
1.2 Manufacturer
Sonim Technologies (Shenzhen) Limited
2nd Floor, No. 2 Building Phase B, Daqian Industrial park, Longchang Road, 67 District, Baoan,
Shenzhen, P. R. China
1.3 Product Feature of Equipment Under Test
Product Feature
Equipment
Brand Name
Model Name
FCC ID
EUT supports Radios application
HW Version
SW Version
EUT Stage
LTE Phone
Sonim
XP5800(PG2112)
WYPPG2132
GSM/GPRS/EGPRS/WCDMA/HSPA/
DC-HSDPA/HSPA+ (16QAM uplink is not supported)/LTE
WLAN2.4G 802.11b/g/n HT20/HT40
WLAN5G 802.11a/n HT20/HT40
Bluetooth v3.0 + EDR/ Bluetooth v4.0 LE/
Bluetooth v4.2 LE
5SA.0.0-00-7.1.2-10.32.01
Identical Prototype
Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications
or user's manual for more detailed description.
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : WYPPG2132
Page Number
: 4 of 6
Report Issued Date : Dec. 04, 2017
Report Version
: Rev. 01
Report Template No.: BU5-FG22/24/27 Version 1.2
FCC RF Test Report
Report No. : FG792101-01A
1.4 Product Specification of Equipment Under Test
Standards-related Product Specification
Tx Frequency
Rx Frequency
Antenna Type
Antenna Gain
Type of Modulation
GSM/GPRS/EDGE:
850:
824.2 MHz ~ 848.8 MHz
1900:
1850.2 MHz ~ 1909.8MHz
WCDMA:
Band V: 826.4 MHz ~ 846.6 MHz
Band II:
1852.4 MHz ~ 1907.6 MHz
Band IV: 1712.4 MHz ~ 1752.6 MHz
GSM/GPRS/EDGE:
850:
869.2 MHz ~ 893.8 MHz
1900:
1930.2 MHz ~ 1989.8 MHz
WCDMA:
Band V: 871.4 MHz ~ 891.6 MHz
Band II:
1932.4 MHz ~ 1987.6 MHz
Band IV: 2112.4 MHz ~ 2152.6 MHz
PIFA Antenna
Cellular Band: -2.0 dBi
PCS Band: -1.0 dBi
AWS Band: -1.0 dBi
GSM/GPRS: GMSK
EDGE: GMSK / 8PSK
HSDPA/DC-HSDPA : QPSK (Uplink)
HSUPA: QPSK (Uplink)
DC-HSDPA : 64QAM
HSPA+ : 16QAM (uplink is not supported)
1.5 Modification of EUT
No modifications are made to the EUT during all test items.
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : WYPPG2132
Page Number
: 5 of 6
Report Issued Date : Dec. 04, 2017
Report Version
: Rev. 01
Report Template No.: BU5-FG22/24/27 Version 1.2
FCC RF Test Report
Report No. : FG792101-01A
1.6 Re-use of Measured Data
1.6.1 Introduction Section
This application re-uses data collected on a similar device. The subject device of this application (Model:
XP5800(PG2112), FCC ID: WYPPG2132) is electrically identical to the reference device (Model:
XP5800(PC2111), FCC ID: WYPPC2100) for the portions of the circuitry corresponding to the data
being re-used, as treated by KDB Publication 178919 D01.
1.6.2 Difference Section
For details concerning the similarity with respect to component placement, mechanical/electrical design
etc., some difference of population/depopulation to enable support of different cellular bands, please
refer to the Product Equality Declaration.
The re-used RF data includes the following bands provided in Appendix A (Sporton RF Report No.
FG792101A for the reference device Model: XP5800(PC2111), FCC ID: WYPPC2100):
1.6.3 Spot Check Verification Data Section
In order to confirm hardware similarity of the subject device with the reference device, spot check
measurements were performed on the subject device for radiated spurious emission, Conducted
Band-edge and Conducted spurious emission, the test result were consistent with FCC ID:
WYPPC2100.
Assertions concerning the similarity of these devices are based on representations by the applicant.
The applicant accepts full responsibility for the validity of the similarity claim, and for the determination
that verification test data are sufficient to support it.
1.6.4 Reference detail Section:
Equipment Class
Reference FCC ID
PCE (2G/3G)
WYPPC2100
PCE (LTE)
WYPPC2100
PCE (LTE)
WYPPC2100
PCE (LTE)
WYPPC2100
PCE (LTE)
WYPPC2100
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : WYPPG2132
Folder Test
Part22H.24E.27L
(FG792101A)
Part22H.24E.27L.27M.27F.27H
(FG792101B)
Part27D
(FG792101C)
Part90R
(FG792101D)
Part90S
(FW792101)
Report Title/Section
All sections applicable
All sections applicable
All sections applicable
All sections applicable
All sections applicable
Page Number
: 6 of 6
Report Issued Date : Dec. 04, 2017
Report Version
: Rev. 01
Report Template No.: BU5-FG22/24/27 Version 1.2
FCC RF Test Report
Report No. : FG792101-01A
Appendix A. Reference Report
Please refer to Sporton report number FG792101A which is issued separately.
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : WYPPG2132
Page Number
: A1 of A1
Report Issued Date : Dec. 04, 2017
Report Version
: Rev. 01
Report Template No.: BU5-FG22/24/27 Version 1.2
