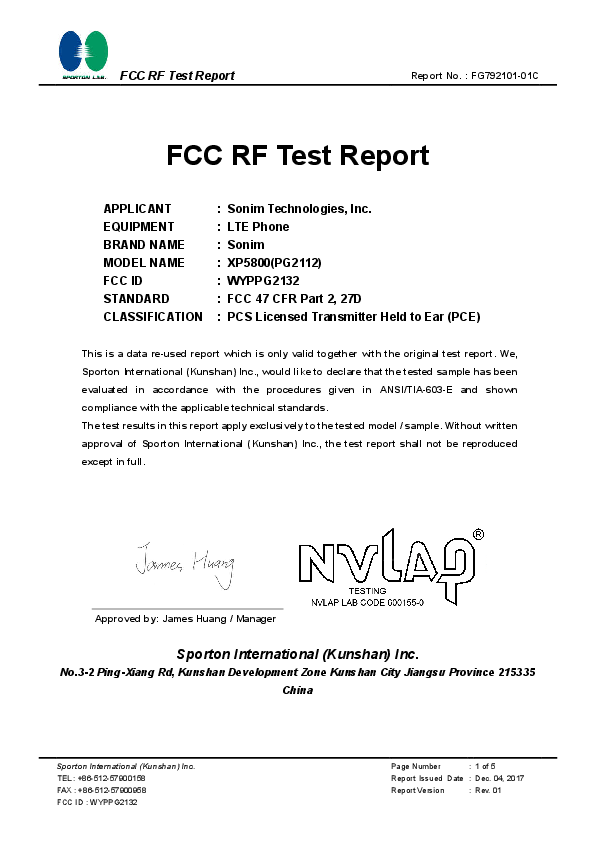

FCC RF Test Report
Report No. : FG792101-01C
FCC RF Test Report
APPLICANT
EQUIPMENT
BRAND NAME
MODEL NAME
FCC ID
STANDARD
CLASSIFICATION
Sonim Technologies, Inc.
LTE Phone
Sonim
XP5800(PG2112)
WYPPG2132
FCC 47 CFR Part 2, 27D
PCS Licensed Transmitter Held to Ear (PCE)
This is a data re-used report which is only valid together with the original test report. We,
Sporton International (Kunshan) Inc., would like to declare that the tested sample has been
evaluated in accordance with the procedures given in ANSI/TIA-603-E and shown
compliance with the applicable technical standards.
The test results in this report apply exclusively to the tested model / sample. Without written
approval of Sporton International (Kunshan) Inc., the test report shall not be reproduced
except in full.
Approved by: James Huang / Manager
Sporton International (Kunshan) Inc.
No.3-2 Ping-Xiang Rd, Kunshan Development Zone Kunshan City Jiangsu Province 215335
China
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : WYPPG2132
Page Number
: 1 of 5
Report Issued Date : Dec. 04, 2017
Report Version
: Rev. 01
FCC RF Test Report
Report No. : FG792101-01C
TABLE OF CONTENTS
REVISION HISTORY.......................................................................................................................................... 3
GENERAL DESCRIPTION .......................................................................................................................... 4
1.1
1.2
1.3
1.4
1.5
1.6
Applicant ............................................................................................................................................ 4
Manufacturer ...................................................................................................................................... 4
Product Feature of Equipment Under Test ........................................................................................ 4
Product Specification of Equipment Under Test................................................................................ 4
Modification of EUT ........................................................................................................................... 4
Re-use of Measured Data ................................................................................................................. 5
APPENDIX A. REFERENCE REPORT
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : WYPPG2132
Page Number
: 2 of 5
Report Issued Date : Dec. 04, 2017
Report Version
: Rev. 01
FCC RF Test Report
Report No. : FG792101-01C
REVISION HISTORY
REPORT NO.
VERSION
FG792101-01C
Rev. 01
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : WYPPG2132
DESCRIPTION
Initial issue of report
ISSUED DATE
Dec. 04, 2017
Page Number
: 3 of 5
Report Issued Date : Dec. 04, 2017
Report Version
: Rev. 01
FCC RF Test Report
Report No. : FG792101-01C
General Description
1.1 Applicant
Sonim Technologies, Inc.
1825 S. Grant St., Suite 200., San Mateo, CA, 94402
1.2 Manufacturer
Sonim Technologies (Shenzhen) Limited
2nd Floor, No. 2 Building Phase B, Daqian Industrial park, Longchang Road, 67 District, Baoan,
Shenzhen, P. R. China
1.3 Product Feature of Equipment Under Test
Product Feature
Equipment
Brand Name
Model Name
FCC ID
EUT supports Radios application
HW Version
SW Version
EUT Stage
LTE Phone
Sonim
XP5800(PG2112)
WYPPG2132
GSM/GPRS/EGPRS/WCDMA/HSPA/
DC-HSDPA/HSPA+ (16QAM uplink is not supported)/LTE
WLAN2.4G 802.11b/g/n HT20/HT40
WLAN5G 802.11a/n HT20/HT40
Bluetooth v3.0 + EDR/ Bluetooth v4.0 LE/
Bluetooth v4.2 LE
5SA.0.0-00-7.1.2-10.32.01
Identical Prototype
1.4 Product Specification of Equipment Under Test
Product Feature
Tx Frequency
Rx Frequency
Bandwidth
Antenna Type/Gain
Type of Modulation
LTE Band 30 : 2307.5 MHz ~ 2312.5 MHz
LTE Band 30 : 2352.5 MHz ~ 2357.5 MHz
5MHz / 10MHz
PIFA Antenna / -2.00dBi
QPSK / 16QAM
1.5 Modification of EUT
No modifications are made to the EUT during all test items.
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : WYPPG2132
Page Number
: 4 of 5
Report Issued Date : Dec. 04, 2017
Report Version
: Rev. 01
FCC RF Test Report
Report No. : FG792101-01C
1.6 Re-use of Measured Data
1.6.1 Introduction Section
This application re-uses data collected on a similar device. The subject device of this application (Model:
XP5800(PG2112), FCC ID: WYPPG2132) is electrically identical to the reference device (Model:
XP5800(PC2111), FCC ID: WYPPC2100) for the portions of the circuitry corresponding to the data
being re-used, as treated by KDB Publication 178919 D01.
1.6.2 Difference Section
For details concerning the similarity with respect to component placement, mechanical/electrical design
etc., some difference of population/depopulation to enable support of different cellular bands, please
refer to the Product Equality Declaration.
The re-used RF data includes the following bands provided in Appendix A (Sporton RF Report No.
FG792101C for the reference device Model: XP5800(PC2111), FCC ID: WYPPC2100):
1.6.3 Spot Check Verification Data Section
In order to confirm hardware similarity of the subject device with the reference device, spot check
measurements were performed on the subject device for radiated spurious emission, Conducted
Band-edge and Conducted spurious emission, the test result were consistent with FCC ID:
WYPPC2100.
Assertions concerning the similarity of these devices are based on representations by the applicant.
The applicant accepts full responsibility for the validity of the similarity claim, and for the determination
that verification test data are sufficient to support it.
1.6.4 Reference detail Section:
Equipment Class
Reference FCC ID
PCE (2G/3G)
WYPPC2100
PCE (LTE)
WYPPC2100
PCE (LTE)
WYPPC2100
PCE (LTE)
WYPPC2100
PCE (LTE)
WYPPC2100
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : WYPPG2132
Folder Test
Part22H.24E.27L
(FG792101A)
Part22H.24E.27L.27M.27F.27H
(FG792101B)
Part27D
(FG792101C)
Part90R
(FG792101D)
Part90S
(FW792101)
Report Title/Section
All sections applicable
All sections applicable
All sections applicable
All sections applicable
All sections applicable
Page Number
: 5 of 5
Report Issued Date : Dec. 04, 2017
Report Version
: Rev. 01
FCC RF Test Report
Report No. : FG792101-01C
Appendix A. Reference Report
Please refer to Sporton report number FG792101C which is issued separately.
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158
FAX : +86-512-57900958
FCC ID : WYPPG2132
Page Number
: A1 of A1
Report Issued Date : Dec. 04, 2017
Report Version
: Rev. 01
