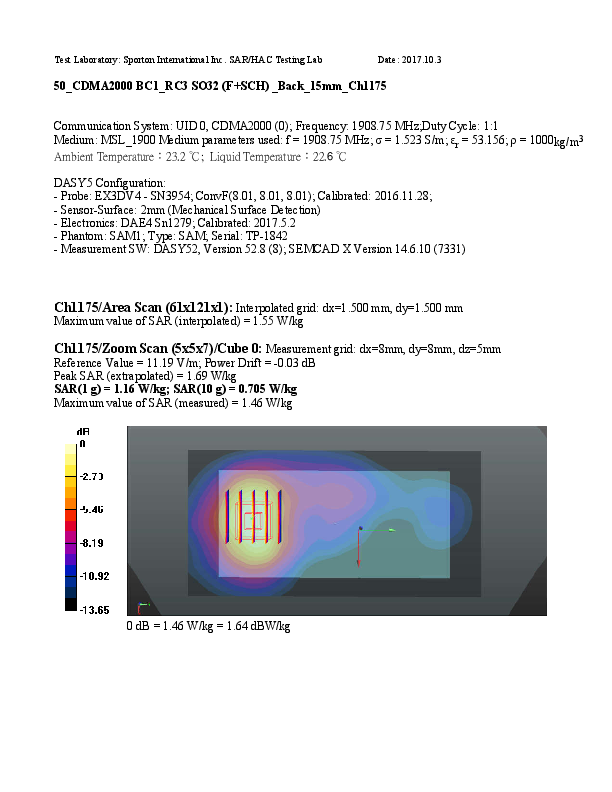

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.3
50_CDMA2000 BC1_RC3 SO32 (F+SCH) _Back_15mm_Ch1175
Communication System: UID 0, CDMA2000 (0); Frequency: 1908.75 MHz;Duty Cycle: 1:1
Medium: MSL_1900 Medium parameters used: f = 1908.75 MHz; σ = 1.523 S/m; εr = 53.156; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.01, 8.01, 8.01); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch1175/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.55 W/kg
Ch1175/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 11.19 V/m; Power Drift = -0.03 dB
Peak SAR (extrapolated) = 1.69 W/kg
SAR(1 g) = 1.16 W/kg; SAR(10 g) = 0.705 W/kg
Maximum value of SAR (measured) = 1.46 W/kg
0 dB = 1.46 W/kg = 1.64 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.30
51_LTE Band 12_10M_QPSK_1RB_0Offset_Back_15mm_Ch23095
Communication System: UID 0, FDD_LTE (0); Frequency: 707.5 MHz;Duty Cycle: 1:1
Medium: MSL_750 Medium parameters used: f = 707.5 MHz; σ = 0.929 S/m; εr = 56.978; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.54, 10.54, 10.54); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch23095/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.409 W/kg
Ch23095/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 19.53 V/m; Power Drift = -0.01 dB
Peak SAR (extrapolated) = 0.428 W/kg
SAR(1 g) = 0.353 W/kg; SAR(10 g) = 0.280 W/kg
Maximum value of SAR (measured) = 0.403 W/kg
0 dB = 0.403 W/kg = -3.95 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
52_LTE Band 13_10M_QPSK_1RB_0Offset_Front_15mm_Ch23230
Communication System: UID 0, FDD_LTE (0); Frequency: 782 MHz;Duty Cycle: 1:1
Medium: MSL_850 Medium parameters used: f = 782 MHz; σ = 0.923 S/m; εr = 57.33; ρ = 1000 kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.54, 10.54, 10.54); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch23230/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.299 W/kg
Ch23230/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 17.13 V/m; Power Drift = 0.01 dB
Peak SAR (extrapolated) = 0.335 W/kg
SAR(1 g) = 0.267 W/kg; SAR(10 g) = 0.204 W/kg
Maximum value of SAR (measured) = 0.308 W/kg
0 dB = 0.308 W/kg = -5.11 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
53_LTE Band 14_10M_QPSK_1RB_0Offset_Back_15mm_Ch23330
Communication System: UID 0, FDD_LTE (0); Frequency: 793 MHz;Duty Cycle: 1:1
Medium: MSL_850 Medium parameters used: f = 793 MHz; σ = 0.933 S/m; εr = 57.238; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.54, 10.54, 10.54); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch23330/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.374 W/kg
Ch23330/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 17.49 V/m; Power Drift = 0.02 dB
Peak SAR (extrapolated) = 0.365 W/kg
SAR(1 g) = 0.310 W/kg; SAR(10 g) = 0.241 W/kg
Maximum value of SAR (measured) = 0.353 W/kg
0 dB = 0.353 W/kg = -4.52 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.1
54_LTE Band 26_15M_QPSK_1RB_74Offset_Front_15mm_Ch26865
Communication System: UID 0, FDD_LTE (0); Frequency: 831.5 MHz;Duty Cycle: 1:1
Medium: MSL_850 Medium parameters used: f = 831.5 MHz; σ = 0.968 S/m; εr = 56.921; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(10.32, 10.32, 10.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM3; Type: SAM; Serial: TP-1839
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch26865/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.646 W/kg
Ch26865/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 24.73 V/m; Power Drift = 0.02 dB
Peak SAR (extrapolated) = 0.656 W/kg
SAR(1 g) = 0.549 W/kg; SAR(10 g) = 0.427 W/kg
Maximum value of SAR (measured) = 0.632 W/kg
0 dB = 0.632 W/kg = -1.99 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.2
55_LTE Band 66_20M_QPSK_1RB_99Offset_Back_15mm_Ch132572
Communication System: UID 0, FDD_LTE (0); Frequency: 1770 MHz;Duty Cycle: 1:1
Medium: MSL_1750 Medium parameters used: f = 1770 MHz; σ = 1.499 S/m; εr = 53.263; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.9 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.32, 8.32, 8.32); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch132572/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 0.720 W/kg
Ch132572/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 7.413 V/m; Power Drift = -0.02 dB
Peak SAR (extrapolated) = 0.715 W/kg
SAR(1 g) = 0.540 W/kg; SAR(10 g) = 0.348 W/kg
Maximum value of SAR (measured) = 0.628 W/kg
0 dB = 0.628 W/kg = -2.02 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.10.3
56_LTE Band 25_20M_QPSK_1RB_0Offset_Back_15mm_Ch26140
Communication System: UID 0, FDD_LTE (0); Frequency: 1860 MHz;Duty Cycle: 1:1
Medium: MSL_1900 Medium parameters used: f = 1860 MHz; σ = 1.467 S/m; εr = 53.329; ρ = 1000kg/m3
Ambient Temperature:23.2 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3954; ConvF(8.01, 8.01, 8.01); Calibrated: 2016.11.28;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1279; Calibrated: 2017.5.2
- Phantom: SAM1; Type: SAM; Serial: TP-1842
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch26140/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm
Maximum value of SAR (interpolated) = 1.13 W/kg
Ch26140/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm
Reference Value = 9.600 V/m; Power Drift = 0.01 dB
Peak SAR (extrapolated) = 1.20 W/kg
SAR(1 g) = 0.878 W/kg; SAR(10 g) = 0.563 W/kg
Maximum value of SAR (measured) = 1.10 W/kg
0 dB = 1.10 W/kg = 0.41 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.26
57_LTE Band 30_10M_QPSK_1RB_0Offset_Back_15mm_Ch27710
Communication System: UID 0, FDD_LTE (0); Frequency: 2310 MHz;Duty Cycle: 1:1
Medium: MSL_2300 Medium parameters used: f = 2310 MHz; σ = 1.787 S/m; εr = 53.509; ρ = 1000kg/m3
Ambient Temperature:23.6 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.87, 7.87, 7.87); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM2; Type: SAM; Serial: TP-1644
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch27710/Area Scan (141x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 0.468 W/kg
Ch27710/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 6.003 V/m; Power Drift = -0.14 dB
Peak SAR (extrapolated) = 0.572 W/kg
SAR(1 g) = 0.336 W/kg; SAR(10 g) = 0.188 W/kg
Maximum value of SAR (measured) = 0.450 W/kg
0 dB = 0.450 W/kg = -3.47 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.26
58_LTE Band 7_20M_QPSK_1RB_99Offset_Back_15mm_Ch20850
Communication System: UID 0, FDD_LTE (0); Frequency: 2510 MHz;Duty Cycle: 1:1
Medium: MSL_2600 Medium parameters used: f = 2510 MHz; σ = 2.067 S/m; εr = 52.827; ρ = 1000kg/m3
Ambient Temperature:23.3 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.7, 7.7, 7.7); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch20850/Area Scan (141x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 0.600 W/kg
Ch20850/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 5.239 V/m; Power Drift = 0.06 dB
Peak SAR (extrapolated) = 0.864 W/kg
SAR(1 g) = 0.434 W/kg; SAR(10 g) = 0.226 W/kg
Maximum value of SAR (measured) = 0.632 W/kg
0 dB = 0.632 W/kg = -1.99 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.9.26
59_LTE Band 41_20M_QPSK_1RB_99Offset_Back_15mm_Ch39750
Communication System: UID 0, TDD_LTE (0); Frequency: 2506 MHz;Duty Cycle: 1:1.59
Medium: MSL_2600 Medium parameters used: f = 2506 MHz; σ = 2.061 S/m; εr = 52.841; ρ = 1000kg/m3
Ambient Temperature:23.3 ℃; Liquid Temperature:22.7 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.7, 7.7, 7.7); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch39750/Area Scan (131x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 0.406 W/kg
Ch39750/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 3.798 V/m; Power Drift = 0.13 dB
Peak SAR (extrapolated) = 0.526 W/kg
SAR(1 g) = 0.260 W/kg; SAR(10 g) = 0.137 W/kg
Maximum value of SAR (measured) = 0.383 W/kg
0 dB = 0.383 W/kg = -4.17 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.23
60_WLAN2.4GHz_802.11b 1Mbps_Back_15mm_Ch11
Communication System: UID 0, WIFI (0); Frequency: 2462 MHz;Duty Cycle: 1:1.025
Medium: MSL_2450 Medium parameters used: f = 2462 MHz; σ = 2.02 S/m; εr = 53.046; ρ = 1000kg/m3
Ambient Temperature:23.5 ℃; Liquid Temperature:22.5 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.7, 7.7, 7.7); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch11/Area Scan (141x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 0.113 W/kg
Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 5.828 V/m; Power Drift = -0.15 dB
Peak SAR (extrapolated) = 0.143 W/kg
SAR(1 g) = 0.079 W/kg; SAR(10 g) = 0.046 W/kg
Maximum value of SAR (measured) = 0.111 W/kg
0 dB = 0.111 W/kg = -9.55 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.28
61_WLAN5.3GHz_802.11a 6Mbps_Front_15mm_Ch64
Communication System: UID 0, WIFI (0); Frequency: 5320 MHz;Duty Cycle: 1:1.143
Medium: MSL_5000 Medium parameters used: f = 5320 MHz; σ = 5.472 S/m; εr = 48.928; ρ = 1000kg/m3
Ambient Temperature:23.5 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(4.72, 4.72, 4.72); Calibrated: 2017.5.26;
- Sensor-Surface: 1.4mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch64/Area Scan (151x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm
Maximum value of SAR (interpolated) = 0.301 W/kg
Ch64/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm
Reference Value = 0.5040 V/m; Power Drift = -0.19 dB
Peak SAR (extrapolated) = 0.501 W/kg
SAR(1 g) = 0.121 W/kg; SAR(10 g) = 0.048 W/kg
Maximum value of SAR (measured) = 0.286 W/kg
0 dB = 0.286 W/kg = -5.44 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.29
62_WLAN5.5GHz_802.11a 6Mbps_Front_15mm_Ch116
Communication System: UID 0, WIFI (0); Frequency: 5580 MHz;Duty Cycle: 1:1.143
Medium: MSL_5000 Medium parameters used: f = 5580 MHz; σ = 5.842 S/m; εr = 48.345; ρ = 1000kg/m3
Ambient Temperature:23.5 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(4.01, 4.01, 4.01); Calibrated: 2017.5.26;
- Sensor-Surface: 1.4mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch116/Area Scan (151x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm
Maximum value of SAR (interpolated) = 0.551 W/kg
Ch116/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm
Reference Value = 1.042 V/m; Power Drift = -0.11 dB
Peak SAR (extrapolated) = 0.967 W/kg
SAR(1 g) = 0.236 W/kg; SAR(10 g) = 0.092 W/kg
Maximum value of SAR (measured) = 0.546 W/kg
0 dB = 0.546 W/kg = -2.63 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.30
63_WLAN5.8GHz_802.11a 6Mbps_Front_15mm_Ch165
Communication System: UID 0, WIFI (0); Frequency: 5825 MHz;Duty Cycle: 1:1.143
Medium: MSL_5000 Medium parameters used: f = 5825 MHz; σ = 6.166 S/m; εr = 47.679; ρ = 1000kg/m3
Ambient Temperature:23.4 ℃; Liquid Temperature:22.6 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(4.31, 4.31, 4.31); Calibrated: 2017.5.26;
- Sensor-Surface: 1.4mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM2; Type: SAM; Serial: TP-1644
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch165/Area Scan (151x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm
Maximum value of SAR (interpolated) = 0.952 W/kg
Ch165/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm
Reference Value = 1.553 V/m; Power Drift = 0.04 dB
Peak SAR (extrapolated) = 1.69 W/kg
SAR(1 g) = 0.403 W/kg; SAR(10 g) = 0.154 W/kg
Maximum value of SAR (measured) = 0.944 W/kg
0 dB = 0.944 W/kg = -0.25 dBW/kg
Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab
Date: 2017.11.23
64_ Bluetooth_1Mbps_Back_15mm_Ch78
Communication System: UID 0, Bluetooth (0); Frequency: 2480 MHz;Duty Cycle: 1:1.298
Medium: MSL_2450 Medium parameters used: f = 2480 MHz; σ = 2.046 S/m; εr = 52.969; ρ = 1000kg/m3
Ambient Temperature:23.5 ℃; Liquid Temperature:22.5 ℃
DASY5 Configuration:
- Probe: EX3DV4 - SN3857; ConvF(7.7, 7.7, 7.7); Calibrated: 2017.5.26;
- Sensor-Surface: 2mm (Mechanical Surface Detection)
- Electronics: DAE4 Sn1210; Calibrated: 2017.5.25
- Phantom: SAM1; Type: SAM; Serial: TP-1164
- Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)
Ch78/Area Scan (141x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm
Maximum value of SAR (interpolated) = 0.0186 W/kg
Ch78/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm
Reference Value = 1.982 V/m; Power Drift = -0.13 dB
Peak SAR (extrapolated) = 0.0240 W/kg
SAR(1 g) = 0.010 W/kg; SAR(10 g) = 0.00442 W/kg
Maximum value of SAR (measured) = 0.0156 W/kg
0 dB = 0.0156 W/kg = -18.07 dBW/kg
FCC SAR Test Report
Appendix C.
Report No. : FA792101
DASY Calibration Certificate
The DASY calibration certificates are shown as follows.
Sporton International (Kunshan) Inc.
TEL : +86-512-57900158 / FAX : +86-512-57900958
FCC ID : WYPPC2100
Page C1 of C1
Issued Date : Dec. 04, 2017
Form version. : 170509
ln C01aborat on witP
中国状可
国際互沢
校准
s p e a
CAu麒
●ON
LAB● RAT● RY
CALIBRAT10N
CNAS L0570
Add No 51 Xuc、 uan Road Haidian D sti ct,Boll13.1001'1,Chha
:ヽ
E‐
1: 186 10‐
623o4633‐ 2079
m“ I cul● china"Icom
「
a、 │■ 86‐ 10‐ 62304633‐
lhl■ ●、
、
、、
、chil‖
2504
せ
Certificate No:
Sporton-CN
C‖ ent
Z16‐ 97226
CALIBRATiON CERTIFiCATE
Object
calibration
D17SOV2 - SN: 1069
Procedure(")
ro-zrr-ooa-ot
Calibration Procedures for dipole validation kits
Calibration
date:
November 23, 2016
This calibration Certificate documents the traceability to national standads, which realize the physical units of
measurements(Sl). The measurements and the uncertainties with confidence probability are given on the following
pages and are part ofthe certjficate.
All calibrations have been conducted in the closed laboratory facility: environment temperature(22$)
and
humidity<70%
Calibration Equipment used (M&TE critical for calibration)
Primary
Power
Power
Standards
Meter NRP2
sensor NRP-291
Reference Probe EX3DV4
DAE4
Secondary Standards
Signal Generator E4438C
NeWyork Analyze「
E5071C
lD
101919
101547
SN 7433
SN 774
No.)
16(CTTL,No」 16X04777)
27-」 un-16(CTTL,No J40X04777)
26‐ Sep_16(SPEAC No EX3-7433_Sep16)
02-Feb-46(CTTLSPEAQNo Z16‐ 97014)
27‐ Jun‐
1D#
Cal Date(Ca‖ brated Oy Certincate
MY49071430 01-Feb 46(CTTL,No」 16X00893)
MY46440673 26‐ 」an‐ 16(CTTL,No J16X00894)
Name
Callbrated by:
Cal Date(Calibrated by, Certificate
Functon
Zhao Jing
SAR Test Engineef
Reviewed by:
QiDianyuan
SAR P「 olect Leader
Approved by:
Lu Bingsong
Deputy帥
No)
Scheduled Calibration
」un-17
」un-47
Sep-17
Feb‐ 17
Scheduled Ca‖ brat on
」an-47
」an-17
Signature
/る ・
ぬ
∝
耐
“
ilふ 。
而
L攣
“
This calibration certificate shall not be reproduced except in full without written approval of the laboratory.
CcltiFleatc NO:Z16-97226
ln Colaboralon wi●
s p e a
率
CAuBRAnON IAB● RAT● Ⅳ
Add No 51 xuc、 uan Road [ュ d an Di、 1l
Ttll+86 11‐ 62oo1633‐ 20,,
■ m敲 lc"● chilatJ“ 】,,
Glossary:
TSL
ConvF
N/A
ct l,ビ
l ng 100191 China
11●、│_86‐ 10-623(,4633‐ 2501
Hltp● w、 、コ11latu cn
tissue simulating liquid
sensitivity in TSL / NORMx,y,z
not applicable or not measured
Calibration is Performed According to the Following Standards:
a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the peak
Spatial-Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless
Communications Devices: Measurement Techniques", June 20 l3
b) IEC 62209-1, "Procedure to measure the Specific Absorption Rate (SAR) For hand-held
devices used in close proximity to the ear (frequency range of 3OOMHz to 3GHz),,, February
2005
c) IEC 62209-2, "Procedure lo measure the Specific Absorption Rate (SAR) For wireless
communication devices used in close proximity to the human body (frequency range of
30MHz to 6GHz)", March 2010
d) KD8865664, SAR Measurement Requirements for 1OO MHz to 6 cHz
Additional Documentation:
e) DASY4/5 System Handbook
Methods Applied and lnterpretation of Parameters:
Measurement Condlfions: Further details are available from the Validation Report at the end
of the certificate. All figures stated in the certificate are valid at the frequency indicated.
Antenna Parameters with fSLi The dipole is mounted with the spacer to position its feed
point exactly below the center marking of the flat phantom section, with the arms oriented
parallel to the body axis.
Feed Point lmpedance and Retum Lossj These parameters are measured with the dipole
positioned under the liquid filled phantom. The impedance stated is transformed from the
measurement at the SMA connector to the feed point. The Return Loss ensures low
reflected power. No unce(ainty required.
Electrical Delay:One-way delay between the SMA connector and the antenna feed point.
No uncertainty required.
SAR measured: SAR measured at the stated antenna input power.
SAR normalized: SAR as measured, normalized to an input power of .l W atthe antenna
connector.
SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the
nominal SAR result.
The reported uncertainty of measurement is stated as the standard uncertainty of
Measurement multiplied by the coverage factor k=2, which for a normal distribution
Corresponds to a coverage probability of approximately 95%.
CeltlFlcate No:Z16-97226
Page
I of8
Download: PG2132 LTE Phone RF Exposure Info Ref XP5800 Test Report RFExp Part 3 Sonim Technologies, Inc.
Mirror Download [FCC.gov]PG2132 LTE Phone RF Exposure Info Ref XP5800 Test Report RFExp Part 3 Sonim Technologies, Inc.
Document ID3670941
Application ID/wwpUB0Oc211HtaZtGJaLw==
Document DescriptionRef XP5800 Test Report RFExp Part 3
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeRF Exposure Info
Display FormatAdobe Acrobat PDF - pdf
Filesize454.6kB (5682468 bits)
Date Submitted2017-12-11 00:00:00
Date Available2017-12-13 00:00:00
Creation Date2017-12-04 18:13:57
Producing SoftwareFoxit PhantomPDF - Foxit Software Inc.
Document Lastmod2017-12-04 19:14:06
Document TitleRef XP5800 Test Report RFExp Part 3
Document Author: sarachen

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.7
Linearized                      : No
Author                          : sarachen
Create Date                     : 2017:12:04 18:13:57
Modify Date                     : 2017:12:04 19:14:06+08:00
Producer                        : Foxit PhantomPDF - Foxit Software Inc.
Has XFA                         : No
Page Count                      : 34
