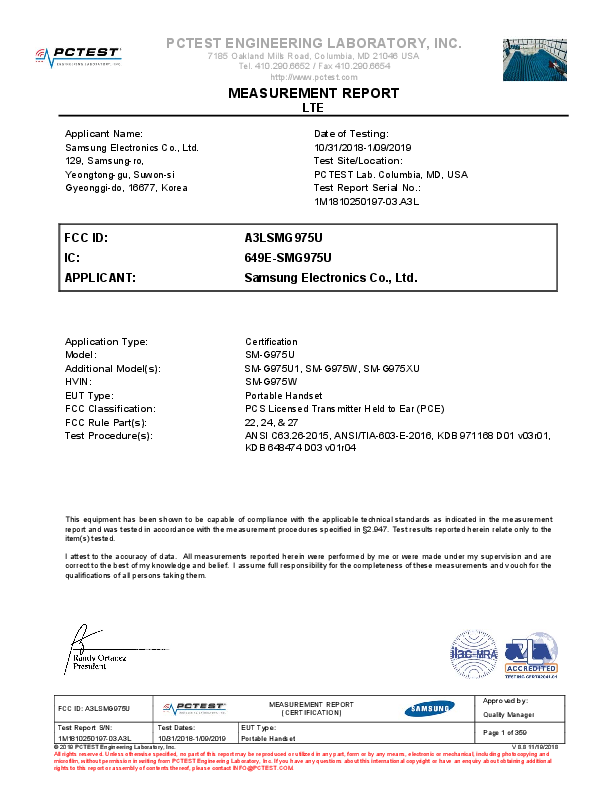

PCTEST ENGINEERING LABORATORY, INC.
7185 Oakland Mills Road, Columbia, MD 21046 USA
Tel. 410.290.6652 / Fax 410.290.6654
http://www.pctest.com
MEASUREMENT REPORT
LTE
Applicant Name:
Samsung Electronics Co., Ltd.
129, Samsung-ro,
Yeongtong-gu, Suwon-si
Gyeonggi-do, 16677, Korea
Date of Testing:
10/31/2018-1/09/2019
Test Site/Location:
PCTEST Lab. Columbia, MD, USA
Test Report Serial No.:
1M1810250197-03.A3L
FCC ID:
A3LSMG975U
IC:
649E-SMG975U
APPLICANT:
Samsung Electronics Co., Ltd.
Application Type:
Model:
Additional Model(s):
HVIN:
EUT Type:
FCC Classification:
FCC Rule Part(s):
Test Procedure(s):
Certification
SM-G975U
SM-G975U1, SM-G975W, SM-G975XU
SM-G975W
Portable Handset
PCS Licensed Transmitter Held to Ear (PCE)
22, 24, & 27
ANSI C63.26-2015, ANSI/TIA-603-E-2016, KDB 971168 D01 v03r01,
KDB 648474 D03 v01r04
This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement
report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the
item(s) tested.
I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are
correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the
qualifications of all persons taking them.
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 1 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
T A B L E
1.0
2.0
3.0
O F
C O N T E N T S
INTRODUCTION ........................................................................................................................................... 6
1.1
Scope ................................................................................................................................................................. 6
1.2
PCTEST Test Location ....................................................................................................................................... 6
1.3
Test Facility / Accreditations ............................................................................................................................... 6
PRODUCT INFORMATION........................................................................................................................... 7
2.1
Equipment Description ....................................................................................................................................... 7
2.2
Device Capabilities ............................................................................................................................................. 7
2.3
Test Configuration .............................................................................................................................................. 8
2.4
EMI Suppression Device(s)/Modifications .......................................................................................................... 8
DESCRIPTION OF TESTS ........................................................................................................................... 9
3.1
Measurement Procedure .................................................................................................................................... 9
3.2
Block C Frequency Range ................................................................................................................................. 9
3.3
Block A Frequency Range .................................................................................................................................. 9
3.4
Cellular - Base Frequency Blocks ...................................................................................................................... 9
3.5
Cellular - Mobile Frequency Blocks .................................................................................................................... 9
3.6
PCS - Base Frequency Blocks ......................................................................................................................... 10
3.7
PCS - Mobile Frequency Blocks ....................................................................................................................... 10
3.8
AWS - Base Frequency Blocks ........................................................................................................................ 10
3.9
AWS - Mobile Frequency Blocks ...................................................................................................................... 11
3.10
WCS – Mobile/Base Frequency Blocks ............................................................................................................ 11
3.11
BRS/EBS Frequency Block .............................................................................................................................. 11
3.12
Radiated Power and Radiated Spurious Emissions ......................................................................................... 12
4.0
MEASUREMENT UNCERTAINTY .............................................................................................................. 13
5.0
TEST EQUIPMENT CALIBRATION DATA ................................................................................................. 14
6.0
SAMPLE CALCULATIONS ......................................................................................................................... 15
7.0
TEST RESULTS .......................................................................................................................................... 16
8.0
7.1
Summary .......................................................................................................................................................... 16
7.2
Occupied Bandwidth ........................................................................................................................................ 18
7.3
Spurious and Harmonic Emissions at Antenna Terminal ................................................................................. 93
7.4
Band Edge Emissions at Antenna Terminal ................................................................................................... 138
7.5
Peak-Average Ratio ....................................................................................................................................... 209
7.6
Additional Maximum Power Reduction (A-MPR) ............................................................................................ 234
7.7
Uplink Carrier Aggregation ............................................................................................................................. 236
7.8
Radiated Power (ERP/EIRP) .......................................................................................................................... 276
7.9
Radiated Spurious Emissions Measurements ................................................................................................ 288
7.10
Uplink Carrier Aggregation Radiated Measurements ..................................................................................... 318
7.11
Frequency Stability / Temperature Variation .................................................................................................. 340
CONCLUSION ........................................................................................................................................... 359
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 2 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
MEASUREMENT REPORT
FCC Part 22, 24, & 27
EIRP
ERP
Mode
FCC Rule
Part
Tx Frequency (MHz)
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 71
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 12
LTE Band 13
LTE Band 13
LTE Band 13
LTE Band 13
LTE Band 13
LTE Band 13
LTE Band 13
LTE Band 13
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 5/26
LTE Band 26
LTE Band 26
LTE Band 26
LTE Band 26
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
22H
22H
22H
22H
22H
22H
22H
22H
22H
22H
22H
22H
22H
22H
22H
22H
22H
22H
22H
22H
665.5 - 695.5
665.5 - 695.5
665.5 - 695.5
665.5 - 695.5
668 - 693
668 - 693
668 - 693
668 - 693
670.5 - 690.5
670.5 - 690.5
670.5 - 690.5
670.5 - 690.5
673 - 688
673 - 688
673 - 688
673 - 688
699.7 - 715.3
699.7 - 715.3
699.7 - 715.3
699.7 - 715.3
700.5 - 714.5
700.5 - 714.5
700.5 - 714.5
700.5 - 714.5
701.5 - 713.5
701.5 - 713.5
701.5 - 713.5
701.5 - 713.5
704 - 711
704 - 711
704 - 711
704 - 711
779.5 - 784.5
779.5 - 784.5
779.5 - 784.5
779.5 - 784.5
782
782
782
782
824.7 - 848.3
824.7 - 848.3
824.7 - 848.3
824.7 - 848.3
825.5 - 847.5
825.5 - 847.5
825.5 - 847.5
825.5 - 847.5
826.5 - 846.5
826.5 - 846.5
826.5 - 846.5
826.5 - 846.5
829 - 844
829 - 844
829 - 844
829 - 844
831.5 - 841.5
831.5 - 841.5
831.5 - 841.5
831.5 - 841.5
Max. Power Max. Power Max. Power Max. Power
(W)
(dBm)
(W)
(dBm)
0.166
0.107
0.084
0.041
0.181
0.116
0.091
0.045
0.202
0.133
0.104
0.050
0.196
0.129
0.101
0.048
0.187
0.142
0.109
0.046
0.163
0.118
0.081
0.051
0.162
0.133
0.102
0.066
0.182
0.128
0.097
0.065
0.123
0.105
0.079
0.039
0.125
0.096
0.077
0.037
0.125
0.104
0.086
0.045
0.137
0.110
0.087
0.044
0.130
0.107
0.083
0.041
0.129
0.108
0.085
0.041
0.125
0.105
0.086
0.033
22.20
20.29
19.25
16.14
22.58
20.64
19.60
16.49
23.06
21.23
20.17
16.98
22.93
21.12
20.02
16.77
22.71
21.53
20.39
16.60
22.11
20.71
19.07
17.07
22.09
21.25
20.08
18.19
22.61
21.08
19.88
18.10
20.89
20.20
18.96
15.86
20.98
19.82
18.85
15.71
20.96
20.19
19.36
16.52
21.36
20.43
19.40
16.46
21.13
20.28
19.21
16.14
21.09
20.32
19.30
16.11
20.98
20.23
19.35
15.14
0.306
0.233
0.180
0.075
0.267
0.193
0.132
0.084
0.265
0.219
0.167
0.108
0.299
0.210
0.159
0.106
0.201
0.172
0.129
0.063
0.206
0.157
0.126
0.061
0.205
0.171
0.142
0.074
0.224
0.181
0.143
0.073
0.213
0.175
0.137
0.067
0.211
0.177
0.140
0.067
0.206
0.173
0.141
0.054
24.86
23.68
22.54
18.75
24.26
22.86
21.22
19.22
24.24
23.40
22.23
20.34
24.76
23.23
22.03
20.25
23.04
22.35
21.11
18.01
23.13
21.97
21.00
17.86
23.11
22.34
21.51
18.67
23.51
22.58
21.55
18.61
23.28
22.43
21.36
18.29
23.24
22.47
21.45
18.26
23.13
22.38
21.50
17.29
Emission
Designator
Modulation
4M52G7D
4M51W7D
4M51W7D
4M50W7D
9M03G7D
8M97W7D
9M01W7D
9M00W7D
13M5G7D
13M5W7D
13M5W7D
13M5W7D
18M0G7D
17M9W7D
18M0W7D
17M9W7D
1M09G7D
1M10W7D
1M10W7D
1M10W7D
2M71G7D
2M71W7D
2M71W7D
2M72W7D
4M52G7D
4M50W7D
4M51W7D
4M51W7D
8M98G7D
8M97W7D
9M01W7D
9M01W7D
4M52G7D
4M51W7D
4M49W7D
4M50W7D
8M97G7D
8M96W7D
8M98W7D
8M98W7D
1M09G7D
1M10W7D
1M09W7D
1M09W7D
2M71G7D
2M71W7D
2M73W7D
2M70W7D
4M52G7D
4M50W7D
4M51W7D
4M49W7D
9M04G7D
9M01W7D
9M00W7D
8M99W7D
13M4G7D
13M5W7D
13M4W7D
13M4W7D
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
EUT Overview (<1GHz)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 3 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
EIRP
Mode
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
LTE
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 4/66
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
Band 2/25
FCC Rule
Part
Tx Frequency (MHz)
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
24E
1710.7 - 1779.3
1710.7 - 1779.3
1710.7 - 1779.3
1710.7 - 1779.3
1711.5 - 1778.5
1711.5 - 1778.5
1711.5 - 1778.5
1711.5 - 1778.5
1712.5 - 1777.5
1712.5 - 1777.5
1712.5 - 1777.5
1712.5 - 1777.5
1715 - 1775
1715 - 1775
1715 - 1775
1715 - 1775
1717.5 - 1772.5
1717.5 - 1772.5
1717.5 - 1772.5
1717.5 - 1772.5
1720 - 1770
1720 - 1770
1720 - 1770
1720 - 1770
1850.7 - 1914.3
1850.7 - 1914.3
1850.7 - 1914.3
1850.7 - 1914.3
1851.5 - 1913.5
1851.5 - 1913.5
1851.5 - 1913.5
1851.5 - 1913.5
1852.5 - 1912.5
1852.5 - 1912.5
1852.5 - 1912.5
1852.5 - 1912.5
1855 - 1910
1855 - 1910
1855 - 1910
1855 - 1910
1857.5 - 1907.5
1857.5 - 1907.5
1857.5 - 1907.5
1857.5 - 1907.5
1860 - 1905
1860 - 1905
1860 - 1905
1860 - 1905
Max. Pow er Max. Pow er
(W)
(dBm)
0.201
0.170
0.135
0.078
0.192
0.184
0.143
0.074
0.129
0.113
0.090
0.051
0.146
0.113
0.067
0.058
0.193
0.160
0.131
0.076
0.212
0.170
0.148
0.066
0.170
0.148
0.139
0.100
0.180
0.161
0.130
0.048
0.175
0.150
0.121
0.047
0.164
0.138
0.113
0.046
0.194
0.166
0.135
0.053
0.184
0.171
0.131
0.050
23.04
22.30
21.32
18.90
22.83
22.66
21.57
18.67
21.12
20.53
19.53
17.11
21.64
20.55
18.25
17.63
22.86
22.04
21.18
18.81
23.27
22.30
21.70
18.20
22.30
21.69
21.44
20.02
22.55
22.07
21.13
16.85
22.44
21.77
20.83
16.73
22.15
21.41
20.55
16.60
22.87
22.20
21.29
17.21
22.64
22.33
21.16
17.03
Emission
Designator
Modulation
1M10G7D
1M09W7D
1M10W7D
1M11W7D
2M70G7D
2M72W7D
2M71W7D
2M71W7D
4M57G7D
4M50W7D
4M52W7D
4M51W7D
9M01G7D
9M01W7D
9M02W7D
8M99W7D
13M5G7D
13M5W7D
13M5W7D
13M5W7D
18M0G7D
18M0W7D
18M0W7D
18M0W7D
1M10G7D
1M10W7D
1M10W7D
1M09W7D
2M71G7D
2M73W7D
2M72W7D
2M72W7D
4M52G7D
4M51W7D
4M52W7D
4M51W7D
9M05G7D
9M00W7D
9M03W7D
8M99W7D
13M5G7D
13M5W7D
13M5W7D
13M5W7D
18M0G7D
18M0W7D
18M0W7D
18M0W7D
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
EUT Overview (Mid Bands)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 4 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
EIRP
Mode
FCC Rule
Part
Tx Frequency (MHz)
Max. Power
(W)
Max. Power
(dBm/10MHz)
Emission
Designator
Modulation
LTE Band 30
LTE Band 30
LTE Band 30
LTE Band 30
LTE Band 30
LTE Band 30
LTE Band 30
LTE Band 30
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant B)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 7 (Ant A)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC3)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
LTE Band 41 (PC2)
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
2307.5 - 2312.5
2307.5 - 2312.5
2307.5 - 2312.5
2307.5 - 2312.5
2310
2310
2310
2310
2502.5 - 2567.5
2502.5 - 2567.5
2502.5 - 2567.5
2502.5 - 2567.5
2505 - 2565
2505 - 2565
2505 - 2565
2505 - 2565
2507.5 - 2562.5
2507.5 - 2562.5
2507.5 - 2562.5
2507.5 - 2562.5
2510 - 2560
2510 - 2560
2510 - 2560
2510 - 2560
2502.5 - 2567.5
2502.5 - 2567.5
2502.5 - 2567.5
2502.5 - 2567.5
2505 - 2565
2505 - 2565
2505 - 2565
2505 - 2565
2507.5 - 2562.5
2507.5 - 2562.5
2507.5 - 2562.5
2507.5 - 2562.5
2510 - 2560
2510 - 2560
2510 - 2560
2510 - 2560
2498.5 - 2687.5
2498.5 - 2687.5
2498.5 - 2687.5
2498.5 - 2687.5
2501 - 2685
2501 - 2685
2501 - 2685
2501 - 2685
2503.5 - 2682.5
2503.5 - 2682.5
2503.5 - 2682.5
2503.5 - 2682.5
2506 - 2680
2506 - 2680
2506 - 2680
2506 - 2680
2498.5 - 2687.5
2498.5 - 2687.5
2498.5 - 2687.5
2498.5 - 2687.5
2501 - 2685
2501 - 2685
2501 - 2685
2501 - 2685
2503.5 - 2682.5
2503.5 - 2682.5
2503.5 - 2682.5
2503.5 - 2682.5
2506 - 2680
2506 - 2680
2506 - 2680
2506 - 2680
0.136
0.104
0.075
0.046
0.140
0.107
0.097
0.047
0.106
0.085
0.069
0.038
0.120
0.082
0.070
0.044
0.111
0.087
0.074
0.043
0.122
0.101
0.081
0.047
0.092
0.078
0.039
0.029
0.092
0.070
0.051
0.037
0.095
0.078
0.064
0.038
0.102
0.080
0.059
0.033
0.132
0.139
0.088
0.064
0.152
0.114
0.111
0.098
0.183
0.164
0.130
0.085
0.177
0.166
0.146
0.113
0.311
0.250
0.202
0.109
0.327
0.247
0.211
0.112
0.345
0.273
0.224
0.118
0.367
0.291
0.255
0.134
21.34
20.19
18.74
16.64
21.45
20.31
19.86
16.68
20.26
19.30
18.40
15.85
20.79
19.14
18.48
16.39
20.47
19.38
18.67
16.37
20.86
20.06
19.11
16.75
19.64
18.92
15.90
14.66
19.63
18.44
17.11
15.67
19.79
18.91
18.06
15.76
20.08
19.03
17.74
15.19
21.2
21.42
19.44
18.07
21.81
20.58
20.45
19.92
22.62
22.14
21.14
19.28
22.49
22.21
21.64
20.52
24.93
23.98
23.05
20.38
25.15
23.93
23.25
20.49
25.38
24.36
23.50
20.73
25.65
24.64
24.07
21.26
4M56G7D
4M52W7D
4M52W7D
4M51W7D
9M01G7D
9M03W7D
8M99W7D
8M99W7D
4M52G7D
4M52W7D
4M51W7D
4M51W7D
9M05G7D
9M01W7D
8M95W7D
9M02W7D
13M5G7D
13M5W7D
13M5W7D
13M5W7D
18M1G7D
18M0W7D
18M0W7D
18M0W7D
4M52G7D
4M52W7D
4M51W7D
4M51W7D
9M01G7D
8M98W7D
9M01W7D
9M00W7D
13M5G7D
13M5W7D
13M5W7D
13M5W7D
18M0G7D
18M0W7D
18M0W7D
18M0W7D
4M52G7D
4M52W7D
4M53W7D
4M53W7D
9M01G7D
8M98W7D
9M01W7D
9M00W7D
13M5G7D
13M5W7D
13M5W7D
13M5W7D
18M0G7D
18M0W7D
18M0W7D
18M0W7D
4M52G7D
4M52W7D
4M53W7D
4M53W7D
9M01G7D
8M98W7D
9M01W7D
9M00W7D
13M5G7D
13M5W7D
13M5W7D
13M5W7D
18M0G7D
18M0W7D
18M0W7D
18M0W7D
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
QPSK
16QAM
64QAM
256QAM
EUT Overview (High Bands)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 5 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
1.0
1.1
INTRODUCTION
Scope
Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including
intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal
Communications Commission and the Innovation, Science and Economic Development Canada.
1.2
PCTEST Test Location
These measurement tests were conducted at the PCTEST Engineering Laboratory, Inc. facility located at 7185
Oakland Mills Road, Columbia, MD 21046. The measurement facility is compliant with the test site requirements
specified in ANSI C63.4-2014.
1.3
Test Facility / Accreditations
Measurements were performed at PCTEST Engineering Lab located in Columbia, MD 21046, U.S.A.

PCTEST is an ISO 17025-2005 accredited test facility under the American Association for Laboratory
Accreditation (A2LA) with Certificate number 2041.01 for Specific Absorption Rate (SAR), Hearing Aid
Compatibility (HAC) testing, where applicable, and Electromagnetic Compatibility (EMC) testing for FCC and
Innovation, Science, and Economic Development Canada rules.

PCTEST TCB is a Telecommunication Certification Body (TCB) accredited to ISO/IEC 17065-2012 by A2LA
(Certificate number 2041.03) in all scopes of FCC Rules and ISED Standards (RSS).

PCTEST facility is a registered (2451B) test laboratory with the site description on file with ISED.
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 6 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
2.0
2.1
PRODUCT INFORMATION
Equipment Description
The Equipment Under Test (EUT) is the Samsung Portable Handset FCC ID: A3LSMG975U. The test data
contained in this report pertains only to the emissions due to the EUT’s LTE function.
Test Device Serial No.: 0589M, 0547M, 1339M, 0487M, 0775M, 0968M, 0300M, 0474M, 0338M, 0500M, 0388M,
0163M, 0368M
2.2
Device Capabilities
This device contains the following capabilities:
800/850/1900 CDMA/EvDO Rev0/A, 1x Advanced (BC0, BC1, BC10), 850/1900 GSM/GPRS/EDGE,
850/1700/1900 WCDMA/HSPA, Multi-band LTE, 802.11b/g/n/ax WLAN, 802.11a/n/ac/ax UNII, Bluetooth (1x, EDR,
LE), NFC, ANT+
LTE Band 26 (814.7 – 849 MHz) overlaps the entire frequency range of LTE Band 5 (824 – 849 MHz). Therefore,
test data provided in this report covers Band 5 and the portion of Band 26 subject to Part 22.
LTE Band 66 (1710 - 1780 MHz) overlaps the entire frequency range of LTE Band 4 (1710 - 1755 MHz). Therefore,
test data provided in this report covers Band 4 as well as Band 66.
LTE Band 25 (1850 - 1915 MHz) overlaps the entire frequency range of LTE Band 2 (1850 - 1910 MHz). Therefore,
test data provided in this report covers Band 2 as well as Band 25.
LTE Band 41 (2496 - 2690 MHz) overlaps the entire frequency range of LTE Band 38 (2570 - 2620 MHz). Therefore,
test data provided in this report covers Band 38 as well as Band 41.
This device uses a tuner circuit that dynamically updates the antenna impedance parameters to optimize antenna
performance for certain bands and modes of operation. The tuner for this device was set to simulate a "free space"
condition where the transmit antenna is matched to the medium into which it is transmitting and, thus, the power is
at its maximum level.
This device employs an antenna switching mechanism that allows for radiated transmission from one of two
antennas at a time for LTE B7. LTE B7 RF tests were performed with a manufacturer SW test code that simulated
the two transmit conditions, and it was verified that the test results in this report reflect the actual transmit conditions.
Both antennas cannot transmit simultaneously so dual transmission conditions were not investigated. The main
transmit antenna data is labeled as "Antenna B" and the secondary transmit antenna data is labeled as "Antenna
A" in the radiated section of this report.
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 7 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
2.3
Test Configuration
The EUT was tested per the guidance of ANSI/TIA-603-E-2016 and KDB 971168 D01 v03r01. See Section 7.0 of
this test report for a description of the radiated and antenna port conducted emissions tests.
This device supports wireless charging capability and, thus, is subject to the test requirements of KDB 648474 D03
v01r04. Additional radiated spurious emission measurements were performed with the EUT placed flush against
the flat surface of authorized wireless charging pad (WCP) Model: EP-N5100 while operating under normal
conditions in a simulated call or data transmission configuration. The WCP is designed with the flat charging surface
angled 45 degrees relative to a horizontal surface on which the WCP rests. The worst case radiated emissions data
is shown in this report.
2.4
EMI Suppression Device(s)/Modifications
No EMI suppression device(s) were added and no modifications were made during testing.
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 8 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
3.0
3.1
DESCRIPTION OF TESTS
Measurement Procedure
The measurement procedures described in the document titled “Land Mobile FM or PM – Communications
Equipment – Measurements and Performance Standards” (ANSI/TIA-603-E-2016) and “Procedures for Compliance
Measurement of the Fundamental Emission Power of Licensed Wideband (> 1 MHz) Digital Transmission Systems”
(KDB 971168 D01 v03r01) were used in the measurement of the EUT.
3.2
Block C Frequency Range
Two paired channels of 11 megahertz each are available for assignment in Block C in the 746-757 MHz and 776787 MHz bands. In the event that no licenses for two channels in this Block C are assigned based on the results of
the first auction in which such licenses were offered because the auction results do not satisfy the applicable reserve
price, the spectrum in the 746-757 MHz and 776-787 MHz bands will instead be made available for assignment at
a subsequent auction as follows: (i) Two paired channels of 6 megahertz each available for assignment in Block C1
in the 746-752 MHz and 776-782 MHz bands. (ii) Two paired channels of 5 megahertz each available for assignment
in Block C2 in the 752-757 MHz and 782-787 MHz bands.
3.3
Block A Frequency Range
698-746 MHz band. The following frequencies are available for licensing pursuant to this part in the 698-746 MHz
band: (1) Three paired channel blocks of 12 megahertz each are available for assignment as follows:
Block A: 698-704 MHz and 728-734 MHz;
Block B: 704-710 MHz and 734-740 MHz; and
Block C: 710-716 MHz and 740-746 MHz.
3.4
Cellular - Base Frequency Blocks
A*
Low
869
880
B*
890
BLOCK 1: 869 – 880 MHz (A* Low + A)
BLOCK 2: 880 – 890 MHz (B)
3.5
A*
High
894
BLOCK 3: 890 – 891.5 MHz (A* High)
BLOCK 4: 891.5 – 894 MHz (B*)
Cellular - Mobile Frequency Blocks
A*
Low
824
835
845
BLOCK 1: 824 – 835 MHz (A* Low + A)
BLOCK 2: 835 – 845 MHz (B)
B*
849
BLOCK 3: 845 – 846.5 MHz (A* High)
BLOCK 4: 846.5 – 849 MHz (B*)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
A*
High
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 9 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
3.6
PCS - Base Frequency Blocks
1930
1950
1990
BLOCK 4: 1965 – 1970 MHz (E)
BLOCK 5: 1970 – 1975 MHz (F)
BLOCK 6: 1975 – 1990 MHz (C)
PCS - Mobile Frequency Blocks
1850
1870
1890
BLOCK 1: 1850 – 1865 MHz (A)
BLOCK 2: 1865 – 1870 MHz (D)
BLOCK 3: 1870 – 1885 MHz (B)
3.8
1970
BLOCK 1: 1930 – 1945 MHz (A)
BLOCK 2: 1945 – 1950 MHz (D)
BLOCK 3: 1950 – 1965 MHz (B)
3.7
1910
BLOCK 4: 1885 – 1890 MHz (E)
BLOCK 5: 1890 – 1895 MHz (F)
BLOCK 6: 1895 – 1910 MHz (C)
AWS - Base Frequency Blocks
BLOCK 1: 2110 – 2120 MHz (A)
BLOCK 2: 2120 – 2130 MHz (B)
BLOCK 3: 2130 – 2135 MHz (C)
BLOCK 4: 2135 – 2140 MHz (D)
BLOCK 5: 2140 – 2145 MHz (E)
BLOCK 6: 2145 – 2155 MHz (F)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 10 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
3.9
AWS - Mobile Frequency Blocks
BLOCK 1: 1710 – 1720 MHz (A)
BLOCK 2: 1720 – 1730 MHz (B)
BLOCK 3: 1730 – 1735 MHz (C)
3.10
BLOCK 4: 1735 – 1740 MHz (D)
BLOCK 5: 1740 – 1745 MHz (E)
BLOCK 6: 1745 – 1755 MHz (F)
WCS – Mobile/Base Frequency Blocks
The following frequencies are available for WCS in the 2305-2320 MHz and 2345-2360 MHz bands:
BLOCK 1: 2305-2310 and 2350-2355 MHz (A)
BLOCK 2: 2310-2315 and 2355-236 MHz (B)
BLOCK 3: 2315-2320 MHz (C)
BLOCK 4: 2345-2350 MHz (D)
3.11
BRS/EBS Frequency Block
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 11 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
3.12
Radiated Power and Radiated Spurious Emissions
The radiated test facilities consisted of an indoor 3 meter semi-anechoic chamber used for final measurements and
exploratory measurements, when necessary. The measurement area is contained within the semi-anechoic
chamber which is shielded from any ambient interference. The test site inside the chamber is a 6m x 5.2m elliptical,
obstruction-free area in accordance with Figure 5.7 of Clause 5 in ANSI C63.4-2014. Absorbers are arranged on
the floor between the turn table and the antenna mast in such a way so as to maximize the reduction of reflections
for measurements above 1GHz. For measurements below 1GHz, the absorbers are removed. A raised turntable is
used for radiated measurement. The turn table is a continuously rotatable, remote-controlled, metallic turntable and
2 meters (6.56 ft.) in diameter. The turn table is flush with the raised floor of the chamber in order to maintain its
function as a ground plane. An 80cm tall test table made of Styrodur is placed on top of the turn table. A Styrodur
pedestal is placed on top of the test table to bring the total table height to 1.5m.
The equipment under test was transmitting while connected to its integral antenna and is placed on a turntable 3
meters from the receive antenna. The receive antenna height is adjusted between 1 and 4 meter height, the
turntable is rotated through 360 degrees, and the EUT is manipulated through all orthogonal planes representative
of its typical use to achieve the highest reading on the receive spectrum analyzer. Radiated power levels are also
investigated with the receive antenna horizontally and vertically polarized. The maximized power level is recorded
using the spectrum analyzer “Channel Power” function with the integration band set to the emissions’ occupied
bandwidth, a RMS detector, RBW = 100kHz, VBW = 300kHz, and a 1 second sweep time over a minimum of 10
sweeps, per the guidelines of KDB 971168 D01 v03r01.
Per the guidance of ANSI/TIA-603-E-2016, a half-wave dipole is then substituted in place of the EUT. For emissions
above 1GHz, a horn antenna is substituted in place of the EUT. The substitute antenna is driven by a signal
generator with the level of the signal generator being adjusted to obtain the same receive spectrum analyzer level
previously recorded from the spurious emission from the EUT. The power of the emission is calculated using the
following formula:
Pd [dBm] = Pg [dBm] – cable loss [dB] + antenna gain [dBd/dBi]
Where, Pd is the dipole equivalent power, Pg is the generator output into the substitution antenna, and the antenna
gain is the gain of the substitute antenna used relative to either a half-wave dipole (dBd) or an isotropic source
(dBi). The substitute level is equal to Pg [dBm] – cable loss [dB].
The calculated Pd levels are then compared to the absolute spurious emission limit of -13dBm which is equivalent
to the required minimum attenuation of 43 + 10log10(Power [Watts]). For Band 7 and 41, the calculated Pd levels are
compared to the absolute spurious emission limit of -25dBm which is equivalent to the required minimum attenuation
of 55 + 10log10(Power [Watts]). For Band 30 and 48, the calculated Pd levels are compared to the absolute spurious
emission limit of -40dBm which is equivalent to the required minimum attenuation of 70 + 10log10(Power [Watts]).
All radiated measurements are performed in a chamber that meets the site requirements per ANSI C63.4-2014.
Additionally, radiated emissions below 30MHz are also validated on an Open Area Test Site to assert correlation
with the chamber measurements per the requirements of KDB 474788 D01.
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 12 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
4.0
MEASUREMENT UNCERTAINTY
The measurement uncertainties shown below were calculated in accordance with the requirements of
ANSI C63.4-2014. All measurement uncertainty values are shown with a coverage factor of k = 2 to indicate a 95%
level of confidence. The measurement uncertainty shown below meets or exceeds the UCISPR measurement
uncertainty values specified in CISPR 16-4-2 and, thus, can be compared directly to specified limits to determine
compliance.
Contribution
Expanded Uncertainty (±dB)
Conducted Bench Top
Measurements
1.13
Radiated Disturbance (<1GHz)
4.98
Radiated Disturbance (>1GHz)
5.07
Radiated Disturbance (>18GHz)
5.09
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 13 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
5.0
TEST EQUIPMENT CALIBRATION DATA
Test Equipment Calibration is traceable to the National Institute of Standards and Technology (NIST).
Measurements antennas used during testing were calibrated in accordance to the requirements of ANSI C63.52017.
Manufacturer
Model
Description
Cal Date
Cal Interval
‐
Agilent
Agilent
Anritsu
Com‐Power
Com‐Power
Emco
Espec
ETS Lindgren
ETS Lindgren
Huber + Suhner
Keysight Technologies
Mini Circuits
Mini Circuits
Mini‐Circuits
Rohde & Schwarz
Rohde & Schwarz
Rohde & Schwarz
Rohde & Schwarz
Rohde & Schwarz
Rohde & Schwarz
Rohde & Schwarz
Seekonk
Sunol
Sunol
LTx2
N9020A
N9030A
MT8821C
AL‐130
PAM‐103
3115
ESX‐2CA
3117
3164‐08
Sucoflex 102A
N9030A
PWR‐SEN‐4GHS
TVA‐11‐422
SSG‐4000HP
CMW500
ESU26
ESU40
SFUNIT‐Rx
SFUNIT‐Rx
TC‐TA18
TS‐PR26
NC‐100
DRH‐118
JB5
Licensed Transmitter Cable Set
MXA Signal Analyzer
PXA Signal Analyzer (44GHz)
Radio Communication Analyzer
9kHz ‐ 30MHz Loop Antenna
Pre‐Amplifier (1‐1000MHz)
Horn Antenna (1‐18GHz)
Environmental Chamber
1‐18 GHz DRG Horn (Medium)
Quad Ridge Horn Antenna
40GHz Radiated Cable Set
3Hz‐44GHz PXA Signal Analyzer
USB Power Sensor
RF Power Amp
Synthesized Signal Generator
Radio Communication Tester
EMI Test Receiver (26.5GHz)
EMI Test Receiver (40GHz)
Shielded Filter Unit
Shielded Filter Unit
Cross Polarized Vivaldi Test Antenna
18‐26.5 GHz Pre‐Amplifier
Torque Wrench
Horn Antenna (1‐18GHz)
Bi‐Log Antenna (30M ‐ 5GHz)
1/23/2018
1/24/2018
5/25/2018
7/24/2018
10/10/2017
9/17/2018
3/28/2018
3/28/2018
12/1/2016
3/28/2018
1/23/2018
3/20/2018
3/30/2018
Annual
Annual
Annual
Annual
Biennial
Annual
Biennial
Annual
Biennial
Biennial
Annual
Annual
Annual
N/A
N/A
Annual
Annual
Annual
Annual
Annual
Biennial
Annual
Annual
Biennial
Biennial
9/25/2018
5/21/2018
8/9/2018
6/18/2018
6/25/2018
7/16/2018
1/24/2018
12/28/2017
8/11/2017
4/19/2018
Cal Due
Serial Number
1/23/2019
LTx2
1/24/2019 US46470561
5/25/2019 MY52350166
7/24/2019 6201664756
10/10/2019
121034
9/17/2019
441119
3/28/2020
9704‐5182
3/28/2019
17620
12/1/2018
125518
3/28/2020
128337
1/23/2019
251425001
3/20/2019 MY49430494
3/30/2019 11401010036
QA1317001
11208010032
9/25/2019
102060
5/21/2019
100342
8/9/2019
100348
6/18/2019
102134
6/25/2019
102133
7/16/2020
101073
1/24/2019
100040
12/28/2018
N/A
8/11/2019
A050307
4/19/2020
A051107
Table 5-1. Test Equipment
Notes:
1. For equipment listed above that has a calibration date or calibration due date that falls within the test date
range, care was taken to ensure that this equipment was used after the calibration date and before the
calibration due date.
2. Equipment with a calibration date of “N/A” shown in this list was not used to make direct calibrated
measurements.
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 14 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
6.0
SAMPLE CALCULATIONS
Emission Designator
QPSK Modulation
Emission Designator = 8M62G7D
LTE BW = 8.62 MHz
G = Phase Modulation
7 = Quantized/Digital Info
D = Data transmission, telemetry, telecommand
QAM Modulation
Emission Designator = 8M45W7D
LTE BW = 8.45 MHz
W = Amplitude/Angle Modulated
7 = Quantized/Digital Info
D = Data transmission, telemetry, telecommand
Spurious Radiated Emission – LTE Band
Example: Middle Channel LTE Mode 2nd Harmonic (1564 MHz)
The average spectrum analyzer reading at 3 meters with the EUT on the turntable was –81.0 dBm. The gain of the
substituted antenna is 8.1 dBi. The signal generator connected to the substituted antenna terminals is adjusted to
produce a reading of –81.0 dBm on the spectrum analzyer. The loss of the cable between the signal generator and
the terminals of the substituted antenna is 2.0 dB at 1564 MHz. So 6.1 dB is added to the signal generator reading
of –30.9 dBm yielding –24.80 dBm. The fundamental EIRP was 25.501 dBm so this harmonic was 25.501 dBm –
(-24.80).
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 15 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
7.0
7.1
TEST RESULTS
Summary
Company Name:
Samsung Electronics Co., Ltd.
FCC ID:
A3LSMG975U
FCC Classification:
PCS Licensed Transmitter Held to Ear (PCE)
Mode(s):
LTE
FCC Part
Section(s)
Test Description
Test Limit
Test
Condition
Test
Result
Reference
2.1049
Occupied Bandwidth
N/A
Section 7.2
2.1051
2.917(a)
24.238(a)
27.53(c)
27.53(g)
27.53(h)
Out of Band Emissions
> 43 + 10log10 (P[Watts]) at
Band Edge and for all out-ofband emissions
Section 7.3,
7.4
27.53(m)
Out of Band Emissions
Undesirable emissions must
meet the limits detailed in
27.53(m)
Section 7.3,
7.4
27.53(a)
Out of Band Emissions
Undesirable emissions must
meet the limits detailed in
27.53(a)
Section 7.3,
7.4
24.232(d)
27.50(d)(5)
Peak-Average Ratio
< 13 dB
2.1046
Transmitter Conducted
Output Power
N/A
See RF
Exposure
Report
2.1046
Additional Maximum
Power Reduction
(A-MPR)
N/A
Section 7.6
27.53(m)
Uplink Carrier
Aggregation
Undesirable emissions must
meet the limits detailed in
27.53(m)
Section 7.7
2.1055
22.355
24.235
27.54
Frequency Stability
< 2.5 ppm (Part 22) and
fundamental emissions stay
within authorized frequency
block (Part 24, 27)
Section 7.11
Section 7.5
CONDUCTED
PASS
Table 7-1. Summary of Conducted Test Results
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 16 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
FCC Part
Section(s)
Test Description
22.913(a)(5)
Effective Radiated Power
/ Equivalent Isotropic
Radiated Power (Band
26/5)
< 7 Watts max. ERP
Section 7.6
27.50(b)(10)
27.50(c)(10)
Effective Radiated Power
/ Equivalent Isotropic
Radiated Power (Band
71, 12, 13)
< 3 Watts max. ERP
Section 7.6
24.232(c)
27.50(h)(2)
Equivalent Isotropic
Radiated Power
(Band 25/2, 7, 41/38)
< 2 Watts max. EIRP
Section 7.6
< 1 Watts max. EIRP
Section 7.6
< 0.25 Watts max. EIRP
Section 7.6
27.50(d)(4)
27.50(a)(3)
2.1053
22.917(a)
24.238(a)
27.53(c)
27.53(g)
27.53(h)
Equivalent Isotropic
Radiated Power
(Band 66/4)
Equivalent Isotropic
Radiated Power
(Band 30)
Test Limit
Test
Condition
RADIATED
Test
Result
Reference
PASS
Undesirable Emissions
(Band 12, 26/5, 66/4,
25/2)
> 43 + 10log10 (P[Watts]) for all
out-of-band emissions
Section 7.9
27.53(f)
Undesirable Emissions
(Band 13)
< -70 dBW/MHz (for
wideband signals)
< -80 dBW (for discrete
emissions less than 700Hz
BW) For all emissions in the
band 1559 – 1610 MHz
Section 7.9
27.53(a)
Undesirable Emissions
(Band 30)
> 70 + 10log10 (P[Watts])
Section 7.9
27.53(m)
Undesirable Emissions
(Band7, 41/38)
Undesirable emissions must
meet the limits detailed in
27.53(m)
Section 7.9
27.53(m)
Uplink Carrier
Aggregation
Undesirable emissions must
meet the limits detailed in
27.53(m)
Section 7.10
Table 7-2. Summary of Radiated Test Results
Notes:
1) All modes of operation and data rates were investigated. The test results shown in the following sections
represent the worst case emissions.
2) The analyzer plots (Sections 7.2, 7.3, 7.4, 7.5) were all taken with a correction table loaded into the analyzer.
The correction table was used to account for the losses of the cables, directional couplers, and attenuators
used as part of the system to maintain a link between the call box and the EUT at all frequencies of interest.
3) All antenna port conducted emissions testing was performed on a test bench with the antenna port of the EUT
connected to the spectrum analyzer through calibrated cables, attenuators, and couplers.
4) For conducted spurious emissions, automated test software was used to measure emissions and capture the
corresponding plots necessary to show compliance. The measurement software utilized is PCTEST “LTE
Automation,” Version 4.8.
5) For operation <1GHz, the EIRP limits in the table above are referenced to the specifications written in the
relevant Radio Standards Specifications for Innovation, Science, and Economic Development Canada.
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 17 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
7.2
Occupied Bandwidth
Test Overview
The occupied bandwidth, that is the frequency bandwidth such that, below its lower and above its upper frequency
limits, the mean powers radiated are each equal to 0.5 percent of the total mean power radiated by a given emission
shall be measured. All modes of operation were investigated and the worst case configuration results are reported
in this section.
Test Procedure Used
KDB 971168 D01 v03r01 – Section 4.2
Test Settings
1. The signal analyzer’s automatic bandwidth measurement capability was used to perform the 99% occupied
bandwidth and the 26dB bandwidth. The bandwidth measurement was not influenced by any intermediate
power nulls in the fundamental emission.
2. RBW = 1 – 5% of the expected OBW
3. VBW ≥ 3 x RBW
4. Detector = Peak
5. Trace mode = max hold
6. Sweep = auto couple
7. The trace was allowed to stabilize
8. If necessary, steps 2 – 7 were repeated after changing the RBW such that it would be within
1 – 5% of the 99% occupied bandwidth observed in Step 7
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-1. Test Instrument & Measurement Setup
Test Notes
None.
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 18 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Band 71
Plot 7-1. Occupied Bandwidth Plot (Band 71 - 5.0MHz QPSK - Full RB Configuration)
Plot 7-2. Occupied Bandwidth Plot (Band 71 - 5.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 19 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-3. Occupied Bandwidth Plot (Band 71 - 5.0MHz 64-QAM - Full RB Configuration)
Plot 7-4. Occupied Bandwidth Plot (Band 71 - 5.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 20 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-5. Occupied Bandwidth Plot (Band 71 - 10.0MHz QPSK - Full RB Configuration)
Plot 7-6. Occupied Bandwidth Plot (Band 71 - 10.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 21 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-7. Occupied Bandwidth Plot (Band 71 - 10.0MHz 64-QAM - Full RB Configuration)
Plot 7-8. Occupied Bandwidth Plot (Band 71 - 10.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 22 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-9. Occupied Bandwidth Plot (Band 71 - 15.0MHz QPSK - Full RB Configuration)
Plot 7-10. Occupied Bandwidth Plot (Band 71 - 15.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 23 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-11. Occupied Bandwidth Plot (Band 71 - 15.0MHz 64-QAM - Full RB Configuration)
Plot 7-12. Occupied Bandwidth Plot (Band 71 - 15.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 24 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-13. Occupied Bandwidth Plot (Band 71 - 20.0MHz QPSK - Full RB Configuration)
Plot 7-14. Occupied Bandwidth Plot (Band 71 - 20.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 25 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-15. Occupied Bandwidth Plot (Band 71 - 20.0MHz 64-QAM - Full RB Configuration)
Plot 7-16. Occupied Bandwidth Plot (Band 71 - 20.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 26 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Band 12
Plot 7-17. Occupied Bandwidth Plot (Band 12 - 1.4MHz QPSK - Full RB Configuration)
Plot 7-18. Occupied Bandwidth Plot (Band 12 - 1.4MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 27 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-19. Occupied Bandwidth Plot (Band 12 - 1.4MHz 64-QAM - Full RB Configuration)
Plot 7-20. Occupied Bandwidth Plot (Band 12 - 1.4MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 28 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-21. Occupied Bandwidth Plot (Band 12 - 3.0MHz QPSK - Full RB Configuration)
Plot 7-22. Occupied Bandwidth Plot (Band 12 - 3.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 29 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-23. Occupied Bandwidth Plot (Band 12 - 3.0MHz 64-QAM - Full RB Configuration)
Plot 7-24. Occupied Bandwidth Plot (Band 12 - 3.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 30 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-25. Occupied Bandwidth Plot (Band 12 - 5.0MHz QPSK - Full RB Configuration)
Plot 7-26. Occupied Bandwidth Plot (Band 12 - 5.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 31 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-27. Occupied Bandwidth Plot (Band 12 - 5.0MHz 64-QAM - Full RB Configuration)
Plot 7-28. Occupied Bandwidth Plot (Band 12 - 5.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 32 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-29. Occupied Bandwidth Plot (Band 12 - 10.0MHz QPSK - Full RB Configuration)
Plot 7-30. Occupied Bandwidth Plot (Band 12 - 10.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 33 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-31. Occupied Bandwidth Plot (Band 12 - 10.0MHz 64-QAM - Full RB Configuration)
Plot 7-32. Occupied Bandwidth Plot (Band 12 - 10.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 34 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Band 13
Plot 7-33. Occupied Bandwidth Plot (Band 13 - 5.0MHz QPSK - Full RB Configuration)
Plot 7-34. Occupied Bandwidth Plot (Band 13 - 5.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 35 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-35. Occupied Bandwidth Plot (Band 13 - 5.0MHz 64-QAM - Full RB Configuration)
Plot 7-36. Occupied Bandwidth Plot (Band 13 - 5.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 36 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-37. Occupied Bandwidth Plot (Band 13 - 10.0MHz QPSK - Full RB Configuration)
Plot 7-38. Occupied Bandwidth Plot (Band 13 - 10.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 37 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-39. Occupied Bandwidth Plot (Band 13 - 10.0MHz 64-QAM - Full RB Configuration)
Plot 7-40. Occupied Bandwidth Plot (Band 13 - 10.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 38 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Band 26/5
Plot 7-41. Occupied Bandwidth Plot (Band 26/5 - 1.4MHz QPSK - Full RB Configuration)
Plot 7-42. Occupied Bandwidth Plot (Band 26/5 - 1.4MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 39 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-43. Occupied Bandwidth Plot (Band 26/5 - 1.4MHz 64-QAM - Full RB Configuration)
Plot 7-44. Occupied Bandwidth Plot (Band 26/5 - 1.4MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 40 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-45. Occupied Bandwidth Plot (Band 26/5 - 3.0MHz QPSK - Full RB Configuration)
Plot 7-46. Occupied Bandwidth Plot (Band 26/5 - 3.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 41 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Download: SMG975U Multi-band GSM/EDGE/CDMA/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report LTE  1 Samsung Electronics Co Ltd
Mirror Download [FCC.gov]SMG975U Multi-band GSM/EDGE/CDMA/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report LTE  1 Samsung Electronics Co Ltd
Document ID4161701
Application IDQ773NTe86PRJAWYrvzhIrQ==
Document DescriptionLTE Test Report 1
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeYes
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize503.23kB (6290316 bits)
Date Submitted2019-01-28 00:00:00
Date Available2019-02-01 00:00:00
Creation Date2019-02-07 12:16:12
Producing SoftwareAcrobat Distiller 15.0 (Windows)
Document Lastmod2019-02-07 12:23:47
Document TitleLTE Test Report 1
Document CreatorPScript5.dll Version 5.2.2

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Create Date                     : 2019:02:07 12:16:12-05:00
Creator                         : PScript5.dll Version 5.2.2
Modify Date                     : 2019:02:07 12:23:47-05:00
Has XFA                         : No
XMP Toolkit                     : Adobe XMP Core 5.6-c015 84.159810, 2016/09/10-02:41:30
Metadata Date                   : 2019:02:07 12:23:47-05:00
Creator Tool                    : PScript5.dll Version 5.2.2
Format                          : application/pdf
Document ID                     : uuid:1508dd54-cf20-4f8f-8c76-701dd109f97d
Instance ID                     : uuid:4d878b2d-db0d-438f-8ca7-8cd0ddc3d953
Producer                        : Acrobat Distiller 15.0 (Windows)
Page Count                      : 41
