SISO Antenna-2 Conducted Emissions at the Band Edge

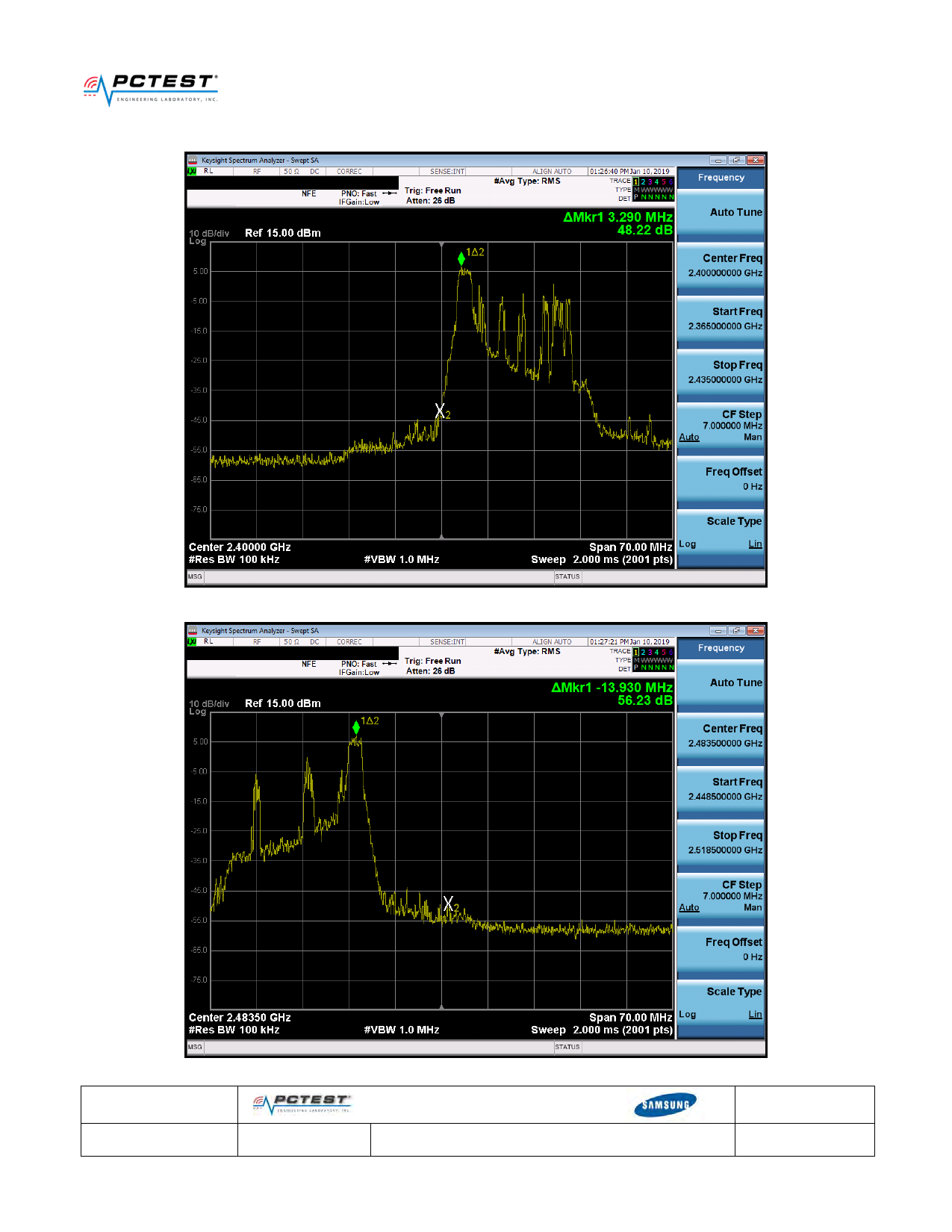

Plot 7-81. Band Edge Plot SISO ANT2 (802.11ax OFDMA – 26 Tones – Ch. 1)
Plot 7-82. Band Edge Plot SISO ANT2 (802.11ax OFDMA – 26 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 69 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-83. Band Edge Plot SISO ANT2 (802.11ax OFDMA – 52 Tones – Ch. 1)
Plot 7-84. Band Edge Plot SISO ANT2 (802.11ax OFDMA – 52 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 70 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-85. Band Edge Plot SISO ANT2 (802.11ax OFDMA – 106 Tones – Ch. 1)
Plot 7-86. Band Edge Plot SISO ANT2 (802.11ax OFDMA – 106 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 71 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-87. Band Edge Plot SISO ANT2 (802.11ax OFDMA – 242 Tones – Ch. 1)
Plot 7-88. Band Edge Plot SISO ANT2 (802.11ax OFDMA – 242 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 72 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
7.6
Conducted Spurious Emissions
§15.247(d); RSS-247 [5.5]
Test Overview and Limit
All out of band emissions are measured with a spectrum analyzer connected to the antenna terminal of the EUT
while the EUT is operating at its maximum duty cycle, at maximum power, and at the appropriate frequencies. All
data rates were investigated to determine the worst case configuration. For the following out of band conducted
emissions plots, the EUT was set to a data rate of MCS0 in 802.11ax mode as this setting produced the worstcase emissions.
The limit for out-of-band spurious emissions at the band edge is 20dB below the fundamental emission
level, as determined from the in-band power measurement of the DTS channel performed in a 100kHz
bandwidth per the procedure in Section 11.1 of ANSI C63.10-2013 and KDB 558074 D01 v05.
Test Procedure Used
ANSI C63.10-2013 – Section 11.11.3
KDB 558074 D01 v05 – Section 8.5
ANSI C63.10-2013 – Section 14.3.3
KDB 662911 D01 v02r01 – Section E)3)b)
Test Settings
1. Start frequency was set to 30MHz and stop frequency was set to 25GHz (separated into two plots per
channel)
2. RBW = 1MHz
3. VBW = 3MHz
4. Detector = Peak
5. Trace mode = max hold
6. Sweep time = auto couple
7. The trace was allowed to stabilize
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-5. Test Instrument & Measurement Setup
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 73 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Test Notes
1. RBW was set to 1MHz rather than 100kHz in order to increase the measurement speed.
2. The display line shown in the following plots denotes the limit at 20dB below the fundamental emission
level measured in a 100kHz bandwidth. However, since the traces in the following plots are measured
with a 1MHz RBW, the display line may not necessarily appear to be 20dB below the level of the
fundamental in a 1MHz bandwidth.
3. For plots showing conducted spurious emissions near the limit, the frequencies were investigated with a
reduced RBW to ensure that no emissions were present.
4. The conducted spurious emissions were measured to relative limits. Therefore, in accordance with ANSI
C63.10-2013 and KDB 662911 D01 v02r01 Section E)3)b), it was unnecessary to show compliance
through the summation of test results of the individual outputs.
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 74 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
SISO Antenna-1 Conducted Spurious Emission
Plot 7-89. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA – 26 Tones – Ch. 1)
Plot 7-90. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 26 Tones – Ch. 1)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 75 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-91. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 26 Tones – Ch. 6)
Plot 7-92. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 26 Tones – Ch. 6)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 76 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-93. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 26 Tones – Ch. 11)
Plot 7-94. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 26 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 77 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-95. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA – 52Tones – Ch. 1)
Plot 7-96. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 52 Tones – Ch. 1)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 78 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-97. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 52 Tones – Ch. 6)
Plot 7-98. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 52 Tones – Ch. 6)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 79 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-99. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 52 Tones – Ch. 11)
Plot 7-100. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 52 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 80 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-101. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA – 106 Tones – Ch. 1)
Plot 7-102. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 106 Tones – Ch. 1)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 81 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-103. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 106 Tones – Ch. 6)
Plot 7-104. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 106 Tones – Ch. 6)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 82 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-105. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 106 Tones – Ch. 11)
Plot 7-106. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 106 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 83 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-107. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA – 242 Tones – Ch. 1)
Plot 7-108. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 242 Tones – Ch. 1)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 84 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-109. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 242 Tones – Ch. 6)
Plot 7-110. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 242 Tones – Ch. 6)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 85 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-111. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 242 Tones – Ch. 11)
Plot 7-112. Conducted Spurious Plot SISO ANT1 (802.11ax OFDMA– 242 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 86 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
SISO Antenna-2 Conducted Spurious Emissions
Plot 7-113. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA – 26 Tones – Ch. 1)
Plot 7-114. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 26 Tones – Ch. 1)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 87 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-115. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 26 Tones – Ch. 6)
Plot 7-116. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 26 Tones – Ch. 6)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 88 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-117. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 26 Tones – Ch. 11)
Plot 7-118. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 26 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 89 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-119. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA – 52Tones – Ch. 1)
Plot 7-120. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 52 Tones – Ch. 1)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 90 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-121. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 52 Tones – Ch. 6)
Plot 7-122. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 52 Tones – Ch. 6)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 91 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-123. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 52 Tones – Ch. 11)
Plot 7-124. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 52 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 92 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-125. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA – 106 Tones – Ch. 1)
Plot 7-126. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 106 Tones – Ch. 1)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 93 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-127. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 106 Tones – Ch. 6)
Plot 7-128. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 106 Tones – Ch. 6)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 94 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-129. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 106 Tones – Ch. 11)
Plot 7-130. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 106 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 95 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-131. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA – 242 Tones – Ch. 1)
Plot 7-132. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 242 Tones – Ch. 1)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 96 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-133. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 242 Tones – Ch. 6)
Plot 7-134. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 242 Tones – Ch. 6)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 97 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-135. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 242 Tones – Ch. 11)
Plot 7-136. Conducted Spurious Plot SISO ANT2 (802.11ax OFDMA– 242 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 98 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
7.7
Radiated Spurious Emission Measurements – Above 1 GHz
§15.247(d) §15.205 & §15.209; RSS-Gen [8.9]
Test Overview and Limit
All out of band radiated spurious emissions are measured with a spectrum analyzer connected to a receive
antenna while the EUT is operating at its maximum duty cycle, at maximum power, and at the appropriate
frequencies. All data rates and modes were investigated for radiated spurious emissions. Only the radiated
emissions of the configuration that produced the worst case emissions are reported in this section.
All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR
and Table 6 of RSS-Gen (8.10) must not exceed the limits shown in Table 7-19 per Section 15.209 and
RSS-Gen (8.9).
Frequency
Field Strength
[µV/m]
Measured Distance
[Meters]
500
Above 960.0 MHz
Table 7-19. Radiated Limits
Test Procedures Used
ANSI C63.10-2013 – Section 6.6.4.3
KDB 558074 D01 v05 – Sections 8.6, 8.7
Test Settings
Average Field Strength Measurements
1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest
2. RBW = 1MHz
3. VBW = 3MHz
4. Detector = power average (RMS)
5. Number of measurement points = 1001 (Number of points must be > 2 x span/RBW)
6. Sweep time = auto
7. Trace (RMS) averaging was performed over at least 100 traces
Peak Field Strength Measurements
1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest
2. RBW = 1MHz
3. VBW = 3MHz
4. Detector = peak
5. Sweep time = auto couple
6. Trace mode = max hold
7. Trace was allowed to stabilize
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 99 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-6. Test Instrument & Measurement Setup
Test Notes
1. The optional test procedures for antenna port conducted measurements of unwanted emissions per the
guidance of KDB 558074 D01 v05 were not used to evaluate this device for compliance to radiated limits.
All radiated spurious emissions levels were measured in a radiated test setup.
2. All emissions lying in restricted bands specified in Section 15.205 and Section 8.10 of RSS-Gen are
below the limit shown in Table 7-19.
3. The antenna is manipulated through typical positions, polarity and length during the tests. The EUT is
manipulated through three orthogonal planes.
4. This unit was tested with its standard battery.
5. The spectrum is measured from 9kHz to the 10th harmonic of the fundamental frequency of the
transmitter using CISPR quasi peak detector below 1GHz. Above 1 GHz, average and peak
measurements were taken using linearly polarized horn antennas. The worst-case emissions are reported
however emissions whose levels were not within 20dB of the respective limits were not reported.
6. Emissions below 18GHz were measured at a 3 meter test distance while emissions above 18GHz were
measured at a 1 meter test distance with the application of a distance correction factor.
7. The wide spectrum spurious emissions plots shown on the following pages are used only for the purpose
of emission identification. Any emissions found to be within 20dB of the limit are fully investigated and the
results are shown in this section.
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 100 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
8. The "-" shown in the following RSE tables are used to denote a noise floor measurement.
9. Some band edge measurements were performed using a channel integration method to determine
compliance with the out of band average radiated spurious emissions limit in the 2483.5 – 2500MHz
band. Per KDB 558074 D01 v05 Section 13.3, a measurement was performed using a RBW of 100kHz at
the frequency with highest emission outside of band edge. For integration that does not start at
2483.5MHz, consideration was taken to ensure the worst case emission is in the 1MHz spectrum. The
results were integrated up to the 1MHz reference bandwidth to show compliance with the 15.209 radiated
limit for emissions greater than 1GHz.
10. For radiated measurements, emissions were investigated for the fully-loaded RU configuration and for all
of the partially-loaded RU configurations. Among all of the available partially-loaded RU configurations,
only the configuration with the worst case emissions is reported.
Sample Calculations
Determining Spurious Emissions Levels
Field Strength Level [dBµV/m] = Analyzer Level [dBm] + 107 + AFCL [dB/m]
AFCL [dB/m] = Antenna Factor [dB/m] + Cable Loss [dB]
Margin [dB] = Field Strength Level [dBµV/m] – Limit [dBµV/m]
Radiated Band Edge Measurement Offset
The amplitude offset shown in the radiated restricted band edge plots in Section 7.7 was calculated
using the formula:
Offset (dB) = (Antenna Factor + Cable Loss + Attenuator) – Preamplifier Gain
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 101 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
7.7.1 SISO Antenna-1 Radiated Spurious Emission Measurements
§15.247(d) §15.205 & §15.209; RSS-Gen [8.9]
Plot 7-137. Radiated Spurious Plot above 1GHz SISO ANT1 (802.11ax OFDMA – 52 Tones – Ch. 1)
Plot 7-138. Radiated Spurious Plot above 1GHz SISO ANT1 (802.11ax OFDMA – 52 Tones – Ch. 6)
Plot 7-139. Radiated Spurious Plot above 1GHz SISO ANT1 (802.11ax OFDMA – 52 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 102 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-140. Radiated Spurious Plot above 1GHz SISO ANT1 (802.11ax OFDMA – 242 Tones – Ch. 1)
Plot 7-141. Radiated Spurious Plot above 1GHz SISO ANT1 (802.11ax OFDMA – 242 Tones – Ch. 6)
Plot 7-142. Radiated Spurious Plot above 1GHz SISO ANT1 (802.11ax OFDMA – 242 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 103 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
SISO Antenna-1 Radiated Spurious Emissions Measurements (Above 18GHz)
§15.209; RSS-Gen [8.9]
Plot 7-143. Radiated Spurious Plot above 18GHz SISO ANT1 (802.11ax OFDMA – 52 Tones)
Plot 7-144. Radiated Spurious Plot above 18GHz SISO ANT1 (802.11ax OFDMA – 242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 104 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
SISO Antenna-1 Radiated Spurious Emission Measurements
§15.247(d) §15.205 & §15.209; RSS-Gen [8.9]
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
Frequency
Detector
[MHz]
Ant.
Pol.
[H/V]
802.11ax OFDMA
MCS0
40
3 Meters
2412MHz
01
Antenna Turntable Analyzer
Height
Azimuth
Level
[cm]
[degree]
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4824.00
Avg
-81.42
8.84
34.42
53.98
-19.56
4824.00
Peak
-70.72
8.84
45.12
73.98
-28.86
12060.00
Avg
-84.47
21.88
44.41
53.98
-9.57
12060.00
Peak
-72.95
21.88
55.93
73.98
-18.05
Table 7-20. Radiated Measurements SISO ANT1 (52 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
40
3 Meters
2437MHz
06
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna Turntable Analyzer
Height
Azimuth
Level
[cm]
[degree]
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4874.00
Avg
-82.16
8.39
33.23
53.98
-20.75
4874.00
Peak
-70.72
8.39
44.67
73.98
-29.31
7311.00
Avg
212
318
-81.35
14.07
39.72
53.98
-14.26
7311.00
Peak
212
318
-66.85
14.07
54.22
73.98
-19.76
12185.00
Avg
-84.40
21.73
44.33
53.98
-9.65
12185.00
Peak
-73.40
21.73
55.33
73.98
-18.65
Table 7-21. Radiated Measurements SISO ANT1 (52 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 105 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
40
3 Meters
2462MHz
11
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna Turntable Analyzer
Height
Azimuth
Level
[cm]
[degree]
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4924.00
Avg
-82.40
8.79
33.39
53.98
-20.59
4924.00
Peak
-70.85
8.79
44.94
73.98
-29.04
7386.00
Avg
321
75
-83.44
13.59
37.15
53.98
-16.83
7386.00
Peak
321
75
-71.68
13.59
48.91
73.98
-25.07
12310.00
Avg
-85.01
21.90
43.89
53.98
-10.09
12310.00
Peak
-72.61
21.90
56.29
73.98
-17.69
Table 7-22. Radiated Measurements SISO ANT1 (52 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
40
3 Meters
2437MHz
06
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4874.00
Avg
-81.59
8.39
33.80
53.98
-20.18
4874.00
Peak
-70.40
8.39
44.99
73.98
-28.99
7311.00
Avg
166
-83.76
14.07
37.31
53.98
-16.67
7311.00
Peak
166
-71.86
14.07
49.21
73.98
-24.77
12185.00
Avg
-84.58
21.73
44.15
53.98
-9.83
12185.00
Peak
-72.77
21.73
55.96
73.98
-18.02
Table 7-23. Radiated Measurements SISO ANT1 with WCP (52 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 106 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2412MHz
01
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4824.00
Avg
-81.25
8.84
34.59
53.98
-19.39
4824.00
Peak
-69.81
8.84
46.03
73.98
-27.95
12060.00
Avg
-83.55
21.88
45.33
53.98
-8.65
12060.00
Peak
-72.18
21.88
56.70
73.98
-17.28
Table 7-24. Radiated Measurements SISO ANT1 (242 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2437MHz
06
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4874.00
Avg
-81.14
8.39
34.25
53.98
-19.73
4874.00
Peak
-69.67
8.39
45.72
73.98
-28.26
7311.00
Avg
-82.55
14.07
38.52
53.98
-15.46
7311.00
Peak
-71.25
14.07
49.82
73.98
-24.16
12185.00
Avg
-83.79
21.73
44.94
53.98
-9.04
12185.00
Peak
-72.52
21.73
56.21
73.98
-17.77
Table 7-25. Radiated Measurements SISO ANT1 (242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 107 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2462MHz
11
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4924.00
Avg
-80.84
8.79
34.95
53.98
-19.03
4924.00
Peak
-69.54
8.79
46.25
73.98
-27.73
7386.00
Avg
-82.69
13.59
37.90
53.98
-16.08
7386.00
Peak
-71.42
13.59
49.17
73.98
-24.81
12310.00
Avg
-84.03
21.90
44.87
53.98
-9.11
12310.00
Peak
-72.88
21.90
56.02
73.98
-17.96
Table 7-26. Radiated Measurements SISO ANT1 (242 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2412MHz
01
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4824.00
Avg
-81.57
8.84
34.27
53.98
-19.71
4824.00
Peak
-70.28
8.84
45.56
73.98
-28.42
12060.00
Avg
-83.64
21.88
45.24
53.98
-8.74
12060.00
Peak
-72.39
21.88
56.49
73.98
-17.49
Table 7-27. Radiated Measurements SISO ANT1 with WCP (242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 108 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
7.7.2 SISO Antenna-2 Radiated Spurious Emission Measurements
§15.247(d) §15.205 & §15.209; RSS-Gen [8.9]
Plot 7-145. Radiated Spurious Plot above 1GHz SISO ANT2 (802.11ax OFDMA – 26 Tones – Ch. 1)
Plot 7-146. Radiated Spurious Plot above 1GHz SISO ANT2 (802.11ax OFDMA – 26 Tones – Ch. 6)
Plot 7-147. Radiated Spurious Plot above 1GHz SISO ANT2 (802.11ax OFDMA – 26 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 109 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-148. Radiated Spurious Plot above 1GHz SISO ANT2 (802.11ax OFDMA – 242 Tones – Ch. 1)
Plot 7-149. Radiated Spurious Plot above 1GHz SISO ANT2 (802.11ax OFDMA – 242 Tones – Ch. 6)
Plot 7-150. Radiated Spurious Plot above 1GHz SISO ANT2 (802.11ax OFDMA – 242 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 110 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
SISO Antenna-2 Radiated Spurious Emissions Measurements (Above 18GHz)
§15.209; RSS-Gen [8.9]
Plot 7-151. Radiated Spurious Plot above 18GHz SISO ANT2 (802.11ax OFDMA – 106 Tones)
Plot 7-152. Radiated Spurious Plot above 18GHz SISO ANT2 (802.11ax OFDMA – 242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 111 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
SISO Antenna-2 Radiated Spurious Emission Measurements
§15.247(d) §15.205 & §15.209; RSS-Gen [8.9]
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
3 Meters
2412MHz
01
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level [dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4824.00
Avg
-81.67
8.84
34.17
53.98
-19.81
4824.00
Peak
-71.64
8.84
44.20
73.98
-29.78
12060.00
Avg
-83.87
21.88
45.01
53.98
-8.97
12060.00
Peak
-71.08
21.88
57.80
73.98
-16.18
Table 7-28. Radiated Measurements SISO ANT2 (26 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
3 Meters
2437MHz
06
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level [dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4874.00
Avg
-81.56
8.39
33.83
53.98
-20.15
4874.00
Peak
-71.41
8.39
43.98
73.98
-30.00
7311.00
Avg
108
186
-80.08
14.07
40.99
53.98
-12.99
7311.00
Peak
108
186
-66.33
14.07
54.74
73.98
-19.24
12185.00
Avg
-84.50
21.73
44.23
53.98
-9.75
12185.00
Peak
-72.02
21.73
56.71
73.98
-17.27
Table 7-29. Radiated Measurements SISO ANT2 (26 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 112 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
3 Meters
2462MHz
11
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level [dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4924.00
Avg
-82.07
8.79
33.72
53.98
-20.26
4924.00
Peak
-72.37
8.79
43.42
73.98
-30.56
7386.00
Avg
115
179
-82.63
13.59
37.96
53.98
-16.02
7386.00
Peak
115
179
-70.75
13.59
49.84
73.98
-24.14
12310.00
Avg
-83.61
21.90
45.29
53.98
-8.69
12310.00
Peak
-71.86
21.90
57.04
73.98
-16.94
Table 7-30. Radiated Measurements SISO ANT2 (26 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
3 Meters
2437MHz
06
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level [dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4874.00
Avg
-82.01
8.39
33.38
53.98
-20.60
4874.00
Peak
-71.13
8.39
44.26
73.98
-29.72
7311.00
Avg
-81.56
14.07
39.51
53.98
-14.47
7311.00
Peak
-69.66
14.07
51.41
73.98
-22.57
12185.00
Avg
-84.45
21.73
44.28
53.98
-9.70
12185.00
Peak
-73.09
21.73
55.64
73.98
-18.34
Table 7-31. Radiated Measurements SISO ANT2 (26 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 113 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2412MHz
01
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level [dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4824.00
Avg
-81.47
8.84
34.37
53.98
-19.61
4824.00
Peak
-70.44
8.84
45.40
73.98
-28.58
12060.00
Avg
-83.63
21.88
45.25
53.98
-8.73
12060.00
Peak
-72.43
21.88
56.45
73.98
-17.53
Table 7-32. Radiated Measurements SISO ANT2 (242 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2437MHz
06
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level [dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4874.00
Avg
-80.96
8.39
34.43
53.98
-19.55
4874.00
Peak
-70.37
8.39
45.02
73.98
-28.96
7311.00
Avg
111
183
-80.53
14.07
40.54
53.98
-13.44
7311.00
Peak
111
183
-68.86
14.07
52.21
73.98
-21.77
12185.00
Avg
-83.81
21.73
44.92
53.98
-9.06
12185.00
Peak
-73.55
21.73
55.18
73.98
-18.80
Table 7-33. Radiated Measurements SISO ANT2 (242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 114 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2462MHz
11
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level [dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4924.00
Avg
-81.03
8.79
34.76
53.98
-19.22
4924.00
Peak
-70.21
8.79
45.58
73.98
-28.40
7386.00
Avg
-82.84
13.59
37.75
53.98
-16.23
7386.00
Peak
-71.98
13.59
48.61
73.98
-25.37
12310.00
Avg
-84.30
21.90
44.60
53.98
-9.38
12310.00
Peak
-73.80
21.90
55.10
73.98
-18.88
Table 7-34. Radiated Measurements SISO ANT2 (242 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2437MHz
06
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level [dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4874.00
Avg
-81.22
8.39
34.17
53.98
-19.81
4874.00
Peak
-70.68
8.39
44.71
73.98
-29.27
7311.00
Avg
-79.37
14.07
41.70
53.98
-12.28
7311.00
Peak
-69.28
14.07
51.79
73.98
-22.19
12185.00
Avg
-84.05
21.73
44.68
53.98
-9.30
12185.00
Peak
-73.54
21.73
55.19
73.98
-18.79
Table 7-35. Radiated Measurements SISO ANT2 with WCP (242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 115 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
7.7.3 MIMO Radiated Spurious Emission Measurements
§15.247(d) §15.205 & §15.209; RSS-Gen [8.9]
Plot 7-153. Radiated Spurious Plot above 1GHz MIMO (802.11ax OFDMA – 26 Tones – Ch. 1)
Plot 7-154. Radiated Spurious Plot above 1GHz MIMO (802.11ax OFDMA – 26 Tones – Ch. 6)
Plot 7-155. Radiated Spurious Plot above 1GHz MIMO (802.11ax OFDMA – 26 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 116 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-156. Radiated Spurious Plot above 1GHz MIMO (802.11ax OFDMA – 242 Tones – Ch. 1)
Plot 7-157. Radiated Spurious Plot above 1GHz MIMO (802.11ax OFDMA – 242 Tones – Ch. 6)
Plot 7-158. Radiated Spurious Plot above 1GHz MIMO (802.11ax OFDMA – 242 Tones – Ch. 11)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 117 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
MIMO Radiated Spurious Emissions Measurements (Above 18GHz)
§15.209; RSS-Gen [8.9]
Plot 7-159. Radiated Spurious Plot above 18GHz MIMO (802.11ax OFDMA – 106 Tones)
Plot 7-160. Radiated Spurious Plot above 18GHz MIMO (802.11ax OFDMA – 242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 118 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
MIMO Radiated Spurious Emission Measurements
§15.247(d) §15.205 & §15.209; RSS-Gen [8.9]
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
3 Meters
2412MHz
01
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4824.00
Avg
-80.69
8.84
35.15
53.98
-18.83
4824.00
Peak
-71.38
8.84
44.46
73.98
-29.52
12060.00
Avg
-84.08
21.88
44.80
53.98
-9.18
12060.00
Peak
-72.69
21.88
56.19
73.98
-17.79
Table 7-36. Radiated Measurements MIMO (26 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
3 Meters
2437MHz
06
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4874.00
Avg
-80.57
8.39
34.82
53.98
-19.16
4874.00
Peak
-70.03
8.39
45.36
73.98
-28.62
7311.00
Avg
115
184
-81.43
14.07
39.64
53.98
-14.34
7311.00
Peak
115
184
-67.45
14.07
53.62
73.98
-20.36
12185.00
Avg
-83.67
21.73
45.06
53.98
-8.92
12185.00
Peak
-71.97
21.73
56.76
73.98
-17.22
Table 7-37. Radiated Measurements MIMO (26 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 119 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
3 Meters
2462MHz
11
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4924.00
Avg
-80.77
8.79
35.02
53.98
-18.96
4924.00
Peak
-70.30
8.79
45.49
73.98
-28.49
7386.00
Avg
108
359
-79.84
13.59
40.75
53.98
-13.23
7386.00
Peak
108
359
-67.38
13.59
53.21
73.98
-20.77
12310.00
Avg
-84.03
21.90
44.87
53.98
-9.11
12310.00
Peak
-72.83
21.90
56.07
73.98
-17.91
Table 7-38. Radiated Measurements MIMO (26 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
3 Meters
2437MHz
06
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4874.00
Avg
-81.36
8.39
34.03
53.98
-19.95
4874.00
Peak
-71.43
8.39
43.96
73.98
-30.02
7311.00
Avg
149
219
-81.84
14.07
39.23
53.98
-14.75
7311.00
Peak
149
219
-71.16
14.07
49.91
73.98
-24.07
12185.00
Avg
-84.63
21.73
44.10
53.98
-9.88
12185.00
Peak
-73.17
21.73
55.56
73.98
-18.42
Table 7-39. Radiated Measurements MIMO with WCP (26 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 120 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2412MHz
01
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4824.00
Avg
-82.39
8.84
33.45
53.98
-20.53
4824.00
Peak
-71.00
8.84
44.84
73.98
-29.14
12060.00
Avg
-83.64
21.88
45.24
53.98
-8.74
12060.00
Peak
-72.08
21.88
56.80
73.98
-17.18
Table 7-40. Radiated Measurements MIMO (242 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2437MHz
06
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4874.00
Avg
-81.37
8.39
34.02
53.98
-19.96
4874.00
Peak
-71.39
8.39
44.00
73.98
-29.98
7311.00
Avg
-81.84
14.07
39.23
53.98
-14.75
7311.00
Peak
-69.84
14.07
51.23
73.98
-22.75
12185.00
Avg
-83.18
21.73
45.55
53.98
-8.43
12185.00
Peak
-72.30
21.73
56.43
73.98
-17.55
Table 7-41. Radiated Measurements MIMO (242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 121 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2462MHz
11
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4924.00
Avg
-81.64
8.79
34.15
53.98
-19.83
4924.00
Peak
-69.08
8.79
46.71
73.98
-27.27
7386.00
Avg
-81.87
13.59
38.72
53.98
-15.26
7386.00
Peak
-72.34
13.59
48.25
73.98
-25.73
12310.00
Avg
-85.38
21.90
43.52
53.98
-10.46
12310.00
Peak
-74.37
21.90
54.53
73.98
-19.45
Table 7-42. Radiated Measurements MIMO (242 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2437MHz
06
Frequency
[MHz]
Detector
Ant.
Pol.
[H/V]
Antenna
Height
[cm]
Turntable
Azimuth
[degree]
Analyzer
Level
[dBm]
AFCL
[dB/m]
Field
Strength
[dBμV/m]
Limit
[dBμV/m]
Margin
[dB]
4874.00
Avg
-79.68
8.39
35.71
53.98
-18.27
4874.00
Peak
-71.30
8.39
44.09
73.98
-29.89
7311.00
Avg
-81.39
14.07
39.68
53.98
-14.30
7311.00
Peak
-70.10
14.07
50.97
73.98
-23.01
12185.00
Avg
-84.08
21.73
44.65
53.98
-9.33
12185.00
Peak
-74.31
21.73
54.42
73.98
-19.56
Table 7-43. Radiated Measurements MIMO with WCP (242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 122 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
7.7.4 SISO Antenna-1 Radiated Restricted Band Edge Measurements
§15.205 §15.209; RSS-Gen [8.9]
The radiated restricted band edge measurements are measured with an EMI test receiver connected to the
receive antenna while the EUT is transmitting.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
53
3 Meters
2412MHz
Plot 7-161. Radiated Restricted Lower Band Edge
Measurement SISO ANT1 (Average – 106 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
Plot 7-162. Radiated Restricted Lower Band Edge
Measurement SISO ANT1 (Peak – 106 Tones)
802.11ax OFDMA
MCS0
54
3 Meters
2462MHz
11
Plot 7-163. Radiated Restricted Upper Band Edge
Measurement SISO ANT1 (Average – 106 Tones)
Plot 7-164. Radiated Restricted Upper Band Edge
Measurement SISO ANT1 (Peak – 106 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 123 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2412MHz
Plot 7-165. Radiated Restricted Lower Band Edge
Measurement SISO ANT1 (Average – 242 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
Plot 7-166. Radiated Restricted Lower Band Edge
Measurement SISO ANT1 (Peak – 242 Tones)
802.11ax OFDMA
MCS0
61
3 Meters
2417MHz
Plot 7-167. Radiated Restricted Lower Band Edge
Measurement SISO ANT1 (Average – 242 Tones)
Plot 7-168. Radiated Restricted Lower Band Edge
Measurement SISO ANT1 (Peak – 242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 124 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2457MHz
10
Plot 7-169. Radiated Restricted Upper Band Edge
Measurement SISO ANT1 (Average – 242 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
Plot 7-170. Radiated Restricted Upper Band Edge
Measurement SISO ANT1 (Peak – 242 Tones)
802.11ax OFDMA
MCS0
61
3 Meters
2462MHz
11
Plot 7-171. Radiated Restricted Upper Band Edge
Measurement SISO ANT1 (Average – 242 Tones)
Plot 7-172. Radiated Restricted Upper Band Edge
Measurement SISO ANT1 (Peak – 242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 125 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2462MHz
11
Plot 7-173. Radiated Restricted Band Edge
Measurement SISO ANT1 with WCP (Average – 242
Tones)
Plot 7-174. Radiated Restricted Band Edge
Measurement SISO ANT1 with WCP (Peak – 242
Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 126 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
7.7.5 SISO Antenna-2 Radiated Restricted Band Edge Measurements
§15.205 §15.209; RSS-Gen [8.9]
The radiated restricted band edge measurements are measured with an EMI test receiver connected to the
receive antenna while the EUT is transmitting.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
53
3 Meters
2412MHz
Plot 7-175. Radiated Restricted Lower Band Edge
Measurement SISO ANT2 (Average – 106 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
Plot 7-176. Radiated Restricted Lower Band Edge
Measurement SISO ANT2 (Peak – 106 Tones)
802.11ax OFDMA
MCS0
54
3 Meters
2462MHz
11
Plot 7-177. Radiated Restricted Upper Band Edge
Measurement SISO ANT2 (Average – 106 Tones)
Plot 7-178. Radiated Restricted Upper Band Edge
Measurement SISO ANT2 (Peak – 106 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 127 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2412MHz
Plot 7-179. Radiated Restricted Lower Band Edge
Measurement SISO ANT2 (Average – 242 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
Plot 7-180. Radiated Restricted Lower Band Edge
Measurement SISO ANT2 (Peak – 242 Tones)
802.11ax OFDMA
MCS0
61
3 Meters
2417MHz
Pl
ot 7-181. Radiated Restricted Lower Band Edge
Measurement SISO ANT2 (Average – 242 Tones)
Plot 7-182. Radiated Restricted Lower Band Edge
Measurement SISO ANT2 (Peak – 242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 128 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2457MHz
10
Plot 7-183. Radiated Restricted Upper Band Edge
Measurement SISO ANT2 (Average – 242 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
Plot 7-184. Radiated Restricted Upper Band Edge
Measurement SISO ANT2 (Peak – 242 Tones)
802.11ax OFDMA
MCS0
61
3 Meters
2462MHz
11
Plot 7-185. Radiated Restricted Upper Band Edge
Measurement SISO ANT2 (Average – 242 Tones)
Plot 7-186. Radiated Restricted Upper Band Edge
Measurement SISO ANT2 (Peak – 242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 129 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2462MHz
11
Plot 7-187. Radiated Restricted Band Edge
Measurement SISO ANT2 with WCP (Average – 242
Tones)
Plot 7-188. Radiated Restricted Band Edge
Measurement SISO ANT2 with WCP (Peak – 242
Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 130 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
7.7.6 MIMO Radiated Restricted Band Edge Measurements
§15.205 §15.209; RSS-Gen [8.9]
The radiated restricted band edge measurements are measured with an EMI test receiver connected to the
receive antenna while the EUT is transmitting.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
53
3 Meters
2412MHz
Plot 7-189. Radiated Restricted Lower Band Edge
Measurement MIMO (Average – 106 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
Plot 7-190. Radiated Restricted Lower Band Edge
Measurement MIMO (Peak – 106 Tones)
802.11ax OFDMA
MCS0
54
3 Meters
2462MHz
11
Plot 7-191. Radiated Restricted Upper Band Edge
Measurement MIMO (Average – 106 Tones)
Plot 7-192. Radiated Restricted Upper Band Edge
Measurement MIMO (Peak – 106 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 131 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2412MHz
Plot 7-193. Radiated Restricted Lower Band Edge
Measurement MIMO (Average – 242 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
Plot 7-194. Radiated Restricted Lower Band Edge
Measurement MIMO (Peak – 242 Tones)
802.11ax OFDMA
MCS0
61
3 Meters
2417MHz
Plot 7-195. Radiated Restricted Lower Band Edge
Measurement MIMO (Average – 242 Tones)
Plot 7-196. Radiated Restricted Lower Band Edge
Measurement MIMO (Peak – 242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 132 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2457MHz
10
Plot 7-197. Radiated Restricted Upper Band Edge
Measurement MIMO (Average – 242 Tones)
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
Plot 7-198. Radiated Restricted Upper Band Edge
Measurement MIMO (Peak – 242 Tones)
802.11ax OFDMA
MCS0
61
3 Meters
2462MHz
11
Plot 7-199. Radiated Restricted Upper Band Edge
Measurement MIMO (Average – 242 Tones)
Plot 7-200. Radiated Restricted Upper Band Edge
Measurement MIMO (Peak – 242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 133 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Worst Case Mode:
Worst Case Transfer Rate:
RU Index
Distance of Measurements:
Operating Frequency:
Channel:
802.11ax OFDMA
MCS0
61
3 Meters
2462MHz
11
Plot 7-201. Radiated Restricted Band Edge
Measurement MIMO with WCP (Average – 242
Tones)
Plot 7-202. Radiated Restricted Band Edge
Measurement MIMO with WCP (Peak – 242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 134 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
7.8
Radiated Spurious Emissions Measurements – Below 1GHz
§15.209; RSS-Gen [8.9]
Test Overview and Limit
All out of band radiated spurious emissions are measured with a spectrum analyzer connected to a receive
antenna while the EUT is operating at its maximum duty cycle, at maximum power, and at the appropriate
frequencies. All data rates and modes were investigated for radiated spurious emissions. Only the radiated
emissions of the configuration that produced the worst case emissions are reported in this section.
All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR
and Table 6 of RSS-Gen (8.10) must not exceed the limits shown in Table 7-44 per Section 15.209 and
RSS-Gen (8.9).
Frequency
Field Strength
[µV/m]
Measured Distance
[Meters]
0.009 – 0.490 MHz
0.490 – 1.705 MHz
1.705 – 30.00 MHz
30.00 – 88.00 MHz
88.00 – 216.0 MHz
216.0 – 960.0 MHz
Above 960.0 MHz
2400/F (kHz)
24000/F (kHz)
30
100
150
200
500
300
30
30
Table 7-44. Radiated Limits
Test Procedures Used
ANSI C63.10-2013
Test Settings
Quasi-Peak Field Strength Measurements
1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest
2. RBW = 120kHz (for emissions from 30MHz – 1GHz)
3. Detector = quasi-peak
4. Sweep time = auto couple
5. Trace mode = max hold
6. Trace was allowed to stabilize
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 135 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Test Setup
The EUT and measurement equipment were set up as shown in the diagrams below.
Figure 7-7. Radiated Test Setup < 30Mhz
Figure 7-8. Radiated Test Setup < 1GHz
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 136 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Test Notes
1. All emissions lying in restricted bands specified in §15.205 and RSS-Gen(8.10) are below the limit shown
in Table 7-44.
2. The broadband receive antenna is manipulated through vertical and horizontal polarizations during the
tests. The EUT is manipulated through three orthogonal planes.
3. This unit was tested with its standard battery.
4. The spectrum is investigated using a peak detector and final measurements are recorded using CISPR
quasi peak detector. The worst-case emissions are reported however emissions whose levels were not
within 20dB of the respective limits were not reported.
5. Emissions were measured at a 3 meter test distance.
6. Emissions are investigated while operating on the center channel of the mode, band, and modulation that
produced the worst case results during the transmitter spurious emissions testing.
7. No spurious emissions were detected within 20dB of the limit below 30MHz.
8. The results recorded using the broadband antenna is known to correlate with the results obtained by
using a tuned dipole with an acceptable degree of accuracy. The VSWR for the measurement antenna
was found to be less than 2:1.
9. The wide spectrum spurious emissions plots shown on the following pages are used only for the purpose
of emission identification. There were no emissions detected in the 30MHz – 1GHz frequency range, as
shown in the subsequent plots.
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 137 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
SISO Antenna-1 Radiated Spurious Emissions Measurements (Below 1GHz)
§15.209; RSS-Gen [8.9]
Plot 7-203. Radiated Spurious Plot below 1GHz SISO ANT1 (106 Tones)
Plot 7-204. Radiated Spurious Plot below 1GHz SISO ANT1 (242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 138 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
SISO Antenna-2 Radiated Spurious Emissions Measurements (Below 1GHz)
§15.209; RSS-Gen [8.9]
Plot 7-205. Radiated Spurious Plot below 1GHz SISO ANT2 (106 Tones)
Plot 7-206. Radiated Spurious Plot below 1GHz SISO ANT2 (242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 139 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
MIMO Radiated Spurious Emissions Measurements (Below 1GHz)
§15.209; RSS-Gen [8.9]
Plot 7-207. Radiated Spurious Plot below 1GHz MIMO (106 Tones)
Plot 7-208. Radiated Spurious Plot below 1GHz MIMO (242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 140 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
8.0
CONCLUSION
The data collected relate only the item(s) tested and show that the Samsung Portable Handset
FCC ID: A3LSMG975U is in compliance with Part 15 Subpart C (15.247) of the FCC Rules and RSS-247 of the
Innovation, Science and Economic Development Canada Rules.
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-05.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 141 of 141
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Download: SMG975U Multi-band GSM/EDGE/CDMA/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report WLAN OFDMA  2 Samsung Electronics Co Ltd
Mirror Download [FCC.gov]SMG975U Multi-band GSM/EDGE/CDMA/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report WLAN OFDMA  2 Samsung Electronics Co Ltd
Document ID4156008
Application IDZYKAjqfAmKRGt5Do+Ym5dg==
Document DescriptionWLAN OFDMA Test Report 2
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize365.73kB (4571673 bits)
Date Submitted2019-01-31 00:00:00
Date Available2019-02-01 00:00:00
Creation Date2019-01-31 11:59:22
Producing SoftwareAdobe PDF Library 19.10.96
Document Lastmod2019-01-31 12:06:17
Document TitleWLAN OFDMA Test Report 2
Document CreatorAcrobat PDFMaker 19 for Word

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Create Date                     : 2019:01:31 11:59:22-05:00
Creator                         : Acrobat PDFMaker 19 for Word
Modify Date                     : 2019:01:31 12:06:17-05:00
Tagged PDF                      : Yes
XMP Toolkit                     : Adobe XMP Core 5.6-c015 84.159810, 2016/09/10-02:41:30
Metadata Date                   : 2019:01:31 12:06:17-05:00
Creator Tool                    : Acrobat PDFMaker 19 for Word
Format                          : application/pdf
Document ID                     : uuid:5e06f97c-4682-4d26-9dad-ddf8906fe452
Instance ID                     : uuid:545967dc-afb9-450f-ad91-03f9c908154d
Producer                        : Adobe PDF Library 19.10.96
Page Count                      : 73
