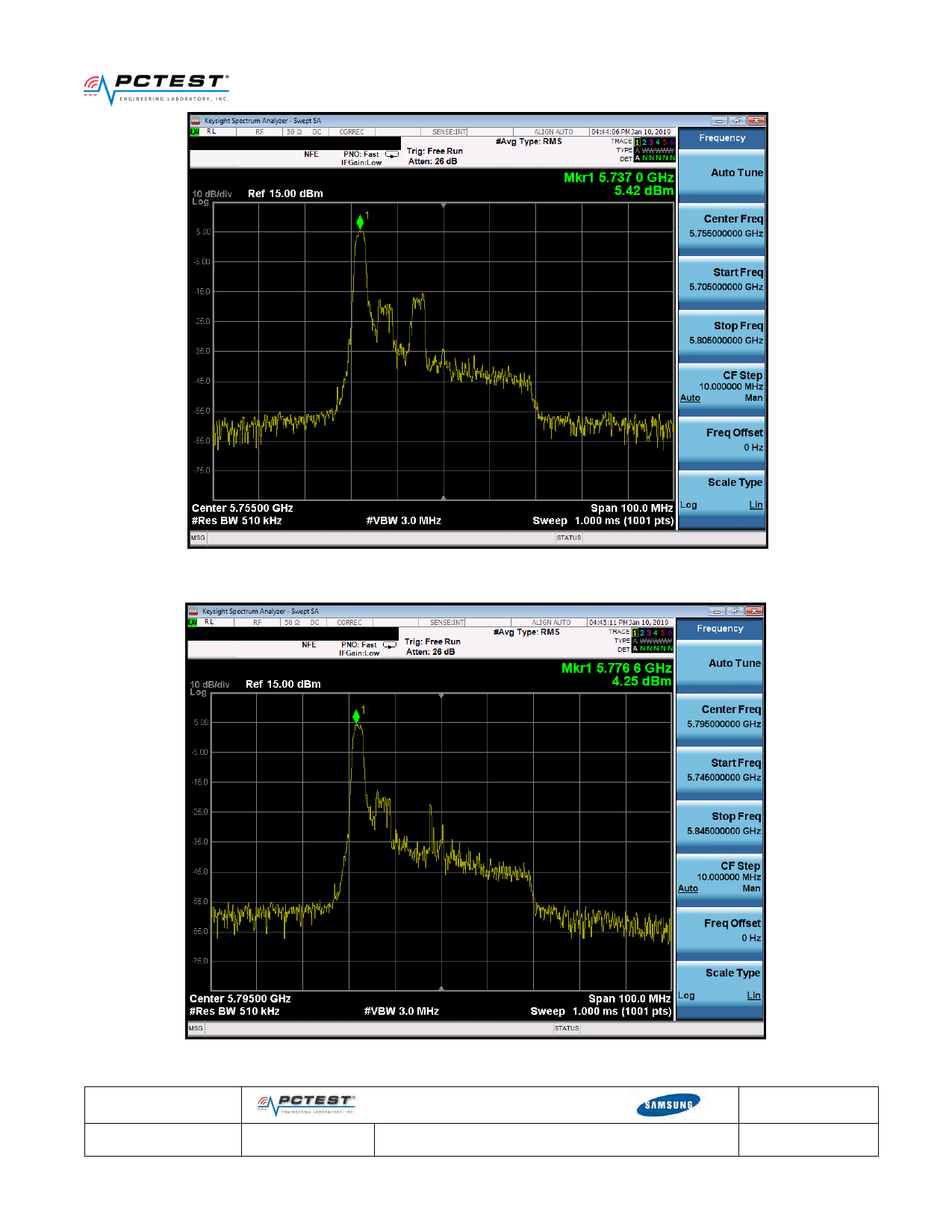

Plot 7-262. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 26 Tones (UNII Band 3) – Ch.
151)
Plot 7-263. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 26 Tones (UNII Band 3) – Ch.
159)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 196 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-264. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 26 Tones (UNII Band 3) – Ch.
155)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 197 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
SISO Antenna-2 Power Spectral Density Measurements (52 Tones)
5180
36
ax (20MHz)
52T
MCS0
Measured
Power Density
[dBm]
7.31
5200
40
ax (20MHz)
52T
MCS0
7.83
11.0
-3.17
Band 2C
Band 2A
Band 1
Frequency
Channel No. 802.11 Mode
[MHz]
Tones
Data Rate
[Mbps]
Max Power
Density
[dBm/MHz]
11.0
Margin
[dB]
-3.69
5240
48
ax (20MHz)
52T
MCS0
8.08
11.0
-2.92
5190
38
ax (40MHz)
52T
MCS0
7.73
11.0
-3.27
5230
46
ax (40MHz)
52T
MCS0
8.01
11.0
-2.99
5210
42
ax (80MHz)
52T
MCS0
6.86
11.0
-4.14
5260
52
ax (20MHz)
52T
MCS0
8.24
11.0
-2.76
5280
56
ax (20MHz)
52T
MCS0
8.71
11.0
-2.29
5320
64
ax (20MHz)
52T
MCS0
8.04
11.0
-2.96
5270
54
ax (40MHz)
52T
MCS0
8.01
11.0
-2.99
5310
62
ax (40MHz)
52T
MCS0
7.81
11.0
-3.19
5290
58
ax (80MHz)
52T
MCS0
6.61
11.0
-4.39
5500
100
ax (20MHz)
52T
MCS0
8.23
11.0
-2.77
5600
120
ax (20MHz)
52T
MCS0
8.16
11.0
-2.84
5720
144
ax (20MHz)
52T
MCS0
7.95
11.0
-3.05
5510
102
ax (40MHz)
52T
MCS0
7.99
11.0
-3.01
5590
118
ax (40MHz)
52T
MCS0
7.62
11.0
-3.38
5710
142
ax (40MHz)
52T
MCS0
7.53
11.0
-3.47
5530
106
ax (80MHz)
52T
MCS0
6.47
11.0
-4.53
5610
122
ax (80MHz)
52T
MCS0
6.31
11.0
-4.69
5690
138
ax (80MHz)
52T
MCS0
3.69
11.0
-7.31
Table 7-84. Bands 1, 2A, 2C Conducted Power Spectral Density Measurements SISO ANT2 (52 Tones)
Band 1
Frequency Channel
[MHz]
No.
802.11
Mode
Tones
Data Rate
[Mbps]
Measured
e.i.r.p. Power
Antenna Gain
Power Density
Density
[dBi]
[dBm]
[dBm/MHz]
7.31
-8.43
-1.12
ISED Max
e.i.r.p. Power
Density
10.0
Margin
[dB]
5180
36
ax (20MHz)
52T
MCS0
5200
40
ax (20MHz)
52T
MCS0
7.83
-8.34
-0.51
10.0
5240
48
ax (20MHz)
52T
MCS0
8.08
-7.99
0.09
10.0
-9.91
5190
38
ax (40MHz)
52T
MCS0
7.73
-8.43
-0.70
10.0
-10.70
5230
46
ax (40MHz)
52T
MCS0
8.01
-8.34
-0.33
10.0
-10.33
5210
42
ax (80MHz)
52T
MCS0
6.86
-7.99
-1.13
10.0
-11.13
-11.12
-10.51
Table 7-85. Bands 1 e.r.i.p Conducted Power Spectral Density Measurements (ISED 52 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 198 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-265. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 52 Tones (UNII Band 1) – Ch.
36)
Plot 7-266. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 52 Tones (UNII Band 1) – Ch.
40)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 199 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-267. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 52 Tones (UNII Band 1) – Ch.
48)
Plot 7-268. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 52 Tones (UNII Band 1) – Ch.
38)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 200 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-269. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 52 Tones (UNII Band 1) – Ch.
46)
Plot 7-270. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 52 Tones (UNII Band 1) – Ch.
42)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 201 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-271. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 52 Tones (UNII Band 2A) – Ch.
52)
Plot 7-272. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 52 Tones (UNII Band 2A) – Ch.
56)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 202 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-273. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 52 Tones (UNII Band 2A) – Ch.
64)
Plot 7-274. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 52 Tones (UNII Band 2A) – Ch.
54)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 203 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-275. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 52 Tones (UNII Band 2A) – Ch.
62)
Plot 7-276. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 52 Tones (UNII Band 2A) – Ch.
58)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 204 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-277. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 52 Tones (UNII Band 2C) – Ch.
100)
Plot 7-278. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 52 Tones (UNII Band 2C) – Ch.
120)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 205 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-279. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 52 Tones (UNII Band 2C) – Ch.
144)
Plot 7-280. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 52 Tones (UNII Band 2C) – Ch.
102)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 206 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-281. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 52 Tones (UNII Band 2C) – Ch.
118)
Plot 7-282. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 52 Tones (UNII Band 2C) – Ch.
142)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 207 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-283. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 52 Tones (UNII Band 2C) – Ch.
106)
Plot 7-284. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 52 Tones (UNII Band 2C) – Ch.
122)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 208 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-285. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 52 Tones (UNII Band 2C) – Ch.
138)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 209 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Band 3
Frequency Channel
[MHz]
No.
802.11
Mode
Tones
Data Rate
[Mbps]
Measured Max Permissible
Power Density Power Density
[dBm]
[dBm/500kHz]
6.52
30.0
Margin
[dB]
5745
149
ax (20MHz)
52T
MCS0
5785
157
ax (20MHz)
52T
MCS0
5.39
30.0
-24.61
5825
165
ax (20MHz)
52T
MCS0
4.21
30.0
-25.79
5755
151
ax (40MHz)
52T
MCS0
4.76
30.0
-25.24
5795
159
ax (40MHz)
52T
MCS0
0.52
30.0
-29.48
5775
155
ax (80MHz)
52T
MCS0
6.35
30.0
-23.65
-23.48
Table 7-86. Band 3 Conducted Power Spectral Density Measurements SISO ANT2 (52 Tones)
Plot 7-286. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 52 Tones (UNII Band 3) – Ch.
149)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 210 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-287. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 52 Tones (UNII Band 3) – Ch.
157)
Plot 7-288. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 52 Tones (UNII Band 3) – Ch.
165)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 211 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-289. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 52 Tones (UNII Band 3) – Ch.
151)
Plot 7-290. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 52 Tones (UNII Band 3) – Ch.
159)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 212 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-291. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 52 Tones (UNII Band 3) – Ch.
155)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 213 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
SISO Antenna-2 Power Spectral Density Measurements (106 Tones)
5180
36
ax (20MHz)
106T
MCS0
Measured
Power Density
[dBm]
6.33
5200
40
ax (20MHz)
106T
MCS0
6.97
11.0
-4.03
5240
48
ax (20MHz)
106T
MCS0
7.14
11.0
-3.86
5190
38
ax (40MHz)
106T
MCS0
4.00
11.0
-7.00
5230
46
ax (40MHz)
106T
MCS0
5.82
11.0
-5.18
5210
42
ax (80MHz)
106T
MCS0
4.67
11.0
-6.33
5260
52
ax (20MHz)
106T
MCS0
7.35
11.0
-3.65
5280
56
ax (20MHz)
106T
MCS0
7.35
11.0
-3.65
5320
64
ax (20MHz)
106T
MCS0
7.37
11.0
-3.63
5270
54
ax (40MHz)
106T
MCS0
5.49
11.0
-5.51
5310
62
ax (40MHz)
106T
MCS0
5.06
11.0
-5.94
5290
58
ax (80MHz)
106T
MCS0
4.37
11.0
-6.63
5500
100
ax (20MHz)
106T
MCS0
7.50
11.0
-3.50
5600
120
ax (20MHz)
106T
MCS0
6.99
11.0
-4.01
5720
144
ax (20MHz)
106T
MCS0
7.21
11.0
-3.79
5510
102
ax (40MHz)
106T
MCS0
5.50
11.0
-5.50
5550
118
ax (40MHz)
106T
MCS0
5.33
11.0
-5.67
5710
142
ax (40MHz)
106T
MCS0
5.10
11.0
-5.90
5530
106
ax (80MHz)
106T
MCS0
4.92
11.0
-6.08
5610
122
ax (80MHz)
106T
MCS0
4.50
11.0
-6.50
5690
138
ax (80MHz)
106T
MCS0
1.20
11.0
-9.80
Band 2C
Band 2A
Band 1
Frequency Channel
No.
[MHz]
802.11
Mode
Tones
Data Rate
[Mbps]
Max Power
Density
[dBm/MHz]
11.0
Margin
[dB]
-4.67
Band 1
Table 7-87. Bands 1, 2A, 2C Conducted Power Spectral Density Measurements SISO ANT2 (106 Tones)
Measured
e.i.r.p. Power
Data Rate
Antenna Gain
Power Density
Density
[Mbps]
[dBi]
[dBm]
[dBm/MHz]
MCS0
6.33
-8.43
-2.10
ISED Max
e.i.r.p. Power
Density
10.0
Frequency
[MHz]
Channel
No.
802.11 Mode
Tones
Margin
[dB]
5180
36
ax (20MHz)
106T
5200
40
ax (20MHz)
106T
MCS0
6.97
-8.34
-1.37
10.0
-11.37
5240
48
ax (20MHz)
106T
MCS0
7.14
-7.99
-0.85
10.0
-10.85
5190
38
ax (40MHz)
106T
MCS0
4.00
-8.43
-4.43
10.0
-14.43
5230
46
ax (40MHz)
106T
MCS0
5.82
-8.34
-2.52
10.0
-12.52
5210
42
ax (80MHz)
106T
MCS0
4.67
-7.99
-3.32
10.0
-13.32
-12.10
Table 7-88. Bands 1 e.r.i.p Conducted Power Spectral Density Measurements (ISED 106 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 214 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-292. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 106 Tones (UNII Band 1) – Ch.
36)
Plot 7-293. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 106 Tones (UNII Band 1) – Ch.
40)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 215 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-294. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 106 Tones (UNII Band 1) – Ch.
48)
Plot 7-295. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 106 Tones (UNII Band 1) – Ch.
38)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 216 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-296. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 106 Tones (UNII Band 1) – Ch.
46)
Plot 7-297. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 106 Tones (UNII Band 1) – Ch.
42)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 217 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-298. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 106 Tones (UNII Band 2A) – Ch.
52)
Plot 7-299. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 106 Tones (UNII Band 2A) – Ch.
56)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 218 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-300. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 106 Tones (UNII Band 2A) – Ch.
64)
Plot 7-301. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 106 Tones (UNII Band 2A) – Ch.
54)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 219 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-302. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 106 Tones (UNII Band 2A) – Ch.
62)
Plot 7-303. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 106 Tones (UNII Band 2A) – Ch.
58)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 220 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-304. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 106 Tones (UNII Band 2C) – Ch.
100)
Plot 7-305. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 106 Tones (UNII Band 2C) – Ch.
120)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 221 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-306. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 106 Tones (UNII Band 2C) – Ch.
144)
Plot 7-307. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 106 Tones (UNII Band 2C) – Ch.
102)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 222 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-308. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 106 Tones (UNII Band 2C) – Ch.
118)
Plot 7-309. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 106 Tones (UNII Band 2C) – Ch.
142)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 223 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-310. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 106 Tones (UNII Band 2C) – Ch.
106)
Plot 7-311. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 106 Tones (UNII Band 2C) – Ch.
122)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 224 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-312. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 106 Tones (UNII Band 2C) – Ch.
138)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 225 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Band 3
Frequency Channel
802.11 Mode
[MHz]
No.
Tones
Measured Max Permissible
Data Rate
Power Density Power Density
[Mbps]
[dBm]
[dBm/500kHz]
MCS0
4.26
30.0
Margin
[dB]
5745
149
ax (20MHz)
106T
-25.74
5785
157
ax (20MHz)
106T
MCS0
3.82
30.0
-26.18
5825
165
ax (20MHz)
106T
MCS0
3.52
30.0
-26.48
5755
151
ax (40MHz)
106T
MCS0
2.78
30.0
-27.22
5795
159
ax (40MHz)
106T
MCS0
1.75
30.0
-28.25
5775
155
ax (80MHz)
106T
MCS0
4.45
30.0
-25.55
Table 7-89. Band 3 Conducted Power Spectral Density Measurements SISO ANT2 (106 Tones)
Plot 7-313. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 106 Tones (UNII Band 3) – Ch.
149)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 226 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-314. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 106 Tones (UNII Band 3) – Ch.
157)
Plot 7-315. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 106 Tones (UNII Band 3) – Ch.
165)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 227 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-316. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 106 Tones (UNII Band 3) – Ch.
151)
Plot 7-317. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 106 Tones (UNII Band 3) – Ch.
159)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 228 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-318. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 106 Tones (UNII Band 3) – Ch.
155)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 229 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
SISO Antenna-2 Power Spectral Density Measurements (242 Tones)
Band 2C
Band 2A
Band 1
Frequency
[MHz]
Channel
802.11 Mode
No.
Tones
Measured
Data Rate
Power Density
[Mbps]
[dBm]
MCS0
4.43
Max Power
Density
[dBm/MHz]
11.0
Margin
[dB]
5180
36
ax (20MHz)
242T
5200
40
ax (20MHz)
242T
MCS0
4.31
11.0
-6.69
5240
48
ax (20MHz)
242T
MCS0
4.95
11.0
-6.05
5190
38
ax (40MHz)
242T
MCS0
3.07
11.0
-7.93
5230
46
ax (40MHz)
242T
MCS0
3.93
11.0
-7.07
5210
42
ax (80MHz)
242T
MCS0
1.88
11.0
-9.12
5260
52
ax (20MHz)
242T
MCS0
4.89
11.0
-6.11
5280
56
ax (20MHz)
242T
MCS0
5.12
11.0
-5.88
5320
64
ax (20MHz)
242T
MCS0
5.21
11.0
-5.79
5270
54
ax (40MHz)
242T
MCS0
3.30
11.0
-7.70
5310
62
ax (40MHz)
242T
MCS0
3.62
11.0
-7.38
5290
58
ax (80MHz)
242T
MCS0
1.93
11.0
-9.07
5500
100
ax (20MHz)
242T
MCS0
4.82
11.0
-6.18
5600
120
ax (20MHz)
242T
MCS0
4.27
11.0
-6.73
5720
144
ax (20MHz)
242T
MCS0
4.52
11.0
-6.48
5510
102
ax (40MHz)
242T
MCS0
3.33
11.0
-7.67
5590
118
ax (40MHz)
242T
MCS0
3.05
11.0
-7.95
5710
142
ax (40MHz)
242T
MCS0
2.74
11.0
-8.26
5530
106
ax (80MHz)
242T
MCS0
2.40
11.0
-8.60
5610
122
ax (80MHz)
242T
MCS0
2.22
11.0
-8.78
5690
138
ax (80MHz)
242T
MCS0
-0.05
11.0
-11.05
-6.57
Table 7-90. Bands 1, 2A, 2C Conducted Power Spectral Density Measurements SISO ANT2 (242 Tones)
Band 1
Frequency Channel
802.11 Mode
[MHz]
No.
Tones
Data Rate
[Mbps]
Measured
e.i.r.p. Power
Antenna Gain
Power Density
Density
[dBi]
[dBm]
[dBm/MHz]
4.43
-8.43
-4.00
ISED Max
e.i.r.p. Power
Density
10.0
Margin
[dB]
5180
36
ax (20MHz)
242T
MCS0
5200
40
ax (20MHz)
242T
MCS0
4.31
-8.34
-4.03
10.0
-14.00
-14.03
5240
48
ax (20MHz)
242T
MCS0
4.95
-7.99
-3.04
10.0
-13.04
5190
38
ax (40MHz)
242T
MCS0
3.07
-8.43
-5.36
10.0
-15.36
5230
46
ax (40MHz)
242T
MCS0
3.93
-8.34
-4.41
10.0
-14.41
5210
42
ax (80MHz)
242T
MCS0
1.88
-7.99
-6.11
10.0
-16.11
Table 7-91. Bands 1 e.r.i.p Conducted Power Spectral Density Measurements (ISED 242 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 230 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-319. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 242 Tones (UNII Band 1) – Ch.
36)
Plot 7-320. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 242 Tones (UNII Band 1) – Ch.
40)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 231 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-321. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 242 Tones (UNII Band 1) – Ch.
48)
Plot 7-322. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 242 Tones (UNII Band 1) – Ch.
38)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 232 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-323. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 242 Tones (UNII Band 1) – Ch.
46)
Plot 7-324. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 242 Tones (UNII Band 1) – Ch.
42)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 233 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-325. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 242 Tones (UNII Band 2A) – Ch.
52)
Plot 7-326. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 242 Tones (UNII Band 2A) – Ch.
56)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 234 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-327. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 242 Tones (UNII Band 2A) – Ch.
64)
Plot 7-328. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 242 Tones (UNII Band 2A) – Ch.
54)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 235 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-329. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 242 Tones (UNII Band 2A) – Ch.
62)
Plot 7-330. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 242 Tones (UNII Band 2A) – Ch.
58)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 236 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-331. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 242 Tones (UNII Band 2C) – Ch.
100)
Plot 7-332. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 242 Tones (UNII Band 2C) – Ch.
120)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 237 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-333. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 242 Tones (UNII Band 2C) – Ch.
144)
Plot 7-334. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 242 Tones (UNII Band 2C) – Ch.
102)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 238 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-335. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 242 Tones (UNII Band 2C) – Ch.
118)
Plot 7-336. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 242 Tones (UNII Band 2C) – Ch.
142)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 239 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-337. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 242 Tones (UNII Band 2C) – Ch.
106)
Plot 7-338. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 242 Tones (UNII Band 2C) – Ch.
122)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 240 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-339. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 242 Tones (UNII Band 2C) – Ch.
138)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 241 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Band 3
Frequency Channel
[MHz]
No.
802.11
Mode
Tones
Data Rate
[Mbps]
5745
149
ax (20MHz)
242T
MCS0
5785
157
ax (20MHz)
242T
MCS0
5825
165
ax (20MHz)
242T
5755
151
ax (40MHz)
242T
5795
159
ax (40MHz)
5775
155
ax (80MHz)
Measured Max Permissible
Power Density Power Density
[dBm/500kHz]
[dBm]
2.13
30.0
Margin
[dB]
-27.87
2.01
30.0
-27.99
MCS0
1.50
30.0
-28.50
MCS0
-0.34
30.0
-30.34
242T
MCS0
-11.51
30.0
-41.51
242T
MCS0
1.29
30.0
-28.71
Table 7-92. Band 3 Conducted Power Spectral Density Measurements SISO ANT2 (242 Tones)
Plot 7-340. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 242 Tones (UNII Band 3) – Ch.
149)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 242 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-341. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 242 Tones (UNII Band 3) – Ch.
157)
Plot 7-342. Power Spectral Density Plot SISO ANT2 (20MHz BW 802.11ax – 242 Tones (UNII Band 3) – Ch.
165)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 243 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-343. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 242 Tones (UNII Band 3) – Ch.
151)
Plot 7-344. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 242 Tones (UNII Band 3) – Ch.
159)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 244 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-345. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 242 Tones (UNII Band 3) – Ch.
155)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 245 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
SISO Antenna-2 Power Spectral Density Measurements (484 Tones)
Band 2C
Band 2A Band 1
Frequency Channel
802.11 Mode
[MHz]
No.
Tones
Measured
Data Rate
Power Density
[Mbps]
[dBm]
MCS0
-11.02
5190
38
ax (40MHz)
484T
5230
46
ax (40MHz)
484T
MCS0
5210
42
ax (80MHz)
484T
5270
54
ax (40MHz)
484T
5310
62
ax (40MHz)
5290
58
ax (80MHz)
5510
102
5590
118
5710
Max Power
Density
[dBm/MHz]
11.0
Margin
[dB]
-22.02
-10.91
11.0
-21.91
MCS0
0.26
11.0
-10.74
MCS0
-11.10
11.0
-22.10
484T
MCS0
-11.39
11.0
-22.39
484T
MCS0
-1.13
11.0
-12.13
ax (40MHz)
484T
MCS0
-11.00
11.0
-22.00
ax (40MHz)
484T
MCS0
-11.59
11.0
-22.59
142
ax (40MHz)
484T
MCS0
-11.51
11.0
-22.51
5530
106
ax (80MHz)
484T
MCS0
-0.41
11.0
-11.41
5610
122
ax (80MHz)
484T
MCS0
0.46
11.0
-10.54
5690
138
ax (80MHz)
484T
MCS0
-3.75
11.0
-14.75
Band 1
Table 7-93. Bands 1, 2A, 2C Conducted Power Spectral Density Measurements SISO ANT2 (484 Tones)
e.i.r.p. Power
Measured
Frequency Channel
Antenna Gain
802.11 Mode Data Rate [Mbps] Power Density
Density
[MHz]
No.
[dBi]
[dBm/MHz]
[dBm]
n (40MHz)
13.5/15 (MCS0)
-11.02
-8.43
-19.45
5190
38
ISED Max
e.i.r.p. Power
Density
10.0
Margin
[dB]
-29.45
5230
46
n (40MHz)
13.5/15 (MCS0)
-10.91
-8.34
-19.25
10.0
-29.25
5210
42
ac (80MHz)
29.3/32.5 (MCS0)
0.26
-7.99
-7.73
10.0
-17.73
Table 7-94. Bands 1 e.r.i.p Conducted Power Spectral Density Measurements (ISED 484 Tones)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 246 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-346. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 484 Tones (UNII Band 1) – Ch.
38)
Plot 7-347. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 484 Tones (UNII Band 1) – Ch.
46)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 247 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-348. Power Spectral Density Plot SISO ANT2 (80MHz BW 802.11ax – 484 Tones (UNII Band 1) – Ch.
42)
Plot 7-349. Power Spectral Density Plot SISO ANT2 (40MHz BW 802.11ax – 484 Tones (UNII Band 2A) – Ch.
54)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-06.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 248 of 516
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Download: SMG975U Multi-band GSM/EDGE/CDMA/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report UNII OFDMA  4 Samsung Electronics Co Ltd
Mirror Download [FCC.gov]SMG975U Multi-band GSM/EDGE/CDMA/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report UNII OFDMA  4 Samsung Electronics Co Ltd
Document ID4156012
Application IDRcF/EvmEMNc4kHPr8aPMmg==
Document DescriptionUNII OFDMA Test Report 4
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize449.67kB (5620877 bits)
Date Submitted2019-01-31 00:00:00
Date Available2019-02-01 00:00:00
Creation Date2019-01-31 12:01:14
Producing SoftwareAdobe PDF Library 19.10.96
Document Lastmod2019-01-31 12:03:32
Document TitleUNII OFDMA Test Report 4
Document CreatorAcrobat PDFMaker 19 for Word

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Create Date                     : 2019:01:31 12:01:14-05:00
Creator                         : Acrobat PDFMaker 19 for Word
Modify Date                     : 2019:01:31 12:03:32-05:00
Has XFA                         : No
Tagged PDF                      : Yes
XMP Toolkit                     : Adobe XMP Core 5.6-c015 84.159810, 2016/09/10-02:41:30
Metadata Date                   : 2019:01:31 12:03:32-05:00
Creator Tool                    : Acrobat PDFMaker 19 for Word
Format                          : application/pdf
Document ID                     : uuid:9b74a9ae-0b2d-48ea-b2a6-90bbb2000d13
Instance ID                     : uuid:6fd280f8-6fe3-4b76-a209-3a80e5b1ce1d
Producer                        : Adobe PDF Library 19.10.96
Page Count                      : 53
