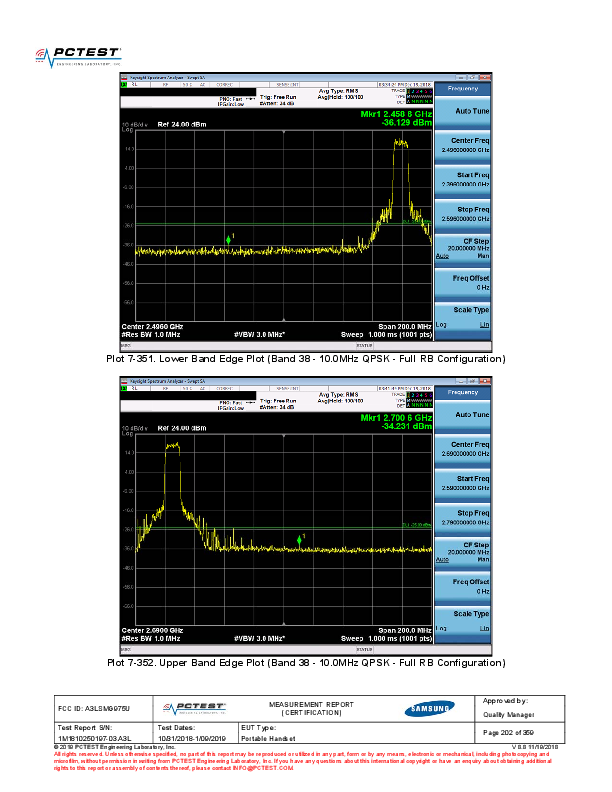

Plot 7-351. Lower Band Edge Plot (Band 38 - 10.0MHz QPSK - Full RB Configuration)
Plot 7-352. Upper Band Edge Plot (Band 38 - 10.0MHz QPSK - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 202 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-353. Lower Band Edge Plot (Band 38 - 15.0MHz QPSK - Full RB Configuration)
Plot 7-354. Upper Band Edge Plot (Band 38 - 15.0MHz QPSK - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 203 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-355. Lower Band Edge Plot (Band 38 - 20.0MHz QPSK - Full RB Configuration)
Plot 7-356. Upper Band Edge Plot (Band 38 - 20.0MHz QPSK - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 204 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Band 41
Plot 7-357. Lower ACP Plot at 2496 MHz (Band 41 - 5.0MHz QPSK - Full RB Configuration)
Plot 7-358. Upper ACP Plot (Band 41 - 5.0MHz QPSK - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 205 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-359. Lower ACP Plot at 2496 MHz (Band 41 - 10.0MHz QPSK - Full RB Configuration)
Plot 7-360. Upper ACP Plot (Band 41 - 10.0MHz QPSK - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 206 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-361. Lower ACP Plot at 2496 MHz (Band 41 - 15.0MHz QPSK - Full RB Configuration)
Plot 7-362. Upper ACP Plot (Band 41 - 15.0MHz QPSK - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 207 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-363. Lower ACP Plot at 2496 MHz (Band 41 - 20.0MHz QPSK - Full RB Configuration)
Plot 7-364. Upper ACP Plot (Band 41 - 20.0MHz QPSK - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 208 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
7.5
Peak-Average Ratio
Test Overview
A peak to average ratio measurement is performed at the conducted port of the EUT. The spectrum analyzers
Complementary Cumulative Distribution Function (CCDF) measurement profile is used to determine the largest
deviation between the average and the peak power of the EUT in a given bandwidth. The CCDF curve shows how
much time the peak waveform spends at or above a given average power level. The percent of time the signal
spends at or above the level defines the probability for that particular power level.
Test Procedure Used
KDB 971168 D01 v03r01 – Section 5.7.1
Test Settings
1. The signal analyzer’s CCDF measurement profile is enabled
2. Frequency = carrier center frequency
3. Measurement BW ≥ OBW or specified reference bandwidth
4. The signal analyzer was set to collect one million samples to generate the CCDF curve
5. The measurement interval was set depending on the type of signal analyzed. For continuous signals (>98%
duty cycle), the measurement interval was set to 1ms. For burst transmissions, the spectrum analyzer is
set to use an internal “RF Burst” trigger that is synced with an incoming pulse and the measurement interval
is set to less than the duration of the “on time” of one burst to ensure that energy is only captured during a
time in which the transmitter is operating at maximum power
Test Setup
The EUT and measurement equipment were set up as shown in the diagram below.
Figure 7-4. Test Instrument & Measurement Setup
Test Notes
None.
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 209 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Band 66/4
Plot 7-365. PAR Plot (Band 66/4 - 1.4MHz QPSK - Full RB Configuration)
Plot 7-366. PAR Plot (Band 66/4 - 1.4MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 210 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-367. PAR Plot (Band 66/4 - 1.4MHz 64-QAM - Full RB Configuration)
Plot 7-368. PAR Plot (Band 66/4 - 1.4MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 211 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-369. PAR Plot (Band 66/4 - 3.0MHz QPSK - Full RB Configuration)
Plot 7-370. PAR Plot (Band 66/4 - 3.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 212 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-371. PAR Plot (Band 66/4 - 3.0MHz 64-QAM - Full RB Configuration)
Plot 7-372. PAR Plot (Band 66/4 - 3.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 213 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-373. PAR Plot (Band 66/4 - 5.0MHz QPSK - Full RB Configuration)
Plot 7-374. PAR Plot (Band 66/4 - 5.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 214 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-375. PAR Plot (Band 66/4 - 5.0MHz 64-QAM - Full RB Configuration)
Plot 7-376. PAR Plot (Band 66/4 - 5.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 215 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-377. PAR Plot (Band 66/4 - 10.0MHz QPSK - Full RB Configuration)
Plot 7-378. PAR Plot (Band 66/4 - 10.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 216 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-379. PAR Plot (Band 66/4 - 10.0MHz 64-QAM - Full RB Configuration)
Plot 7-380. PAR Plot (Band 66/4 - 10.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 217 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-381. PAR Plot (Band 66/4 - 15.0MHz QPSK - Full RB Configuration)
Plot 7-382. PAR Plot (Band 66/4 - 15.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 218 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-383. PAR Plot (Band 66/4 - 15.0MHz 64-QAM - Full RB Configuration)
Plot 7-384. PAR Plot (Band 66/4 - 15.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 219 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-385. PAR Plot (Band 66/4 - 20.0MHz QPSK - Full RB Configuration)
Plot 7-386. PAR Plot (Band 66/4 - 20.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 220 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-387. PAR Plot (Band 66/4 - 20.0MHz 64-QAM - Full RB Configuration)
Plot 7-388. PAR Plot (Band 66/4 - 20.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 221 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Band 25/2
Plot 7-389. PAR Plot (Band 25/2 - 1.4MHz QPSK - Full RB Configuration)
Plot 7-390. PAR Plot (Band 25/2 - 1.4MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 222 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-391. PAR Plot (Band 25/2 - 1.4MHz 64-QAM - Full RB Configuration)
Plot 7-392. PAR Plot (Band 25/2 - 1.4MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 223 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-393. PAR Plot (Band 25/2 - 3.0MHz QPSK - Full RB Configuration)
Plot 7-394. PAR Plot (Band 25/2 - 3.0MHz 16-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 224 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Plot 7-395. PAR Plot (Band 25/2 - 3.0MHz 64-QAM - Full RB Configuration)
Plot 7-396. PAR Plot (Band 25/2 - 3.0MHz 256-QAM - Full RB Configuration)
MEASUREMENT REPORT
(CERTIFICATION)
FCC ID: A3LSMG975U
Test Report S/N:
Test Dates:
EUT Type:
1M1810250197-03.A3L
10/31/2018-1/09/2019
Portable Handset
Approved by:
Quality Manager
Page 225 of 359
© 2019 PCTEST Engineering Laboratory, Inc.
V 8.8 11/19/2018
All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from PCTEST Engineering Laboratory, Inc. If you have any questions about this international copyright or have an enquiry about obtaining additional
rights to this report or assembly of contents thereof, please contact INFO@PCTEST.COM.
Download: SMG975U Multi-band GSM/EDGE/CDMA/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report LTE  8 Samsung Electronics Co Ltd
Mirror Download [FCC.gov]SMG975U Multi-band GSM/EDGE/CDMA/UMTS/LTE Phone with Bluetooth, WLAN, RFID and ANT+ Test Report LTE  8 Samsung Electronics Co Ltd
Document ID4161708
Application IDQ773NTe86PRJAWYrvzhIrQ==
Document DescriptionLTE Test Report 8
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeYes
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize486.41kB (6080162 bits)
Date Submitted2019-01-28 00:00:00
Date Available2019-02-01 00:00:00
Creation Date2019-02-07 12:16:37
Producing SoftwareAcrobat Distiller 15.0 (Windows)
Document Lastmod2019-02-07 12:22:07
Document TitleLTE Test Report 8
Document CreatorPScript5.dll Version 5.2.2

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Create Date                     : 2019:02:07 12:16:37-05:00
Creator                         : PScript5.dll Version 5.2.2
Modify Date                     : 2019:02:07 12:22:07-05:00
Has XFA                         : No
XMP Toolkit                     : Adobe XMP Core 5.6-c015 84.159810, 2016/09/10-02:41:30
Metadata Date                   : 2019:02:07 12:22:07-05:00
Creator Tool                    : PScript5.dll Version 5.2.2
Format                          : application/pdf
Document ID                     : uuid:47e801e3-8570-42ef-aafe-36338f578d9c
Instance ID                     : uuid:eaf7ea05-8a3d-4f3f-b493-fc1357d440f7
Producer                        : Acrobat Distiller 15.0 (Windows)
Page Count                      : 24
